9025

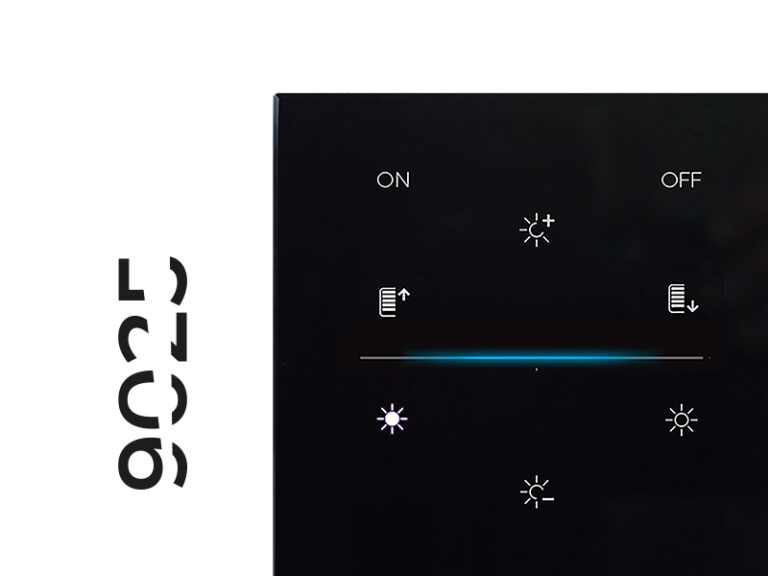

9025 KNX is a series of capacitive keypads, a dedicated range for climate control, and a technological system for building management.
We have specialized the different functions of our products to meet the needs of the hospitality sector, complementing the range with aesthetic elements such as door-side and bedside panels, as well as functional features including presence control, multi-room climate management and flexible, intuitive interfaces for rooms that can be interconnected.

Download the Brochures

Contact

Key Features

Flexible

Perfectly suited for residential and hospitality settings, with configurable functions for every environment

Simple

Installation on a 2-module wall box with immediate configuration through interchangeable icons

Easily integrated

KNX protocol compatible and designed to fit the main international standards (Italian, German and UK)

Intuitive

Capacitive interface with RGB LED feedback and clear logic functions such as “Do Not Disturb” and “Make Up Room”

Versatile

One device for controlling lighting, shutters, scenes, HVAC, climate regulation and status indicators

Versions

RT07A01KNX-X

9025 – Capacitive KNX Thermostat – LINE SERIES

RH07A01KNX-X

9025 – Capacitive KNX Thermostat/Humidistat – LINE SERIES

CS10A01KNX-X

9025 KNX Capacitive Switch – LINE SERIES

CS10A01KNX-X-3M

9025 Capacitive Push Button KNX – LINE SERIES – 3 Modules

CS10A01KNX-X

9025 KNX 3-Module Capacitive Push Button – Standard Range

RT07A01KNX-X

9025 – Capacitive KNX Thermostat – 3 Modules

HC06A01KNX-X

9025 Multisensor Controller (Humidity – Temperature)

CS10A01KNX-X-3M

9025 Capacitive Push Button KNX – 3 Modules RGB Range

RH07A01KNX-X

9025 – KNX Capacitive Thermostat/Humidistat – 3 Modules

CS10A01KNX-X

KNX Capacitive Button + Thermostat

CS10A01KNX-X

KNX Capacitive Button + Thermostat

KP10C02KNX-X

9025 Access Control – Numeric KEYPAD – KNX SECURE

TR00C02KNX-X

9025 3-Button Transponder Reader + BLE BEACON + KNX SECURE

TR00C01KNX

9025 KNX Out of Door Transponder Reader

TR00C01KNX-X-3M

9025 KNX Transponder Reader – 3 Modules

TR00C02KNX-X-3M

9025 KNX Transponder Reader – 3 Modules – BLE BEACON + KNX SECURE

OUTRC02KNX

9025 Outdoor KNX Transponder Reader

9025GL10C0x-B2x

9025 Custom Bedside Frame – 2 Sockets

TH00C01KNX-X

9025 KNX Transponder Holder

TH00C01KNX-X-3M

9025 KNX Transponder Holder 3 Modules

TH00C02KNX-X-3M

9025 3-Button Transponder Holder – 3 Modules – BLE BEACON + KNX SECURE

TH00C02KNX-X

9025 3-Button Transponder Reader – BLE BEACON + KNX SECURE

KP10C02KNX-X-3M

9025 KNX 3-Module Numeric KEYPAD

OUTKC02KNX

9025 KNX Numeric KEYPAD for Outdoor Use

TS01D01ACC-X

Temperature Probe 9025

TS01D01ACC-X-3M

9025 Temperature Probe – 3 Modules

EEBP20079000x-x

Cover Frames 9025 2 modules

PS45B01GL-X

Cover plate 9025 2 modules – Glass

EEEP30079000x-x

Cover Frames 9025 3 modules

PS45B03GL-X

Cover plate 9025 3 modules – Glass

EEQP40079000x-x

Cover frames 9025 4 modules

PS45B04GL-X

Cover plate 9025 4 modules – Glass

Technical highlights & Configuration

Configuration & Compatibility

Glass covers available in Standard, RGB and Custom versions, with white or black finish

Panels for residential and hotel applications, with customizable backlit icons available

Installation on a 2-module wall box, compatible with national and international standards

Technical Highlights

Capacitive touch buttons with freely configurable functions (2–10 channels)

Front RGB LED bar for status indication

Integrated thermostat and temperature sensor with additional digital/analog input

Versions available with humidistat and optional second NTC sensor

Make it yours

Eelectron creates architectural and design elements designed to leave a chromatic and graphic mark on the space.
Bring your OL-U and 9025 range to life with custom icons, start designing in the portal today.

Set up your device

Resources & Download

Download All

Why choose 9025

One device, endless possibilities

Manages lighting, shutters, scenes, HVAC, climate control and signalling — reducing the number of components and simplifying the installation.

Elegant and fully customizable design

Glass covers available in Standard, RGB or Custom versions with interchangeable, backlit icons — ideal for hotels and premium residential environments.

Immediate and intuitive user experience

Capacitive touch buttons with RGB LED feedback and clear functions such as “Do Not Disturb” and “Make Up Room”, ideal even for non-technical guests.

Made in Italy reliability on KNX standard

Certified product, installable on a 2-module wall box and integrable into any existing or new KNX system.
