The 9025 KNX® numeric keypad dedicated to access control management consists of 10-channel capacitive buttons and can be configured with ETS® to communicate with the KNX Data Secure protocol.
Contact our team to get all your questions answered

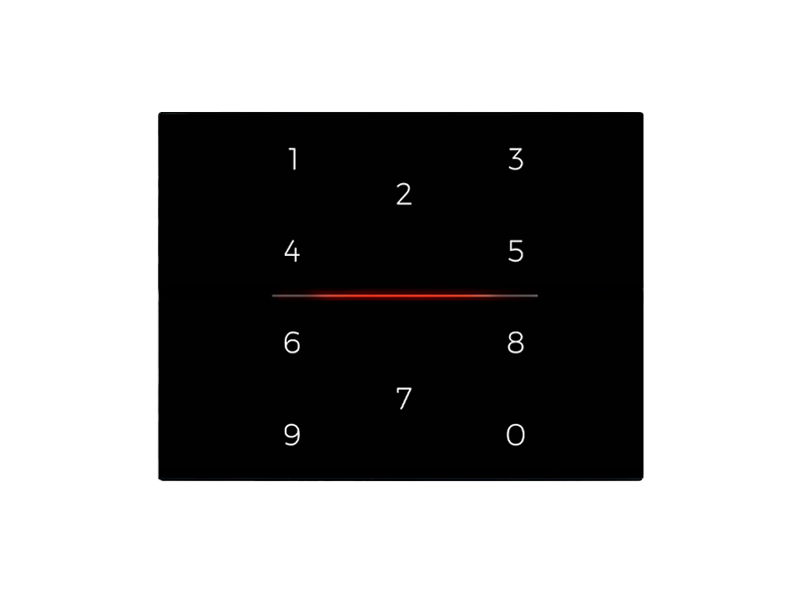

The product can be installed with glass covers, white or black, which show the numbers from 0 to 9 backlit. The device includes a 2-stage thermostat with integrated PI controller for driving heating and cooling appliances, valves, 2 and 4-pipe fan coils, etc. The device has a temperature probe on board and is equipped with an input on the rear side that can be configured as digital or analog; in fact, it is possible to connect an additional NTC probe (eelectron code TS01A01ACC or TS01B01ACC – not included) to the rear 2-way connector to obtain a second temperature measurement.
The device includes an RGB LED bar on the front of the numeric keypad that indicates the successful recognition of the code entered and shows different colors (configurable) for signaling statuses or anomalies.
The numeric keypad also integrates a buzzer that can be enabled or disabled to be able to give acoustic feedback at the press of a key.
The 9025 KNX® numeric keypad can be installed on a 2 or 3 module box and is compatible with the main standards (Italian, German, English, etc.).
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|

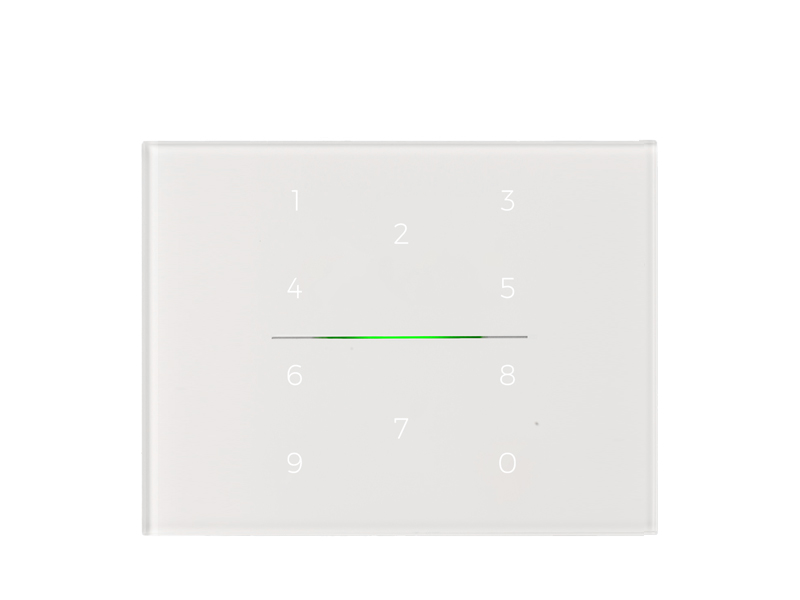

| 9025GKP30L1 |
|
COVER |
WHITE
|
- |

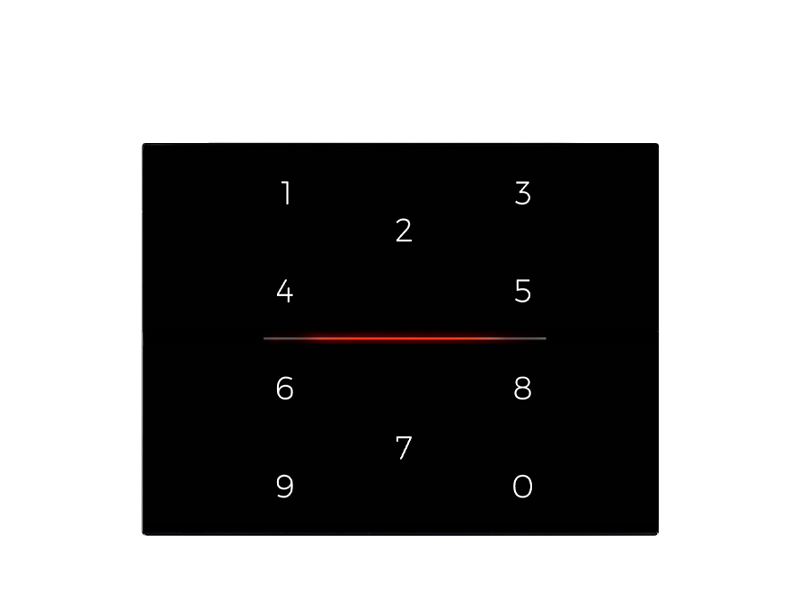

| 9025GKP30L3 |
|
COVER |
BLACK
|
- |

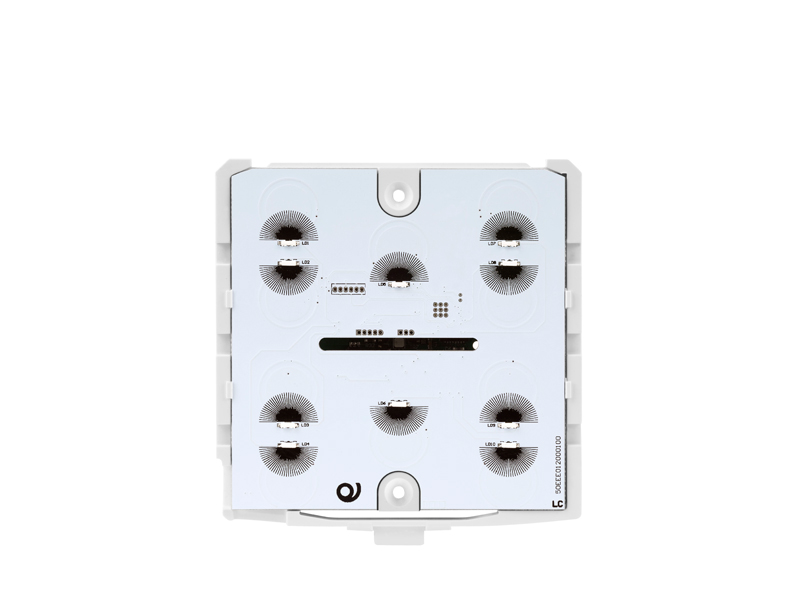

| KP10C01KNX-1 |
|
HARDWARE |
WHITE
|
- |

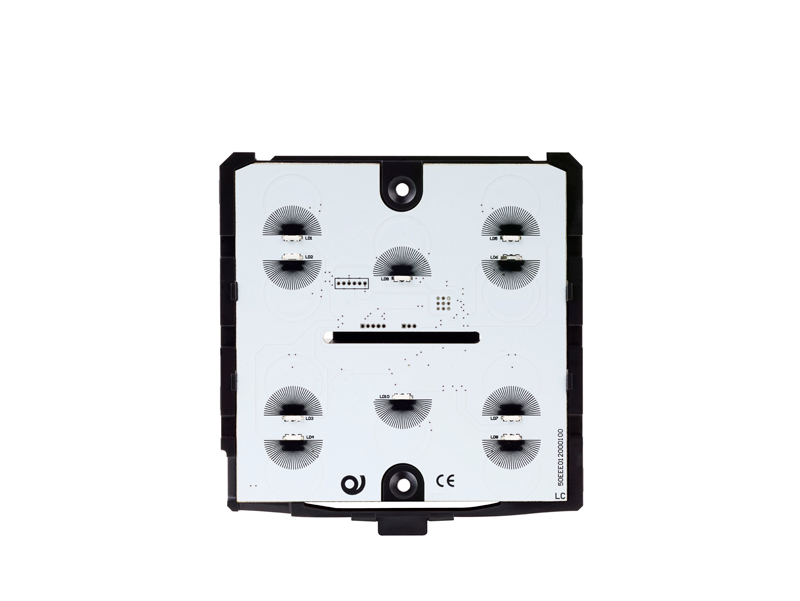

| KP10C01KNX-3 |
|
HARDWARE |
BLACK
|
- |
