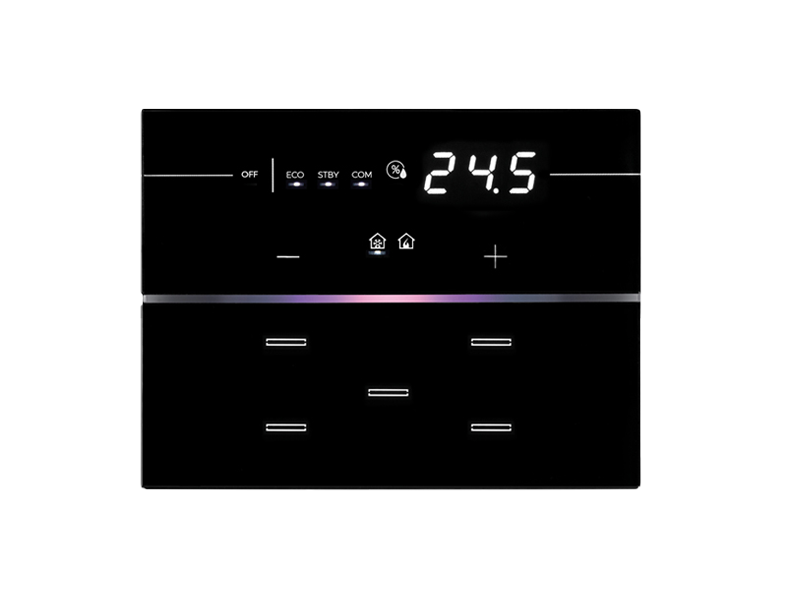

RT07A01KNX-X
The Thermostat 9025 is a KNX®controller that includes 7 configurable capacitive buttons for the management of on/off commands, dimmers, shutters and blinds, execution and learning of scenarios, sequences of objects, local thermostat commands.
The device includes a 2-stage thermostat with integrated PI controller for driving heating and cooling appliances, valves, 2 and 4-pipe fan coils, etc.
The device has a temperature probe on board and is equipped with an input on the rear side that can be configured as digital or analog; in fact, it is possible to connect an additional NTC probe (eelectron code TS01A01ACC or TS01B01ACC – not included) to the rear 2-way connector to obtain a second temperature measurement.
A version with integrated temperature and relative humidity sensor is available for the control of actuators for the regulation of the relative humidity of the room.
The device includes an RGB LED bar on the front for displaying statuses or other quantities available on the KNX bus.

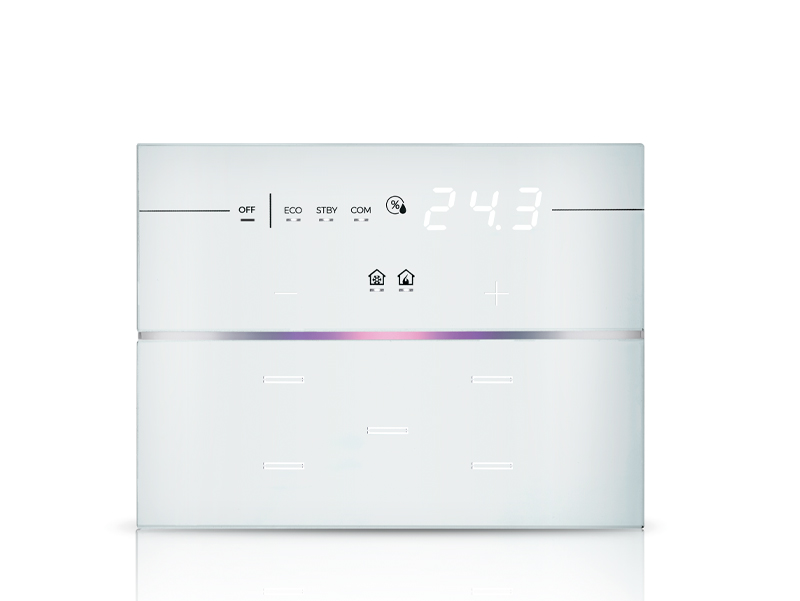

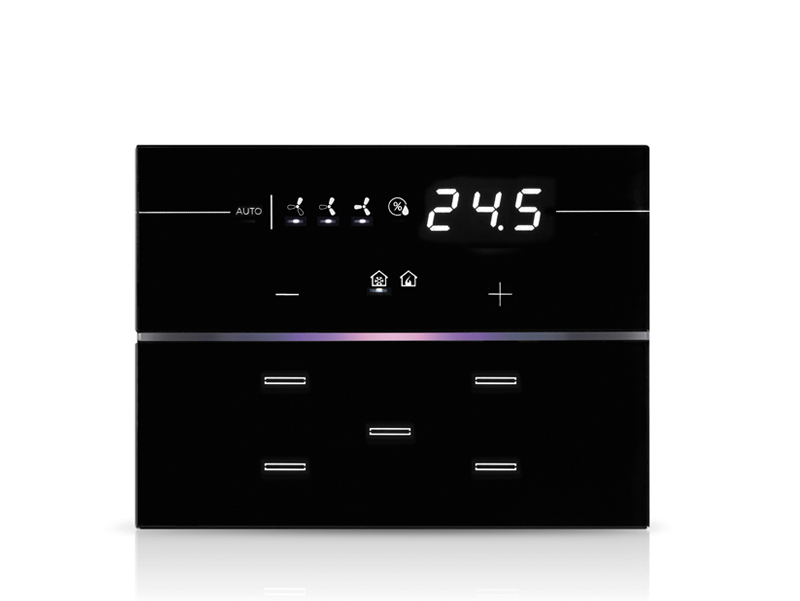

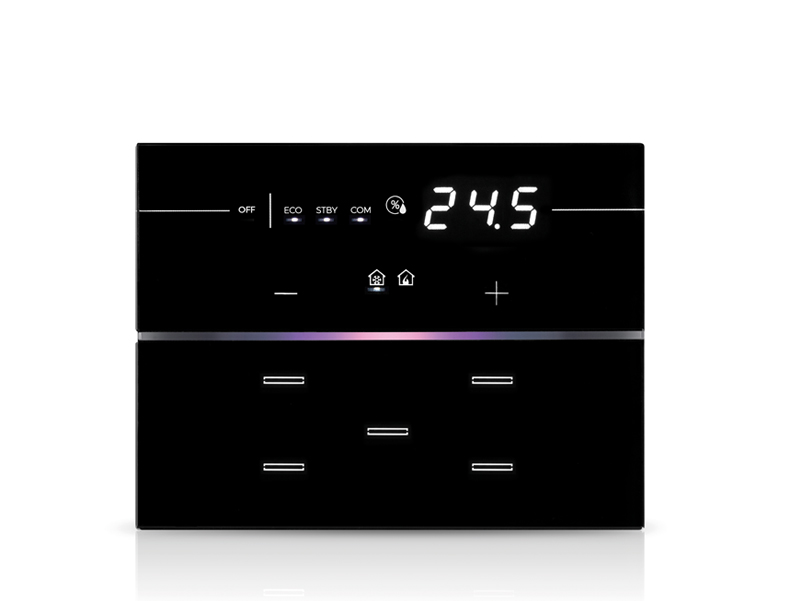

The glass roofs are available in versions for HOTEL or RESIDENTIAL applications; each also available in a CUSTOM version.

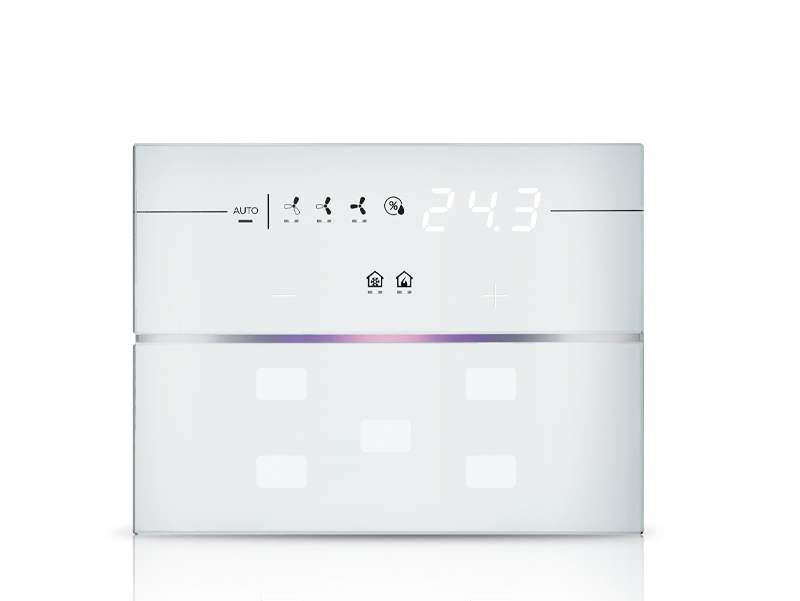

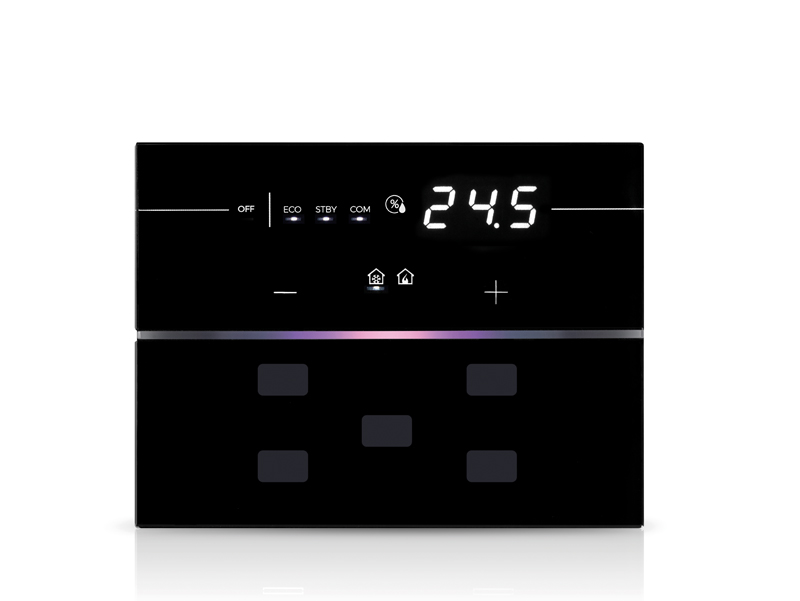

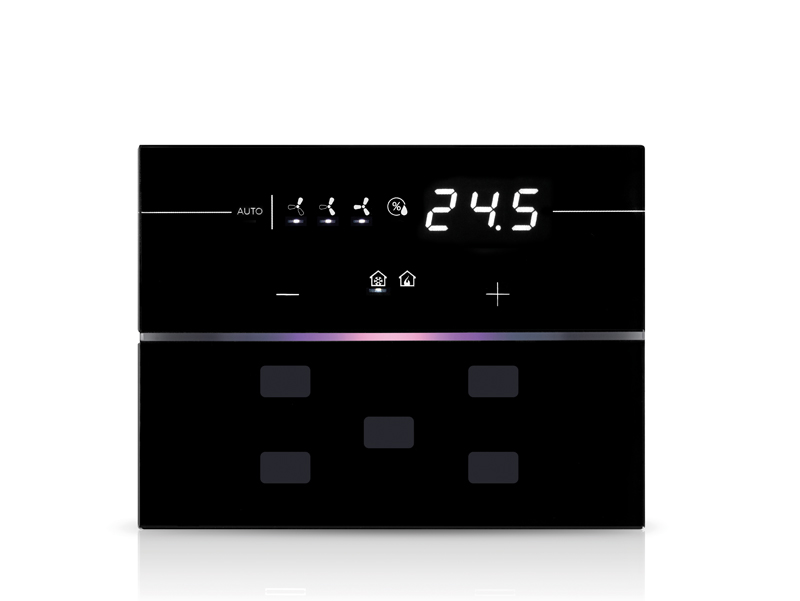

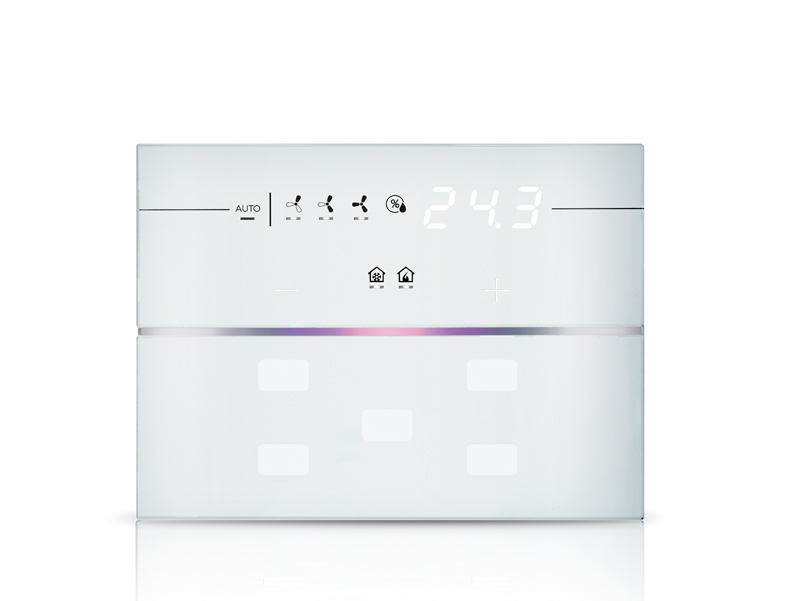

CUSTOM glass has the possibility of backlighting customized and interchangeable icons that can be associated with the configured function.
The 9025 KNX® series can be installed on a 2-module box and is compatible with the main standards (Italian, German, English, etc.). The device includes the KNX communication interface.
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| RT07A01KNX-1 |
|
HARDWARE |
WHITE
|
7 |
| RT07A01KNX-3 |
|
HARDWARE |
BLACK
|
7 |
| 9025G307B01-H |
|
COVER |
WHITE
|
- |
| 9025G307B03-H |
|
COVER |
BLACK
|
- |
| 9025GT307B01-R |
|
COVER |
WHITE
|
7 |
| 9025GT307B03-R |
|
COVER |
BLACK
|
7 |
| 9025GT307D01-H |
|
COVER |
WHITE
|
7 |
| 9025GT307D01-R |
|
COVER |
WHITE
|
7 |
| 9025GT307D03-H |
|
COVER |
BLACK
|
7 |
| 9025GT307D03-R |
|
COVER |
BLACK
|
7 |
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Icon |
|---|---|---|---|---|
| 9025ISA-1 |  |
|
|
- |
| 9025ISA-3 |  |
|
|
- |
| 9025ISB-1 |  |
|
|
- |
| 9025ISB-3 |  |
|
|
- |
| 9025ISC-1 |  |
|
|
- |
| 9025ISC-3 |  |
|
|
- |
| 9025ISD-1 |  |
|
|
- |
| 9025ISD-3 |  |
|
|
- |
| 9025ISE-1 |  |
|
|
- |
| 9025ISE-3 |  |
|
|
- |
| 9025ISF-1 |  |
|
|
- |
| 9025ISF-3 |  |
|
|
- |
Make it yours
Eelectron creates architectural and design elements designed to leave a chromatic and graphic mark on the space.
Bring your OL-U and 9025 range to life with custom icons, start designing in the portal today.
