CS10A01KNX-X-3M
The 9025 KNX® series consists of capacitive pushbuttons available in 4, 8 and 10 channel versions, in 2-module and 3-module format, designed to offer maximum flexibility in configuration and integration into building automation systems.
Thanks to capacitive technology, the pushbuttons ensure precise and reliable interaction, combined with a sleek design consistent with the 9025 series, making them ideal for residential, hospitality and commercial environments.
The button can be configured to manage on/off commands, dimmers, shutters and blinds, execution and learning of scenarios, sequences of objects, etc.
The device includes a 2-stage thermostat with integrated PI controller for driving heating and cooling appliances, valves, 2 and 4-pipe fan coils, etc.
The device has a temperature probe on board and is equipped with an input on the rear side that can be configured as digital or analog; in fact, it is possible to connect an additional NTC probe (eelectron code TS01A01ACC or TS01B01ACC – not included) to the rear 2-way connector to obtain a second temperature measurement.

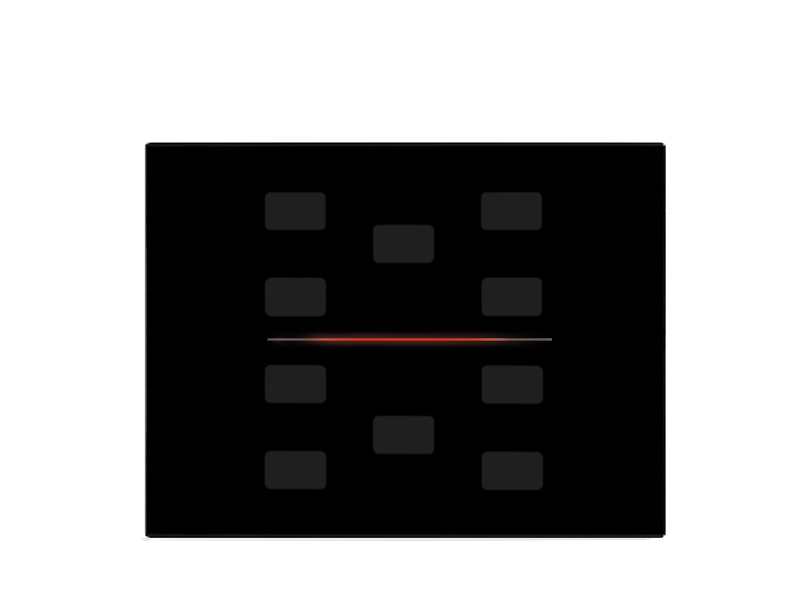

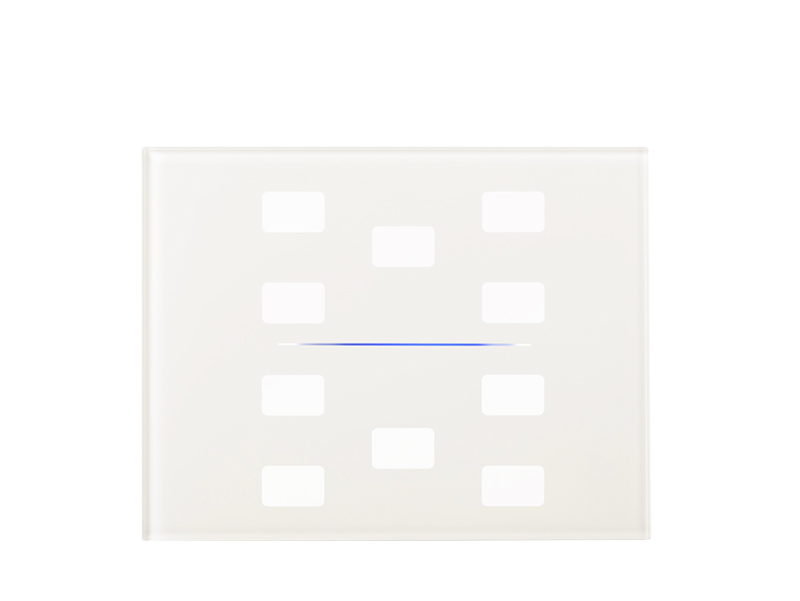

The glass covers are available in 2 ranges: STANDARD or RGB; the CUSTOM version is available for each range. The CUSTOM version glass has the possibility of backlighting customized and interchangeable icons to be associated with the configured function. The 9025 KNX® series can be installed on a 2-module box and is compatible with the main standards (Italian, German, English, etc.)
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|

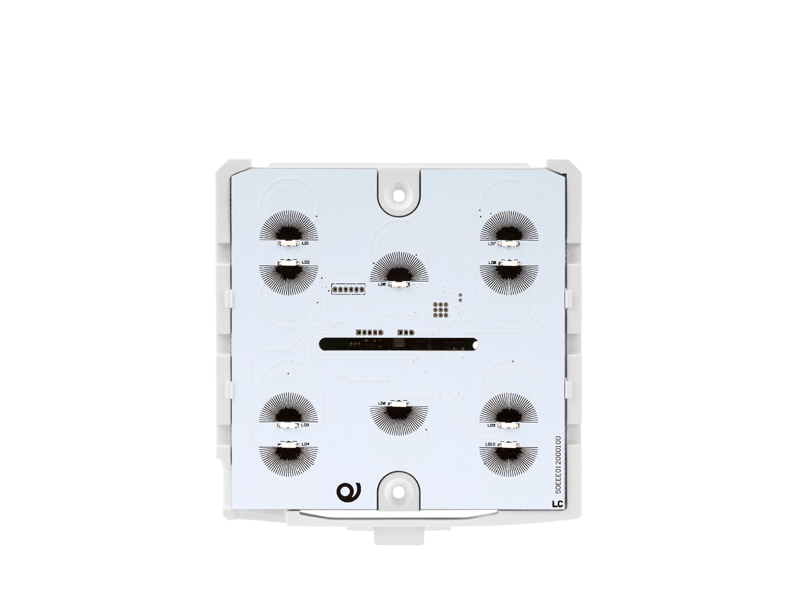

| CS10A01KNX-1-3M |
|
HARDWARE |
WHITE
|
5 |

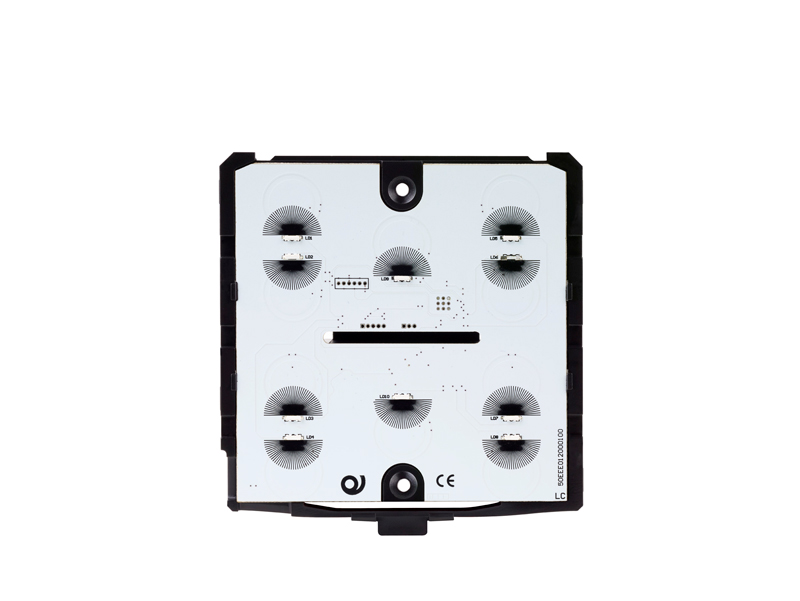

| CS10A01KNX-3-3M |
|
HARDWARE |
BLACK
|
5 |
| 9025GL304L01 |
|
COVER |
WHITE
|
4 |
| 9025GL304L03 |
|
COVER |
BLACK
|
4 |
| 9025GL304LM1 |
|
COVER |
MATTE WHITE
|
4 |
| 9025GL304LM3 |
|
COVER |
MATTE BLACK
|
4 |

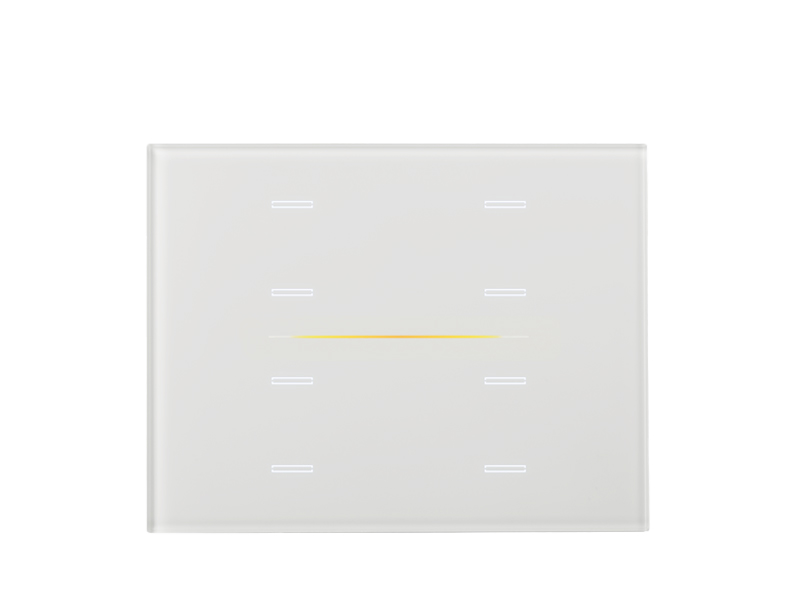

| 9025GL308L01 |
|
COVER |
WHITE
|
8 |

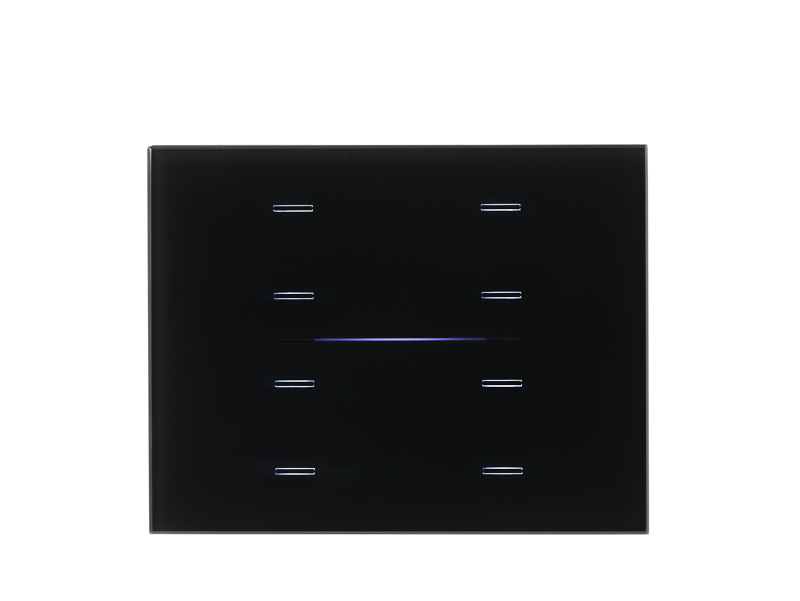

| 9025GL308L03 |
|
COVER |
BLACK
|
8 |
| 9025GL308LM1 |
|
COVER |
WHITE
|
8 |
| 9025GL308LM3 |
|
COVER |
BLACK
|
8 |

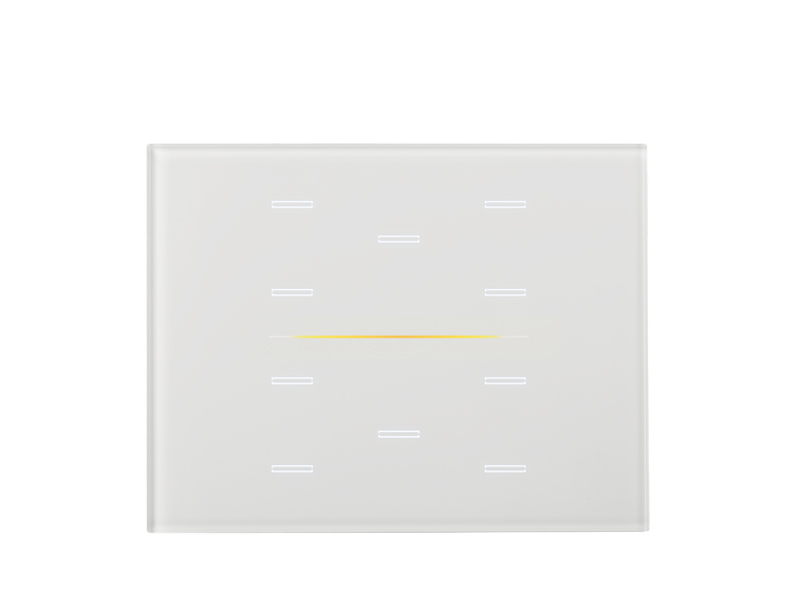

| 9025GL310L01 |
|
COVER |
WHITE
|
10 |

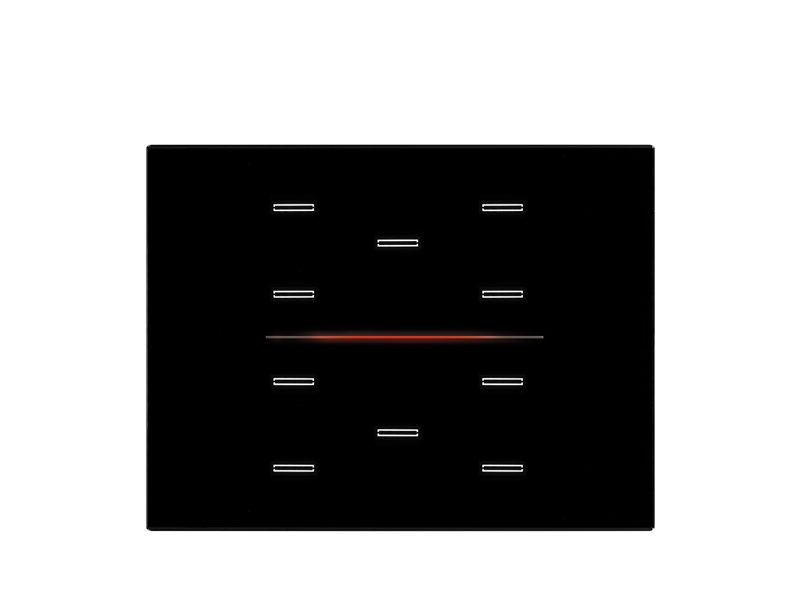

| 9025GL310L03 |
|
COVER |
BLACK
|
10 |
| 9025GL310LM1 |
|
COVER |
WHITE
|
10 |
| 9025GL310LM3 |
|
COVER |
BLACK
|
10 |
| 9025GL310W01 |
|
COVER |
WHITE
|
10 |
| 9025GL310W03 |
|
COVER |
BLACK
|
10 |
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Icon |
|---|---|---|---|---|
| 9025ISA-1 |  |
|
|
- |
| 9025ISA-3 |  |
|
|
- |
| 9025ISB-1 |  |
|
|
- |
| 9025ISB-3 |  |
|
|
- |
| 9025ISC-1 |  |
|
|
- |
| 9025ISC-3 |  |
|
|
- |
| 9025ISD-1 |  |
|
|
- |
| 9025ISD-3 |  |
|
|
- |
| 9025ISE-1 |  |
|
|
- |
| 9025ISE-3 |  |
|
|
- |
| 9025ISF-1 |  |
|
|
- |
| 9025ISF-3 |  |
|
|
- |
Make it yours
Eelectron creates architectural and design elements designed to leave a chromatic and graphic mark on the space.
Bring your OL-U and 9025 range to life with custom icons, start designing in the portal today.
