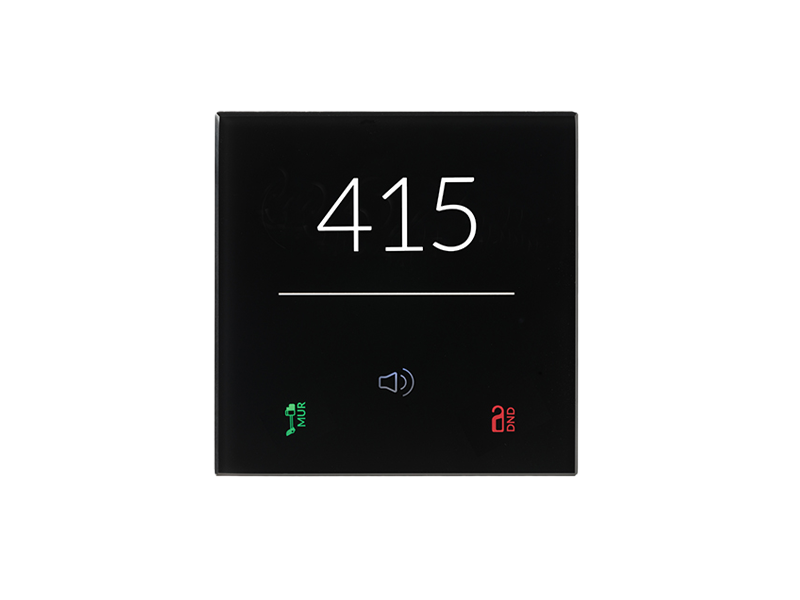

CS05B01KNX-X

Capacitive Push Button KNX Door Panel

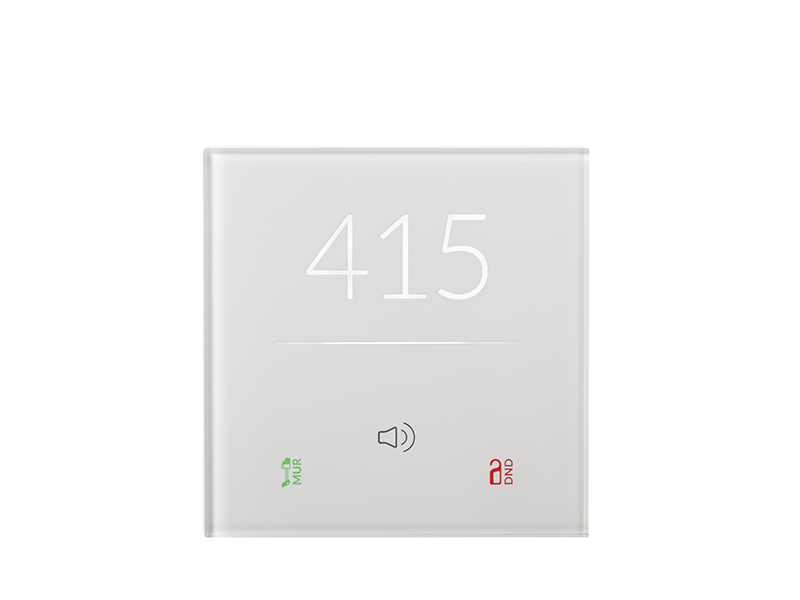

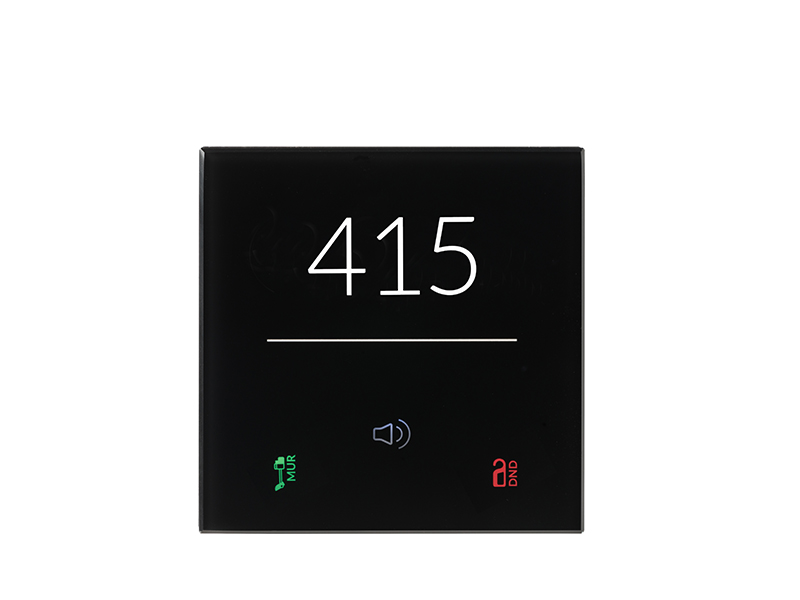

The 9025 KNX® Door Panel is designed for managing and reporting room status in hospitality facilities such as hotels, resorts, residences and student residences.

Installed outside the room, the device allows you to view and manage dedicated functions such as Do Not Disturb (DND), Make Up Room (MUR) and other customizable signals, improving communication between guest and staff and optimizing daily operations.

Integrated into the KNX system, the panel allows the bidirectional exchange of information with the supervision system and with the devices inside the room, ensuring functional consistency and centralized management of statuses.

The coordinated design with the 9025 series and the glass plates ensures high aesthetic quality and harmonious integration into corridors and common areas, while maintaining robustness and reliability for continuous use 24/7.

A solution that combines functionality, operational efficiency and care for the guest experience, contributing to a smarter and more structured management of the building.

Technical highlights & Configuration

Core Features

Each button can be configured to manage on/off commands, dimmers, shutters and blinds, execution and learning of scenarios, sequences of objects, etc. The device includes a 2-stage thermostat with integrated PI controller for driving heating and cooling appliances, valves, 2 and 4-pipe fan coils, etc. The device has a temperature probe on board and is equipped with an input on the rear side that can be configured as digital or analog; in fact, it is possible to connect an additional NTC probe (eelectron code TS01A01ACC or TS01B01ACC – not included) to the rear 2-way connector to obtain a second temperature measurement. The device includes an RGB LED bar on the front for displaying statuses or other quantities available on the KNX bus (function available on the RGB range).

Mounting & Compatibility

The glass covers are available in 2 ranges: STANDARD or RGB; the CUSTOM version is available for each range. The CUSTOM version glass has the possibility of backlighting customized and interchangeable icons to be associated with the configured function. The 9025 KNX® series can be installed on a 2-module box and is compatible with the main standards (Italian, German, English, etc.)

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

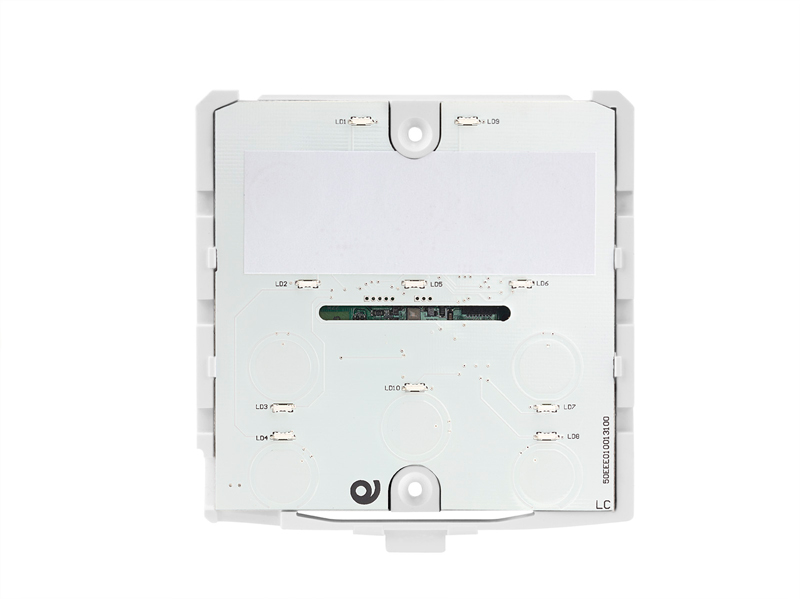

CS05B01KNX-1
HARDWARE
WHITE
5

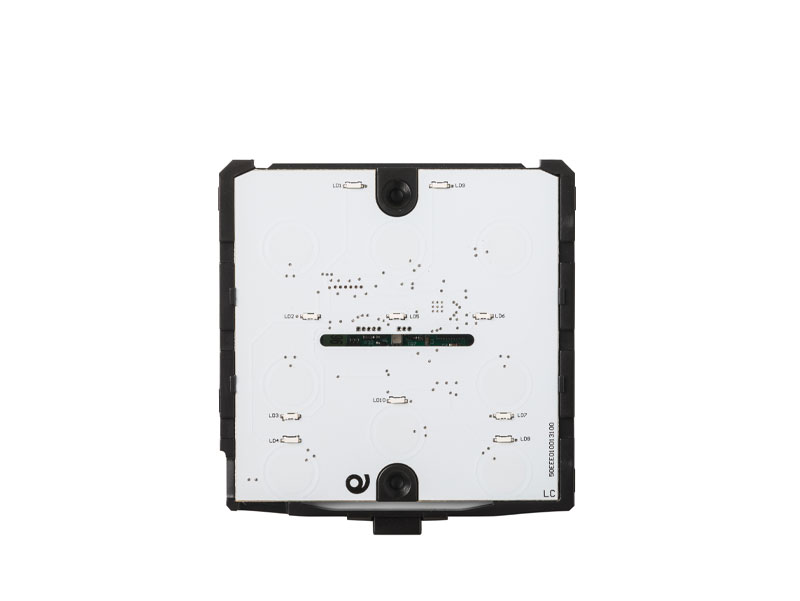

CS05B01KNX-3
HARDWARE
BLACK
5
9025GL03P01
COVER
WHITE
2
9025GL03P03
COVER
BLACK
2
9025GL03PM01
COVER
MATTE WHITE
-
9025GL03PM03
COVER
MATTE BLACK
-
