The 9025 series device dedicated to access control management is a KNX device and uses RFID – MIFARE® technology and can be configured with ETS® to communicate with the KNX Data Secure protocol.
Contact our team to get all your questions answered

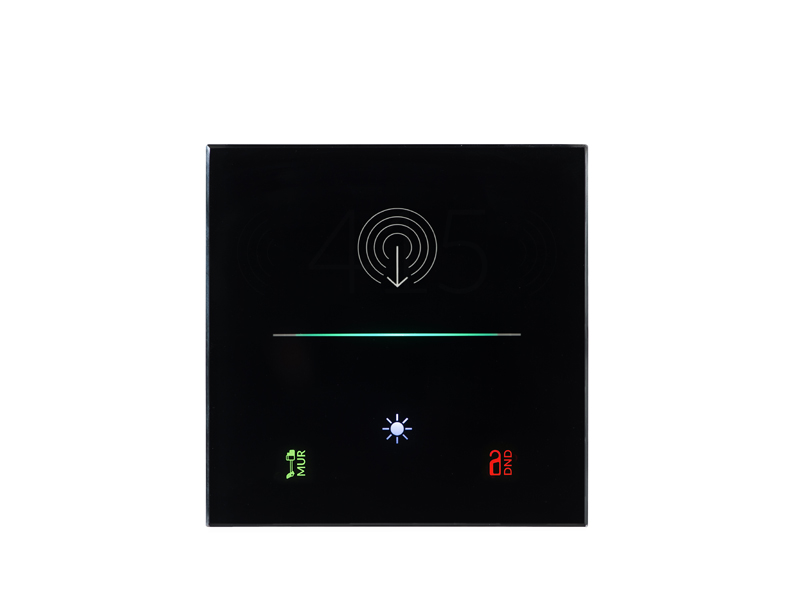

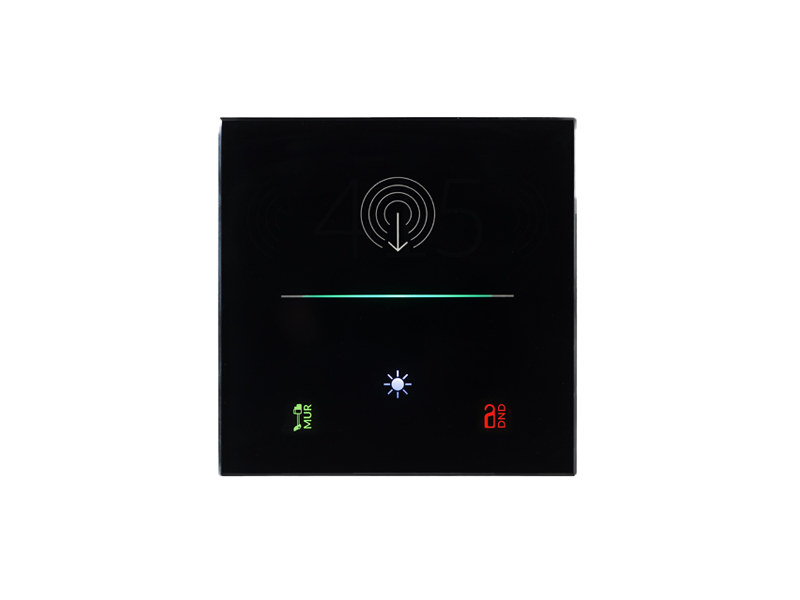

The upper part of the glass is backlit (to be able to illuminate the room number or a logo – both customizations on request); in the lower part there are 3 backlit capacitive buttons, freely configurable (typically with CAMERA LIGHTS function and buttons for MUR and DND setting).
The device integrates an antenna with BEACON BLE (Bluetooth Low Energy) function. Data format compatible with iBeacon® and Eddystone®.
The device allows you to set the transmission frequency and signal strength.
BLE technology allows messages to be sent to mobile devices. These devices must be equipped with an app that allows them to receive information from BLE beacons.
The Card in the transponder pocket is inserted into a compartment from the top of the device, the color of the RGB bar of the reader indicates the successful recognition of the card and shows different colors (configurable) for reporting statuses or anomalies such as:
– Card recognized (welcome): Green
– Incorrect system code: Orange
– Card ID not recognized: Red
– Incorrect Card Date (validity expired): Yellow
– Wrong day of the week (Entry time forbidden): Purple
– Wrong time of day (Entry time forbidden): Blue-Cyan
The reader also integrates a buzzer (which can be activated with the ETS parameter) for the sound signaling of anomalies.
The KNX 9025 transponder pocket can be installed with the supplied glass covers that can be customized on request.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| 9025GTH03L01 |
|
COVER |
WHITE
|
7 |
| 9025GTH03L03 |
|
COVER |
BLACK
|
3 |
| 9025PTH03L01 |
|
COVER |
WHITE
|
- |
| 9025PTH03L03 |
|
COVER |
BLACK
|
3 |

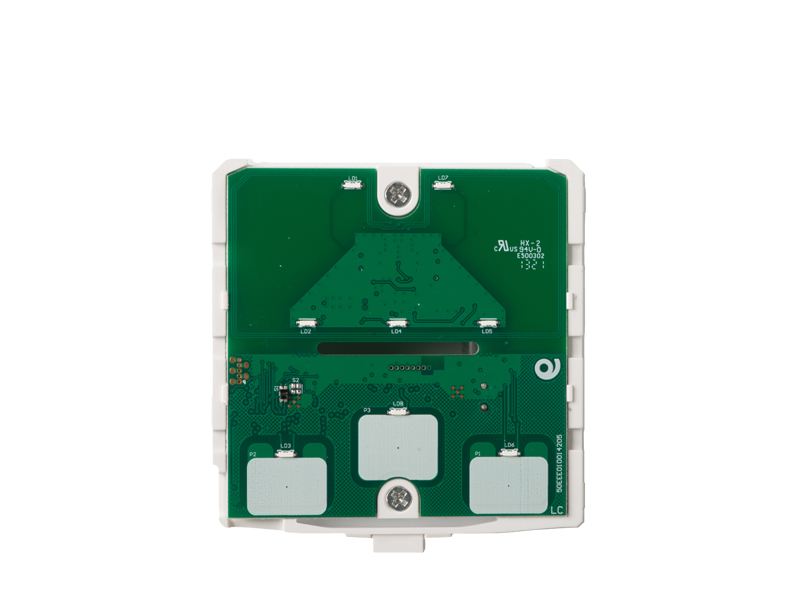

| TH00C01KNX-1 |
|
HARDWARE |
WHITE
|
3 |

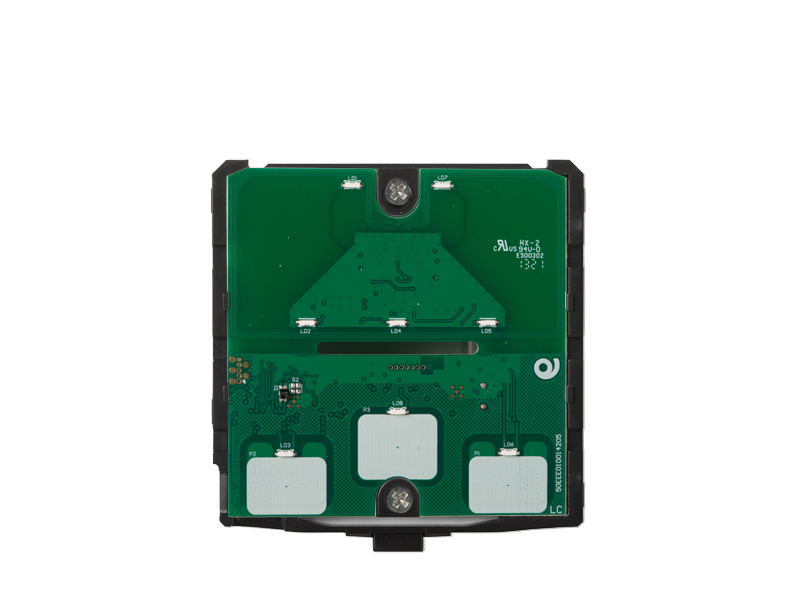

| TH00C01KNX-3 |
|
HARDWARE |
BLACK
|
3 |
