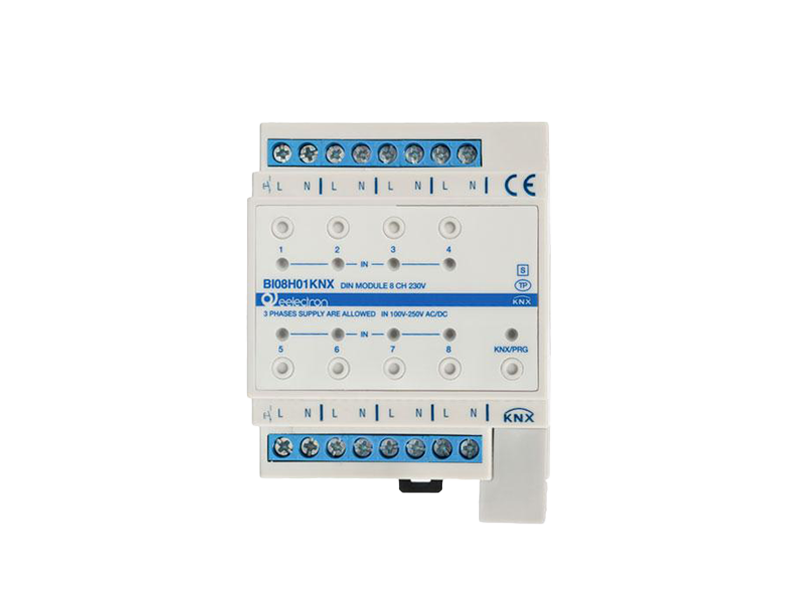

BI08H01KNX
The BI08H01KNX device has 8 inputs for 100–230 V AC. It allows for the detection of both voltage states (present or absent) and voltage state changes or pulses.
It can be used, for example, to monitor mains voltages, to detect switching states or system states, to detect a state change during the switching on or off of a voltage (if a switch or button has been activated), or simply for classic on-off/dimming functions for lamps or control of blinds.
Inputs:
• Switching value
• Light dimming
• Roller shutters
• KNX scenes
• Multiple commands
• Standard motion detectors (230 V AC)
Advanced functions:
• Analog and digital alarms
• Scene control
• Timer (with periodic display of remaining time)
• Override end-user parameters
• Logic functions
• Setpoints
• Advanced scene controller
• Bus recovery behavior DPTs obj
Total inputs: 8 binary inputs (230 V AC) with 1 common terminal for each
Binary inputs – Rated for 100–250 V AC
Scan voltage: 230 V AC
Input current: 0.06 mA per input
Max. phases allowed: 3 phases allowed (Each input can be powered by an independent phase)
As a REG device, it is suitable for mounting in distribution boxes on 35 mm DIN rails and in wall-mounted boxes.
