DIN Module 16 Digital Inputs
Contact our team to get all your questions answered

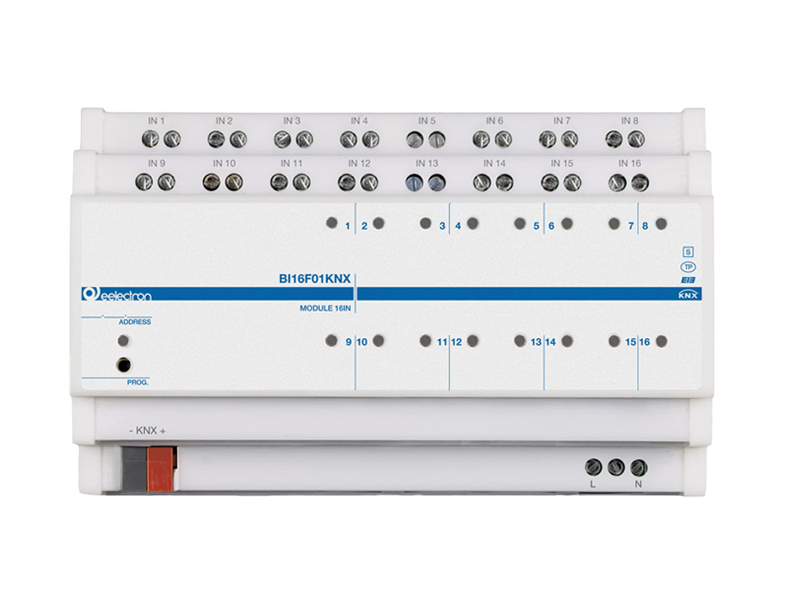

The BI16F01KNX device is equipped with 16 inputs for interfacing dry contacts, for example sensors, switch buttons, etc.
Inputs functions are: on / off control, dimmers, roller shutters and scene recall, etc.
Short and long pressure management, switching, sequences are possible. The lines can be monitored using an end of line resistor (EOL) of 1.8KΩ [1/8W] value which allows the device to manage sensors with a higher level of safety such as magnetic contacts, motion detectors. The pulse counter function is also available for counting the pulses detectable on each input. On the front panel there is a LED to display the status of each input.
Moreover, 16 logic blocks are available to implement simple expressions with logical or threshold operator or complex expressions with algebraic and conditional operators; It is possible to use predefined algorithms as proportional controls of temperature and humidity or dew point calculation.
The device integrates the “Virtual Holder Logic”; the field of application is the hotel room: through a magnetic sensor installed on the door and connected to a digital input, accurate presence information is managed. Device is equipped with KNX communication interface and is intended for installation on DIN rail in LV distribution switchboards.
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| BI16F01KNX |
|
HARDWARE |
-
|
16 IN |
|
HARDWARE |
-
|
4 IN | |
|
HARDWARE |
-
|
8 IN | |
|
HARDWARE |
-
|
8 IN |
