DIN module with 8 relay outputs of 20 A for controlling lights or general loads
Contact our team to get all your questions answered

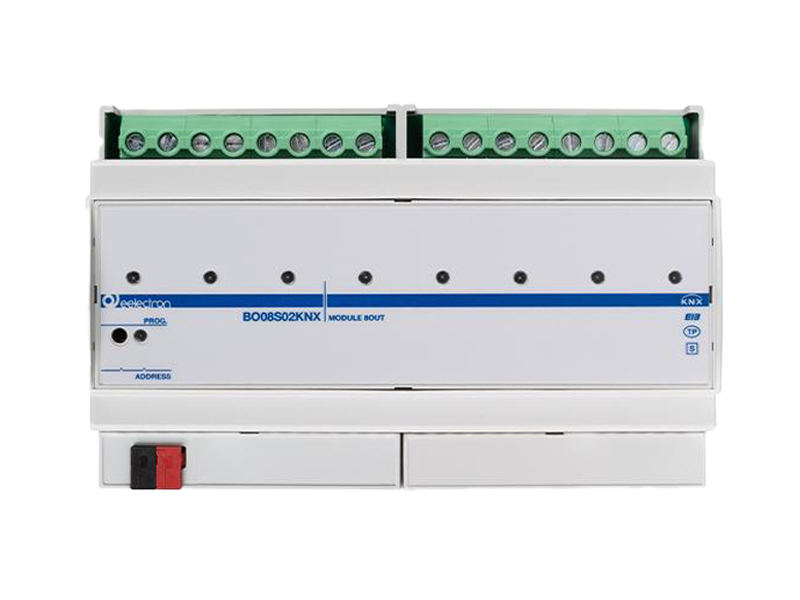

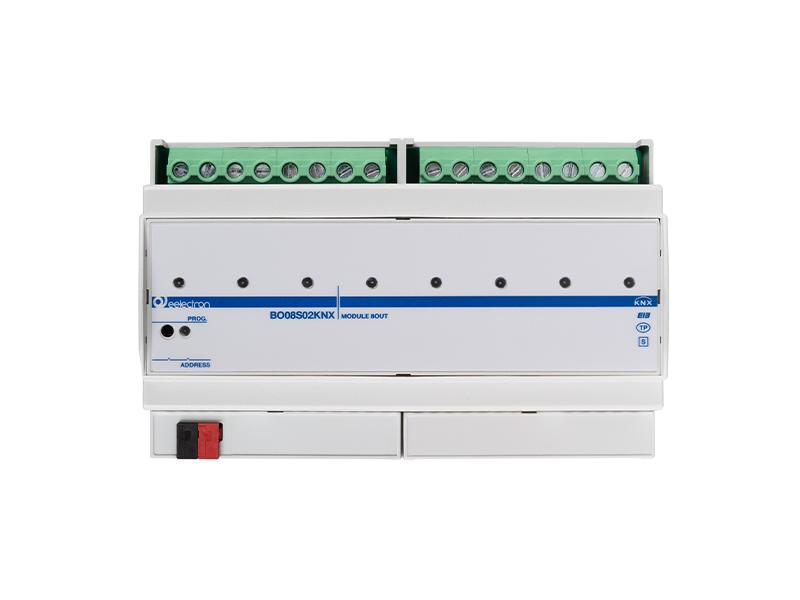

The devices BO08S02KNX is a DIN module with 8 relay outputs of 20 A.
The outputs can be configured in the following ways:
• Every single output configured independently to control lights or generic loads for a total of 8 outputs.
• It is possible to combine groups of relays (up to 8) for special functions with logic interlocking.
NOTE: Due to non-simultaneous switching it is not possible to manage three-phase loads with groups of 3 relays.
8 logic blocks are available to implement simple expressions with logical or threshold operator or complex expressions with algebraic and conditional operators.
Device is equipped with KNX communication interface.
Device is intended to be installed on DIN rail in cabinets for low voltage supply systems.
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| BO08S02KNX |
|
-
|
-
|
- |
