DIN module with 8 relay outputs of 20 A for controlling lights or general loads with current sensors
Contact our team to get all your questions answered

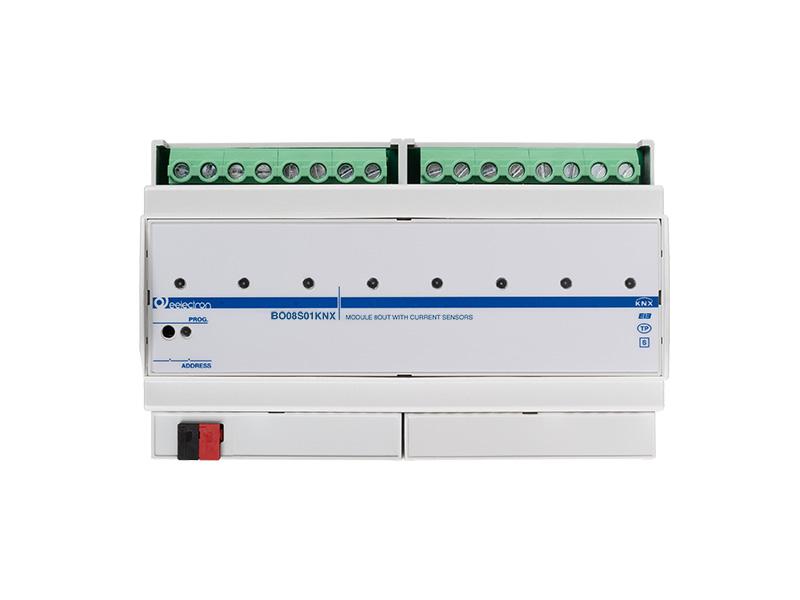

The devices BO08S02KNX is a DIN module with 8 relay outputs of 20 A with current sensors.
The outputs can be configured in the following ways:
• Every single output configured independently to control lights or generic loads for a total of 8 outputs.
• It is possible to combine groups of relays (up to 8) for special functions with logic interlocking.
NOTE: Due to non-simultaneous switching it is not possible to manage three-phase loads with groups of 3 relays.
8 logic blocks are available to implement simple expressions with logical or threshold operator or complex expressions with algebraic and conditional operators.
Function current sensing: to measure the effective current of each relay output with the “true RMS” method (RMS = Root-Mean-Square value).
Function load control: which allows you to control the total consumption of the system up to 16 sources.
Device is equipped with KNX communication interface.
Device is intended to be installed on DIN rail in cabinets for low voltage supply systems.
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| BO08S01KNX |
|
-
|
-
|
- |
