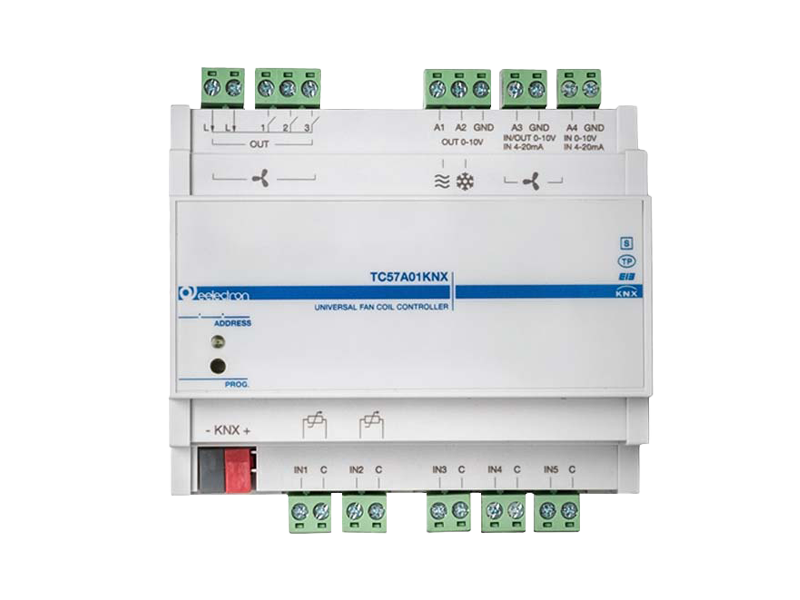

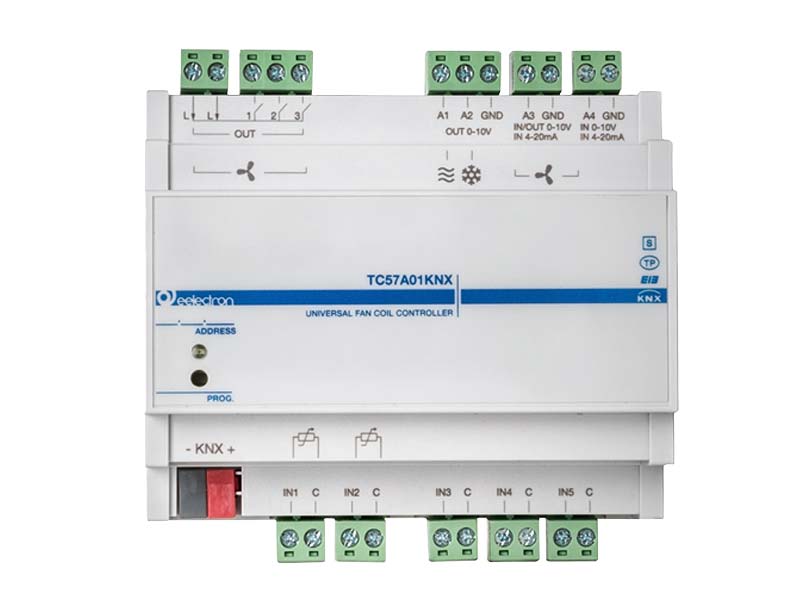

The 0-10 V Universal Fancoil Controller device is a DIN rail EIB/KNX actuator for the control of fan coils.
Contact our team to get all your questions answered
The internal logic of the device can handle a 2/4 pipe fan coil with an internal 2-stage PI algorithm. Sophisticated parameterization allows it to be used in modern systems that require differentiation of the behavior between speed and valves (independent regulation differentials), ventilation to avoid air stratification, logic of efficient maintenance of comfort and energy saving.
The device has 3 0-10 V outputs and 3 16 A relays. Two 0-10 V outputs are dedicated to the management of proportional valves, speed management can be done through the third 0-10 V output or with the 3 relays on board.
If the 3 relays are not used for speeds, they can activate lights or other loads.
An input for reading 0-10V or 4-20mA signals is also available to interface external temperature, humidity, CO2 probes, etc.; the third 0-10 V output can also be configured in this mode, as an input.
There are also 5 digital inputs for dry contact for the connection of buttons, window contacts, alarms; 2 inputs can be connected to NTC temperature probes (eelectron code TS00A01ACC and TS00B01ACC).
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| TC57A01KNX |
|
-
|
-
|
- |
