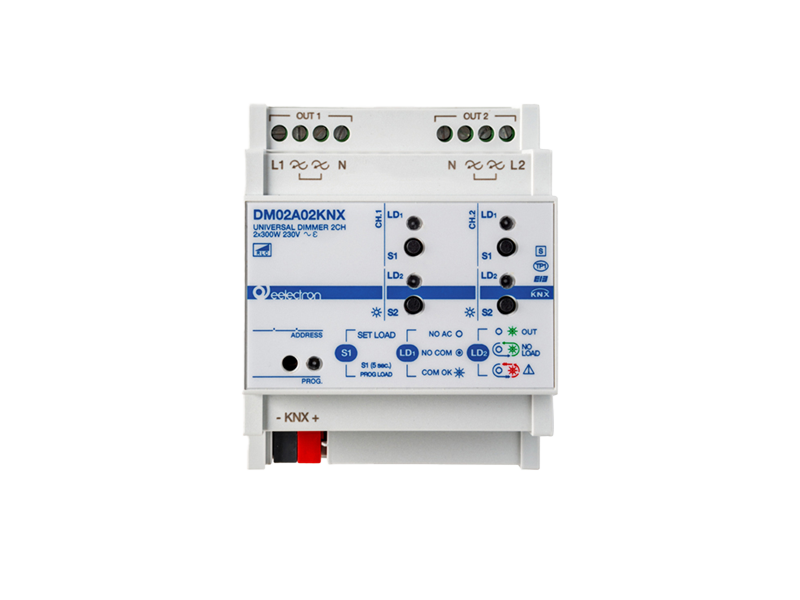

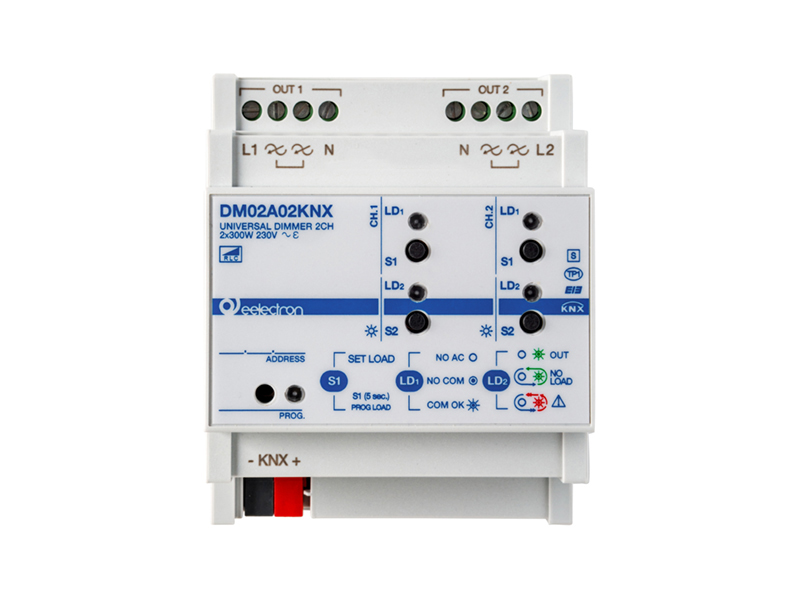

DM02A02KNX

DIN Dimmer 2 Channels – 300W

Universal KNX 2-channel dimmer

Technical highlights & Configuration

Core Features

DM02A02KNX is a 2-channel KNX universal dimmer with automatic identification of the type of load and with settable parameters to optimize the control of different types of lamps such as LEDs, incandescent and halogen lamps, dimmable compact fluorescent lamps (CFL), low voltage lamps with electronic or ferromagnetic transformer.

Technical Data

The 2 channels can be used independently or combined to drive higher power loads; always respect the maximum power values indicated in the table of this instruction sheet and check in the handbook how to configure the outputs as combined in ETS. To define the maximum load and in particular the maximum number of lamps that can be connected, the DimmerLoadTester software is available; with it is possible to analyze the peak absorption of a single lamp and calculate the maximum number of lamps that can be connected.

Each output channel can be used in the following configurations:
• Trailing Edge [RC]: The dimmer turns off part of the final part of the waveform of the input voltage resulting in reduced lamp output. This load regulation is used for resistive or capacitive loads (typically halogen lamps with electronic transformer or incandescent lamps)
• Leading Edge [L]: The dimmer turns off part of the initial part of the waveform of the input voltage, resulting in reduced lamp output. This load regulation is used for inductive loads (typically ferromagnetic transformers or toroidal)

Mounting & Compatibility

Product is intended for installation on DIN rail in electrical distribution cabinets and in vertical position with the bus connector on the bottom side as shown in figure 3; it is recommended to ensure adequate dissipation conditions in free air.

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels
DM02A02KNX
-
-
-
