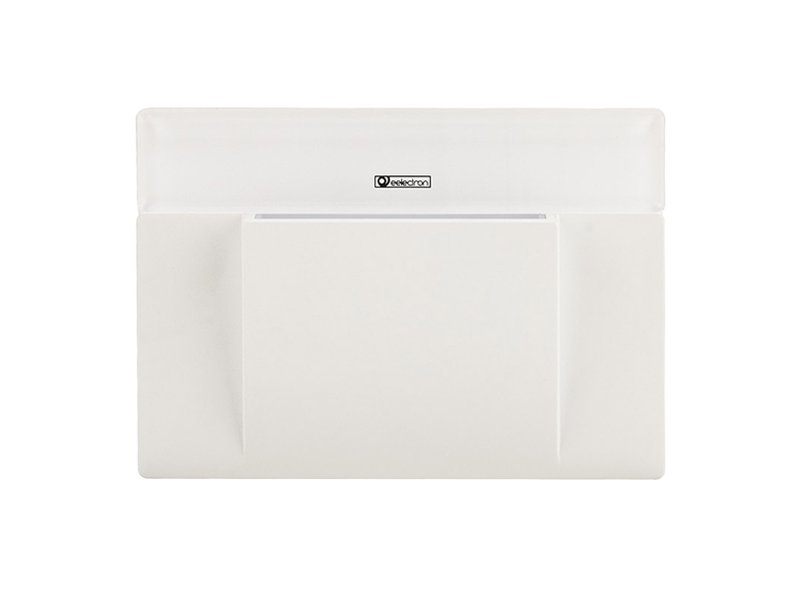

TH22AXXKNX

KNX 2 IN / 2 OUT Transponder Holder

The KNX transponder holder transponder holder TH22AxxKNX is an EIB/KNX recessed device on rectangular boxes with 2 or 3 modules and round, for detecting and controlling the presence of a customer or service staff in the room. The range of available colours of the plastic housing and the separately available finishing glass allows the player to be matched to all types of settings.

Technical highlights & Configuration

Core Features

The appliance is equipped with two physical ON/OFF inputs available for controlling the door open/closed contact or other signals (window contact, bathroom alarm pull, etc.). On the device there are two relays for controlling the door lock and for controlling the “courtesy light”, or freely configurable for other uses. The front of the transponder holder lights up if no card is present (blind location function), turns off if the card is valid and flashes for 3 seconds if access is not allowed. The validation of the card takes place by checking the following data: “system number”, if the code is consistent, the “date” field (if enabled) is checked to verify its validity (if expired). Then check the “password” with all the codes associated with it and enabled (time slots, customer code, service code). If all the conditions are met, the door is enabled and, if set, the courtesy light is switched on and the reading result is sent to the bus. Configuration via ETS.

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

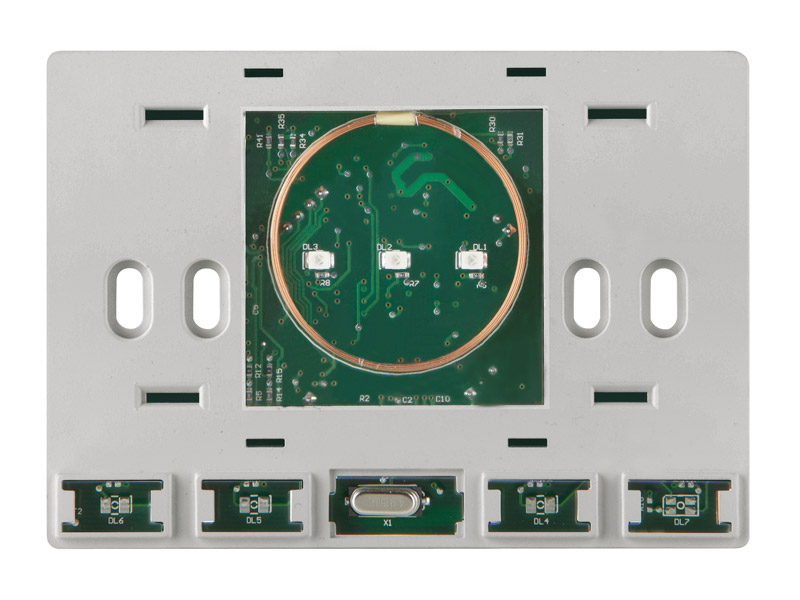

TH22A01KNX
HARDWARE
GREY
-

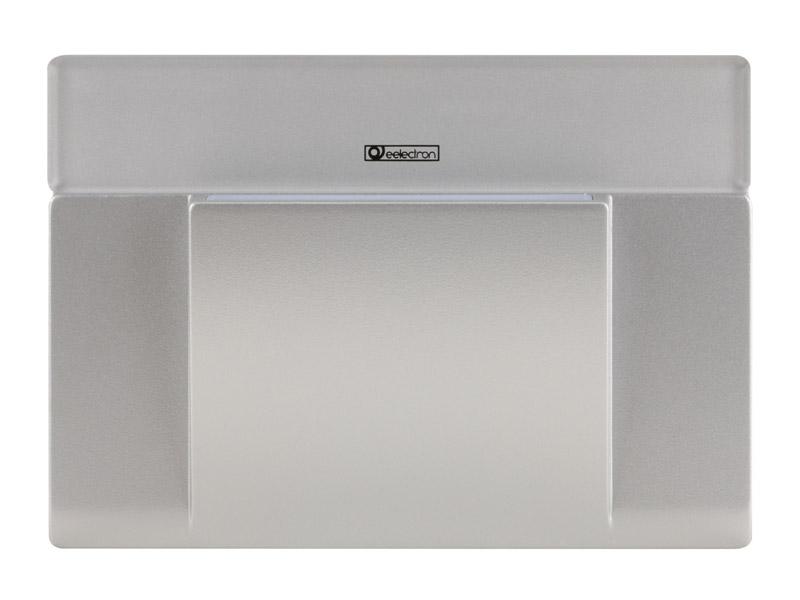

TH22A09KNX
COVER
SILVER
-

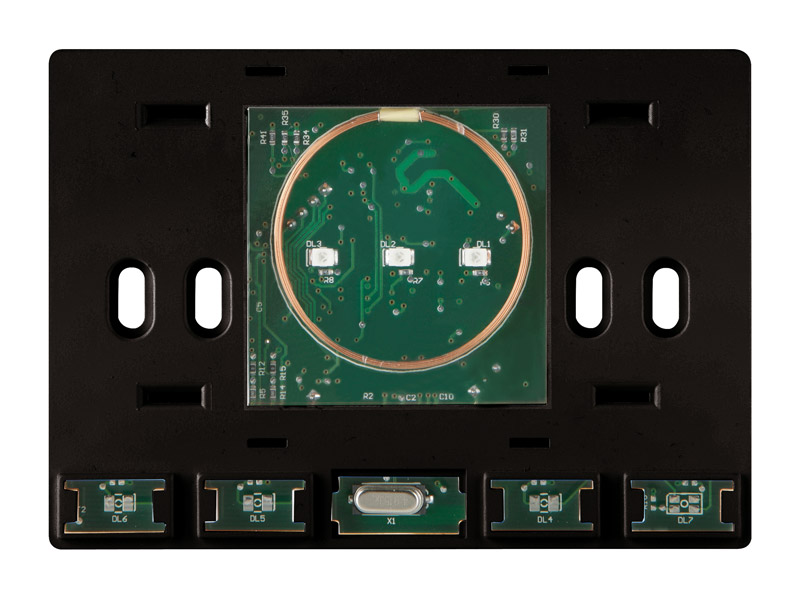

TH22A11KNX
HARDWARE
BLACK
-

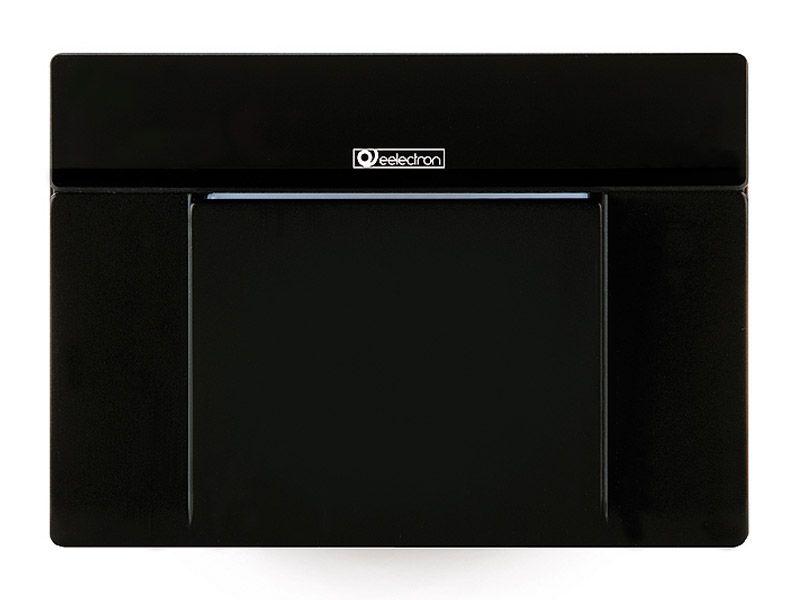

TH22A19KNX
COVER
BLACK
-

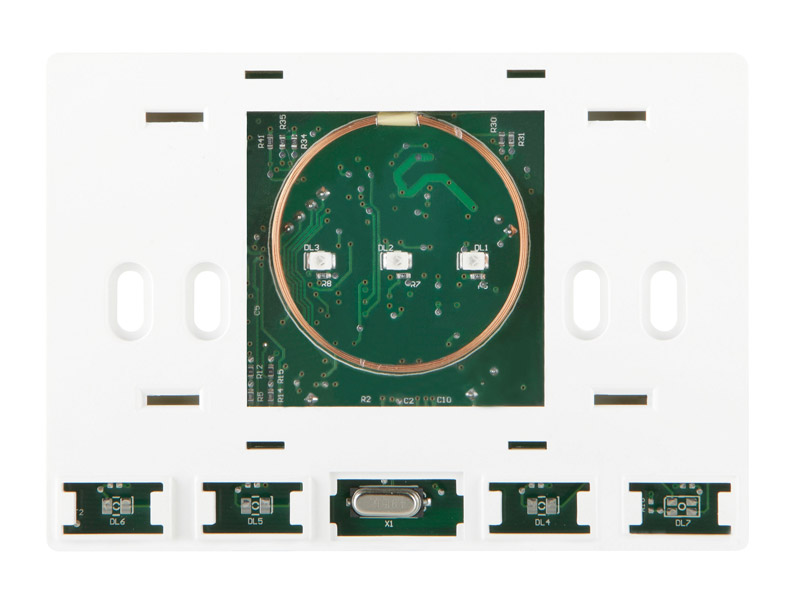

TH22A21KNX
HARDWARE
WHITE
-

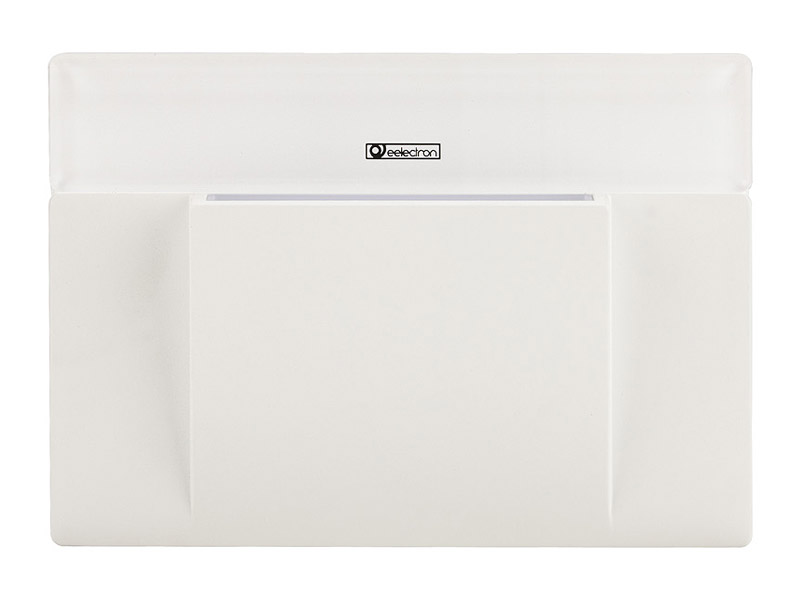

TH22A29KNX
COVER
WHITE
-
VT12
FRAME
WHITE
-
VT15
FRAME
BLACK
-
VT23
FRAME
SILVER
-
VT24
FRAME
GOLD
-
