TM11CXXKNX

HVAC Thermostat

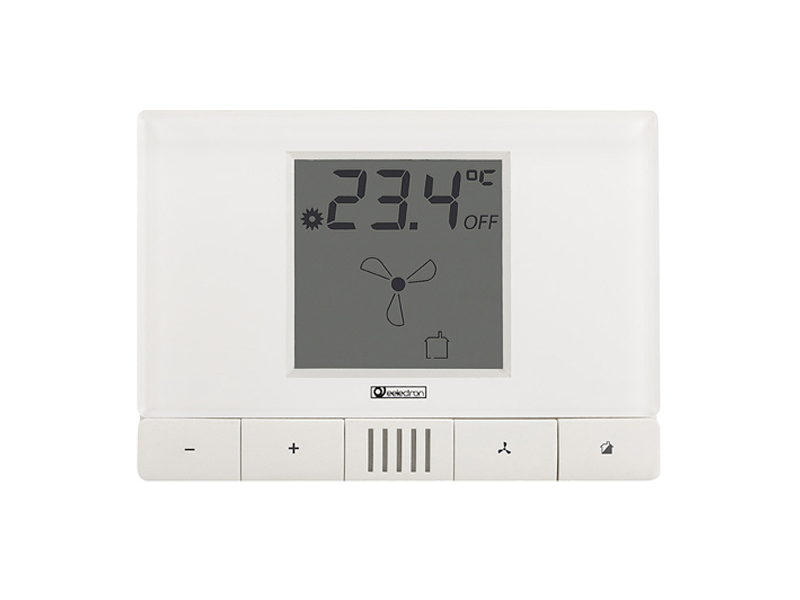

The TM11CxxKNX thermostat is an EIB/KNX device for temperature control in Home & Building Automation applications, characterized by the possibility of mounting on rectangular flush-mounted boxes with 2 or 3 modules and round. The range of available colours of the plastic housing and the finishing glass, which can be ordered separately, allows the thermostat to be combined with all types of settings. On the thermostat there is a large LCD display for displaying the current or setpoint temperature, the fan speed and the summer/winter mode as well as the 4 operating states. The device is equipped with a physical ON/OFF input that can be used to interface a window sensor or for other use and a relay output for controlling the speed 1 of the fan coil or any zone valve. The thermostat can be configured to operate in combination with an ON/OFF output module for controlling the three fan coil speeds. The operating elements available to the user are two buttons to increase and decrease the (currently set) temperature setpoint, and two buttons to increase, decrease or stop the fan speed of the fan coil. The configuration of the device, physical address, parameters and communication objects, is carried out using the ETS (Engineering Tool Software).

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

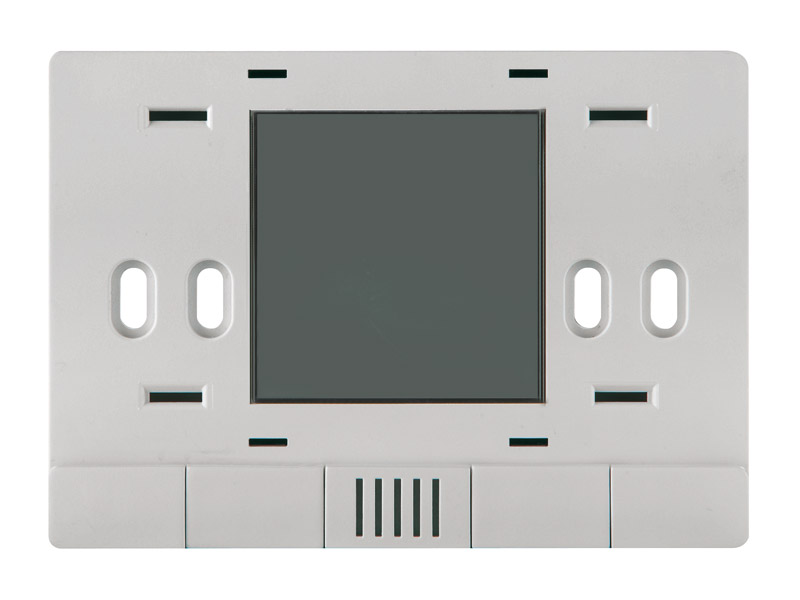

TM11C01KNX
COVER
GREY
-

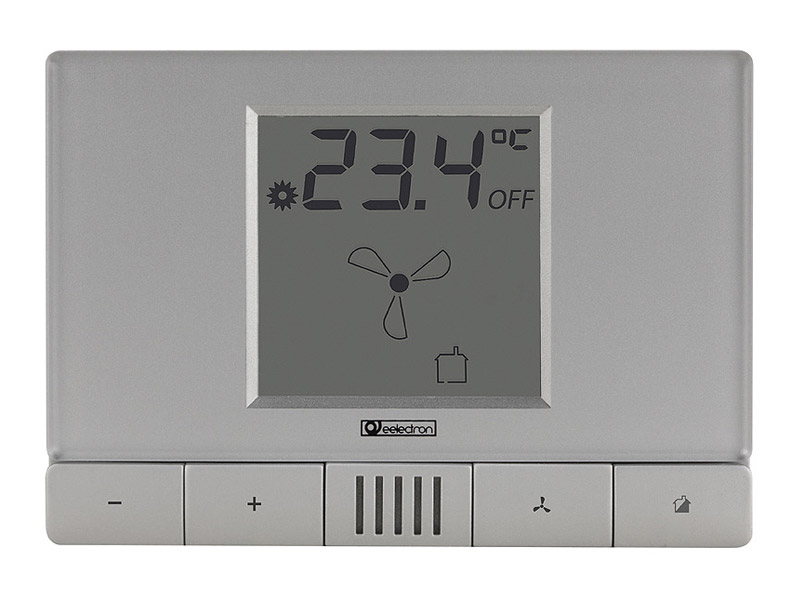

TM11C09KNX
COVER
SILVER
-

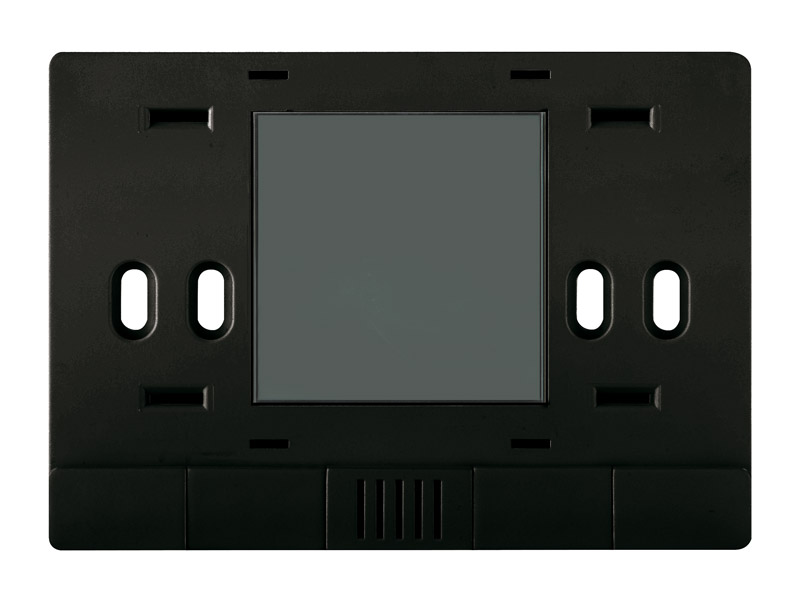

TM11C11KNX
COVER
BLACK
-

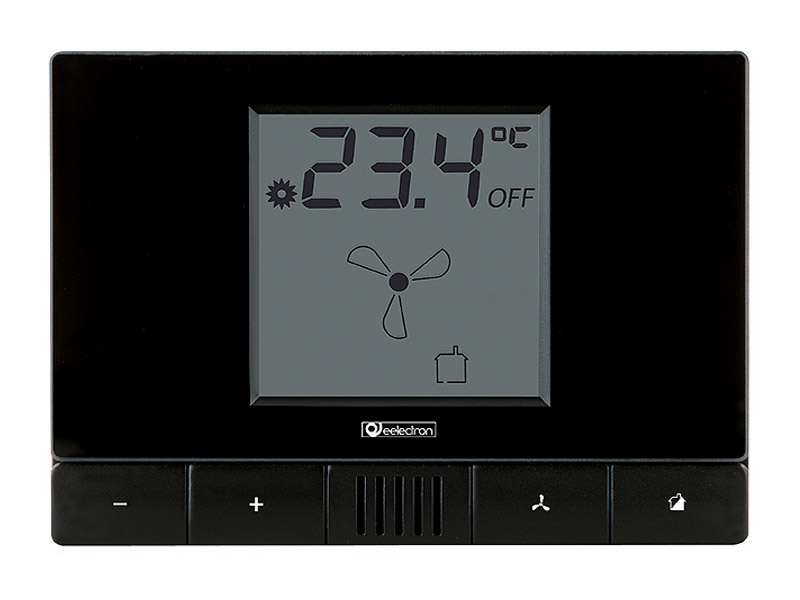

TM11C19KNX
COVER
BLACK
-

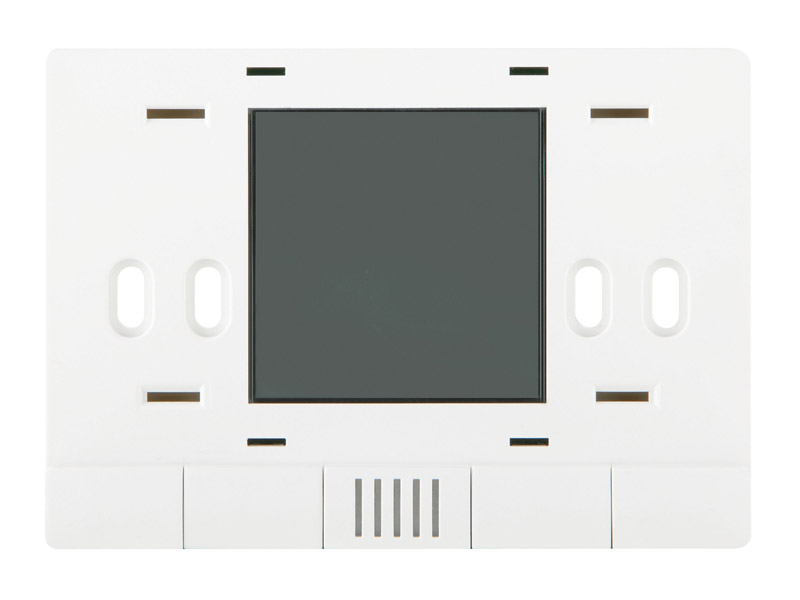

TM11C21KNX
COVER
WHITE
-

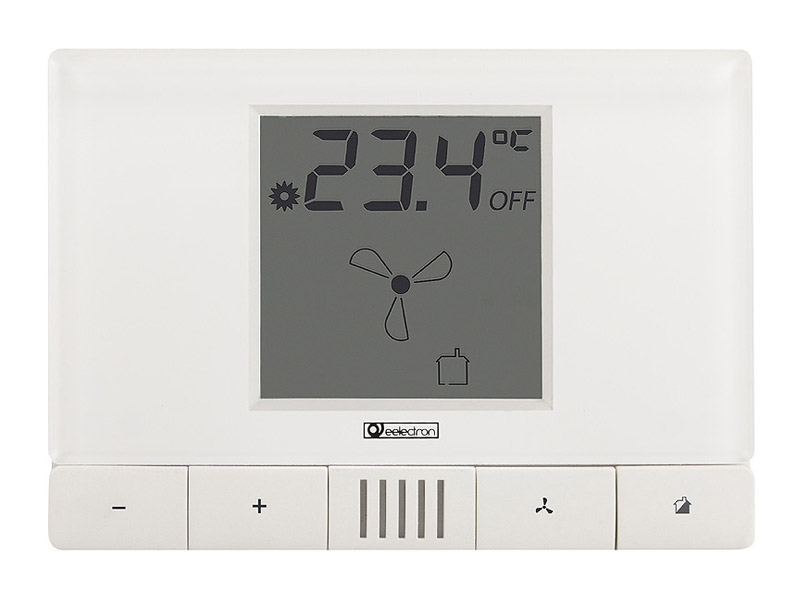

TM11C29KNX
COVER
WHITE
-

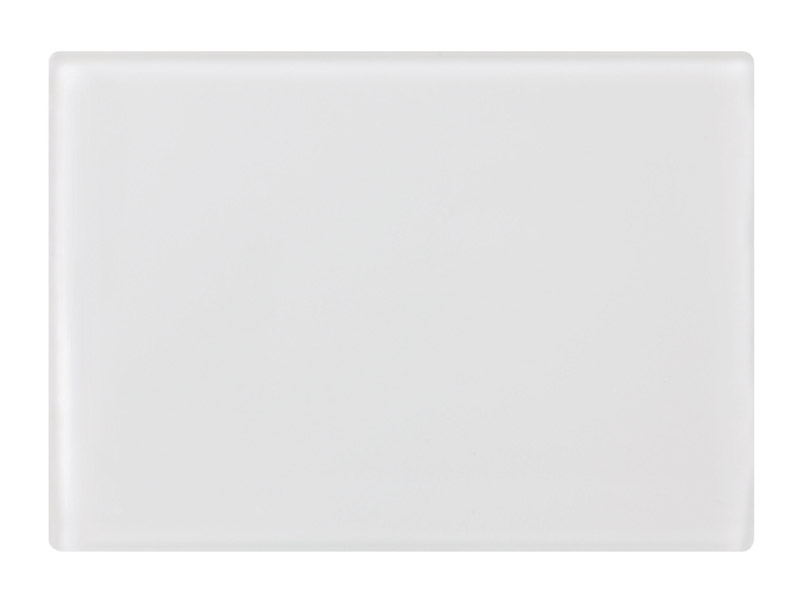

VT12
FRAME
WHITE
-

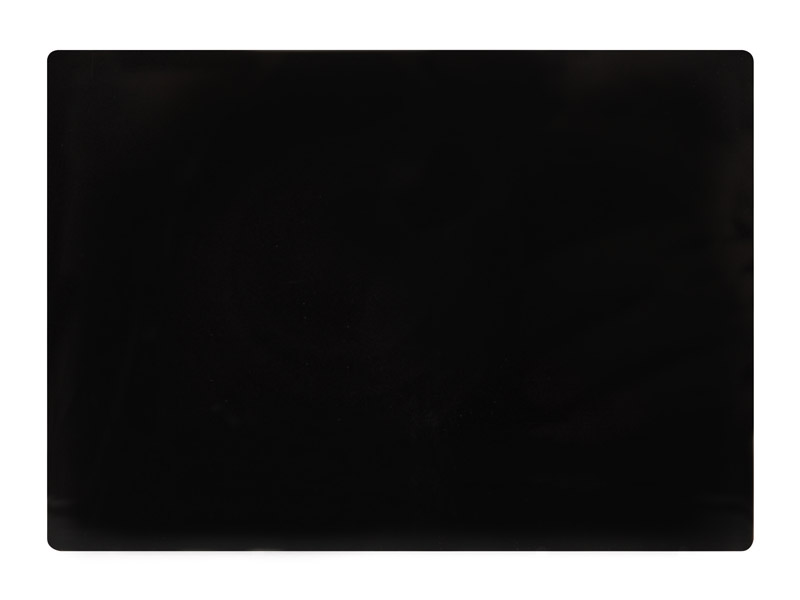

VT15
FRAME
BLACK
-

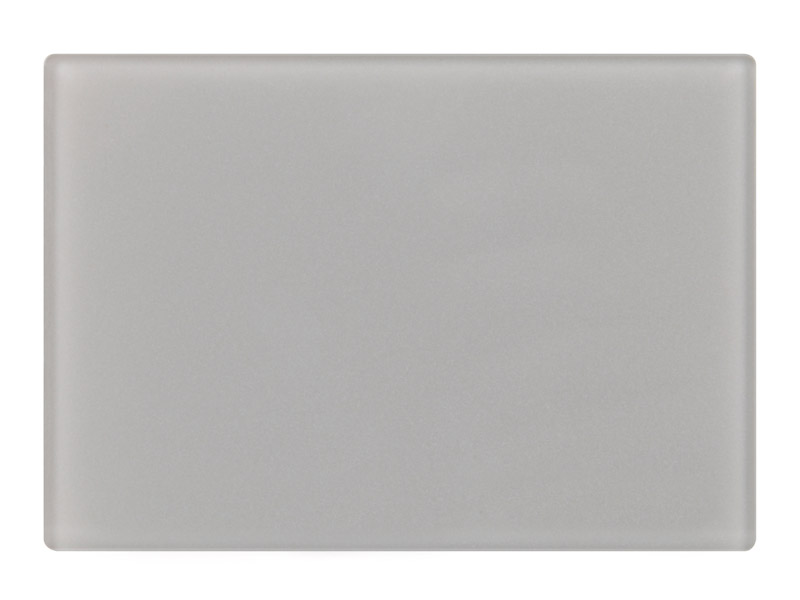

VT23
FRAME
SILVER
-

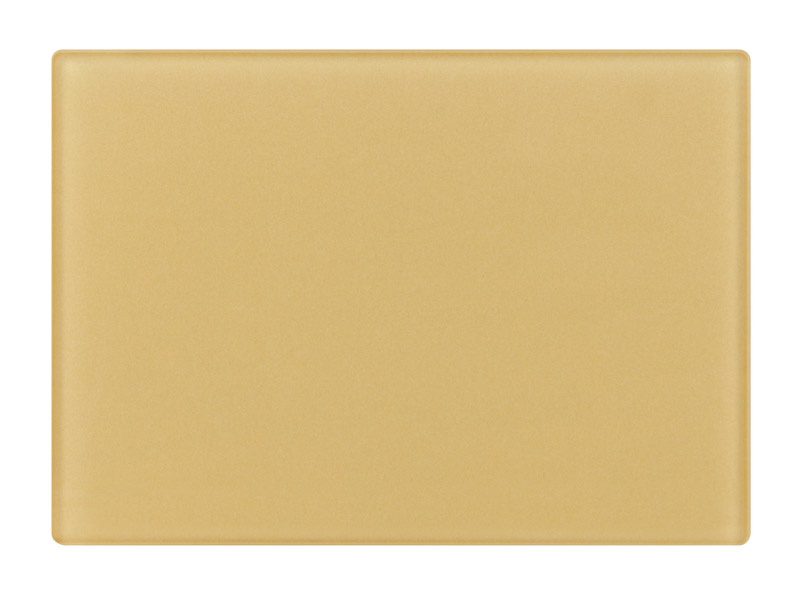

VT24
FRAME
GOLD
-
