SA04K01KNX

Roller shutter module 4 OUT 12-24 V DC

DIN module 4 channels for controlling blinds and roller shutters

Technical highlights & Configuration

Core Features

The SA04K01KNX device is a DIN rail module equipped with 4 channels at 24 V DC. The configuration and commissioning of the device require the use of the ETS® program.

Outputs:
• Bus failure
• Central move
• Shutter slits control
• True height positioning
• Counters
• Scenes
• Facade control
• Presets
• Timers, Alarms
• Disable function
• Manual control

Advanced functions:
• Analog & digital alarms
• Scene controller
• Timers (with cyclic sending of time remaining)
• Overwrite end user parameters
• Logic functions
• Setpoints
• Facade control
• Internal variables
• Behavior at bus recovery DPTs obj

Technical Data

Control of up to 4 actuators for venetian blinds, shutters, or other shading devices powered by 24 V AC/DC. Status objects can be assigned to each channel to report the current position or the final “up” and “down” end positions. The parameters define the movement time for upward and downward operation, as well as the slat adjustment time for venetian blinds. Based on these parameters, blinds and shutters can be controlled with high precision.

The blind/shutter channels can be integrated into the internal façade control module. Additional objects are available for the corresponding façade control functions, including up/down commands, position, and slat position. Furthermore, the blind/shutter channels can be integrated into additional functions of the application module. All channels are powered by an external 24 V AC/DC supply voltage. The channel outputs control the two movement directions: up and down.

The KNX communication interface is included.

Mounting & Compatibility

The module is housed in a 4-module DIN rail enclosure and can be installed in a standard distribution board.

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

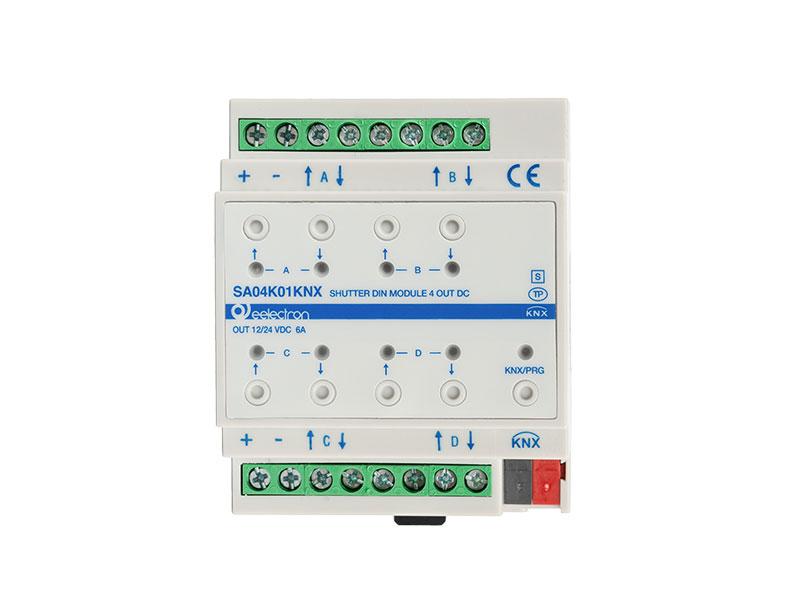

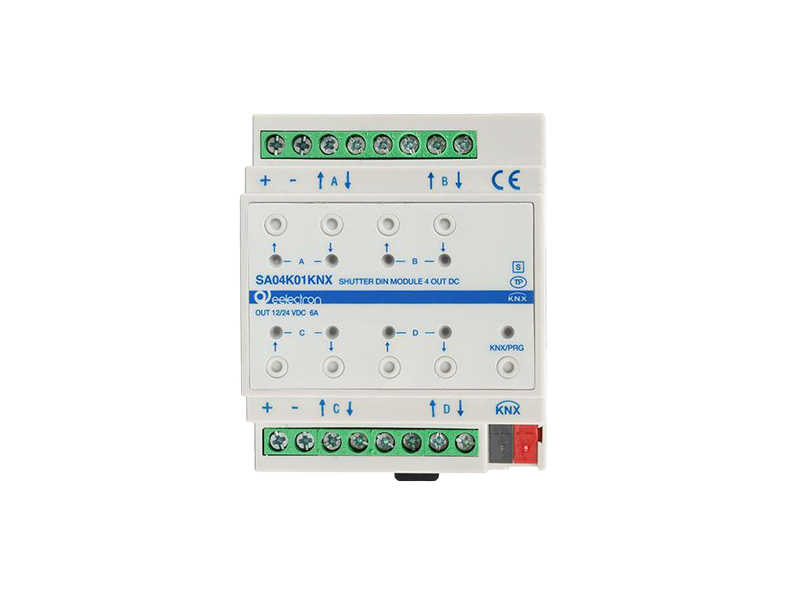

SA04K01KNX
-
-
-

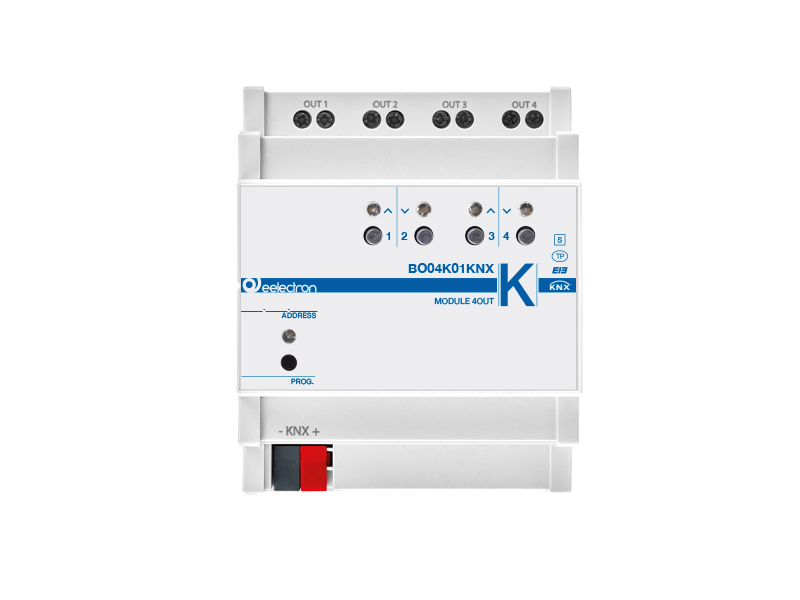

BO04K01KNX
-
-
-

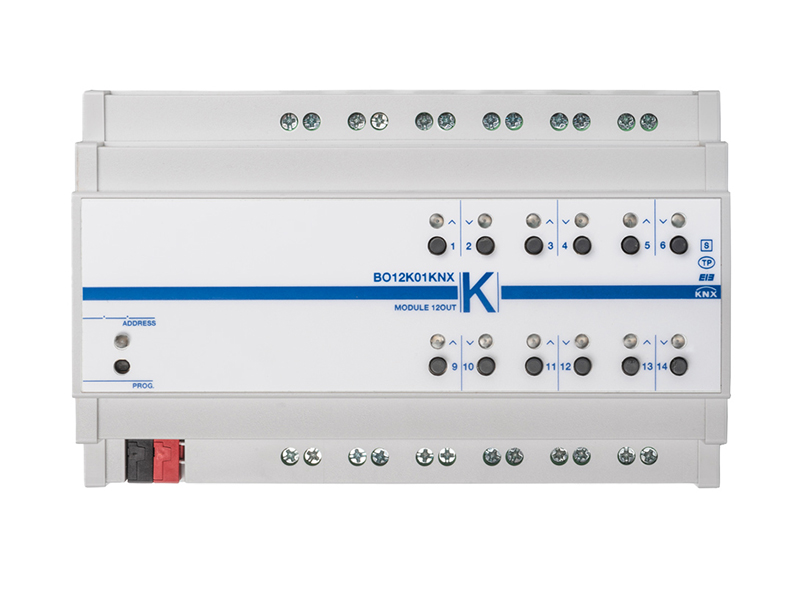

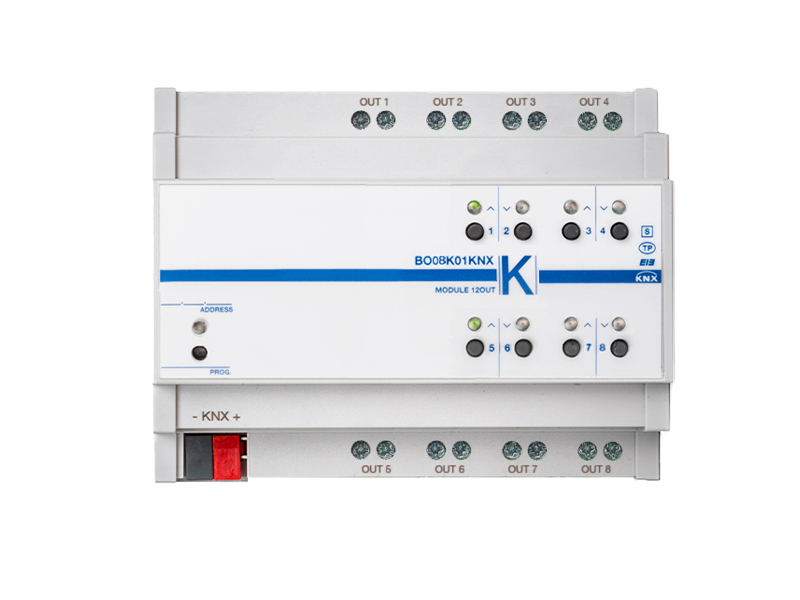

BO08K01KNX
-
-
-
BO12K01KNX
-
-
-

Can't find what you're looking for?

Contact our team to get all your questions answered
