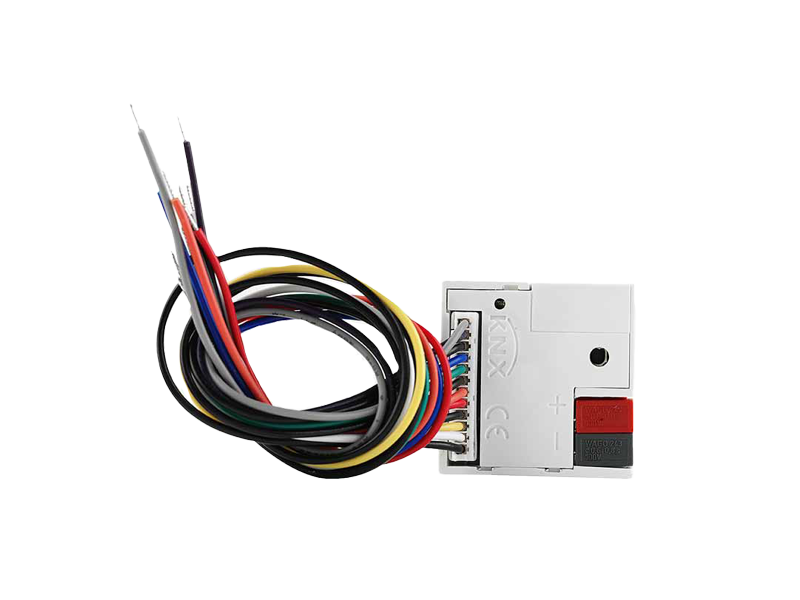

IOxxD01KNX

Inwall – Mounted Push Button Interface

The product is dedicated to interfacing dry contacts via the 2, 4 or 6 input channels, e.g. for sensors, traditional buttons, etc. and 2 or 4 low-voltage output channels. The devices have an extremely compact size (only 34 x 34 x 11 mm) and can also be used in retro-recessed installation where the available space is limited. Digital inputs can interface sensors, KNX and traditional buttons, etc.; the low-voltage output channels can drive LEDs for displaying statuses on traditional buttons or in synoptic panels. All outputs can drive low voltage LEDs: high efficiency blue LED code LD00A01ACC or high efficiency white LED code LD00A11ACC. There are also 8 blocks of logic functions freely configurable by ETS (6 blocks available on IO62D01KNX). The device includes the KNX communication interface

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

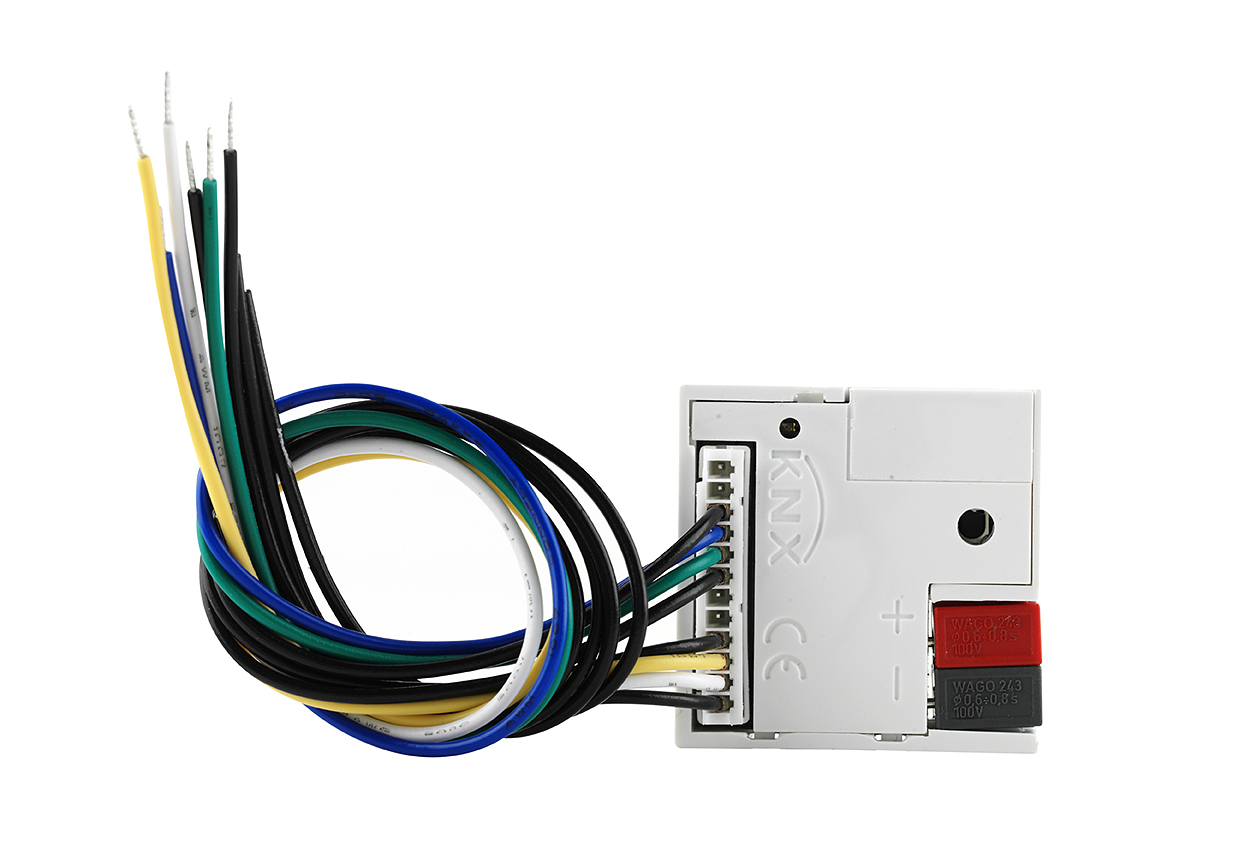

IO22D01KNX
-
-
-

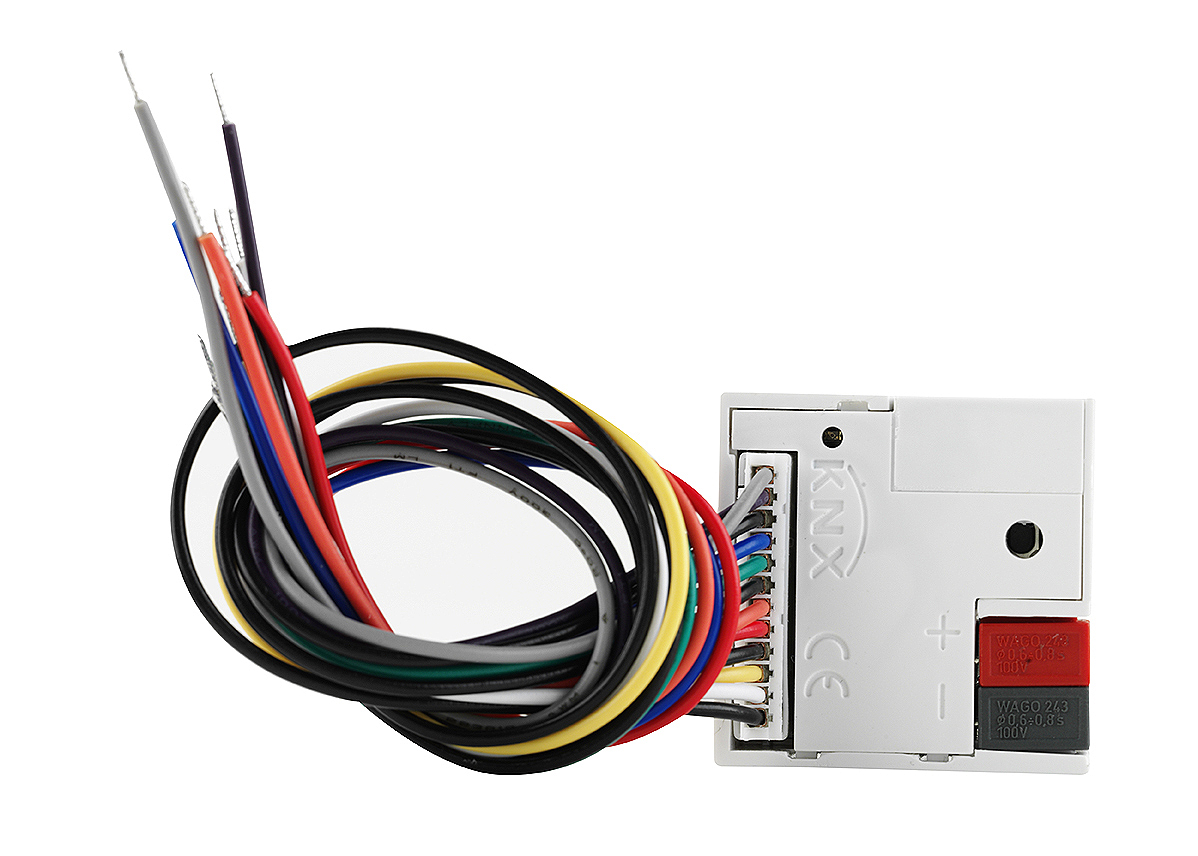

IO44D01KNX
-
-
-
IO62D01KNX
-
-
-
IOxxD01ACC
-
WHITE
-
