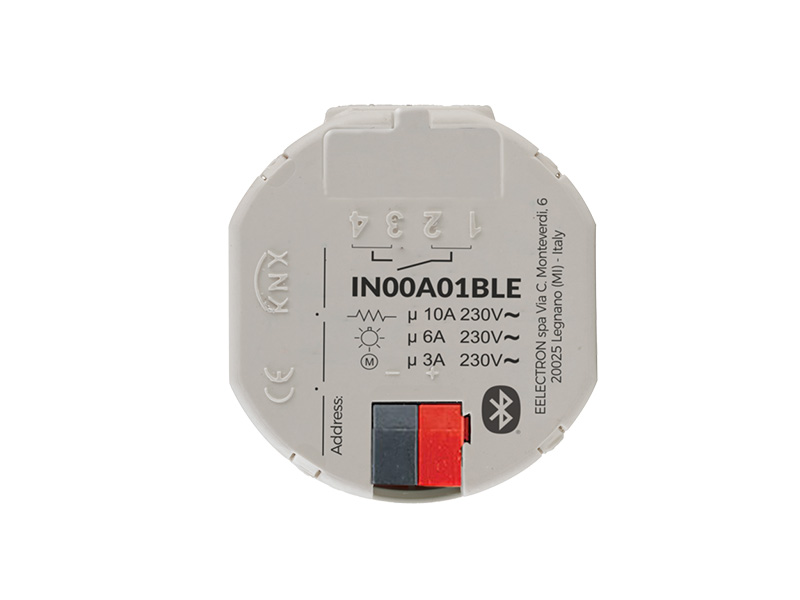

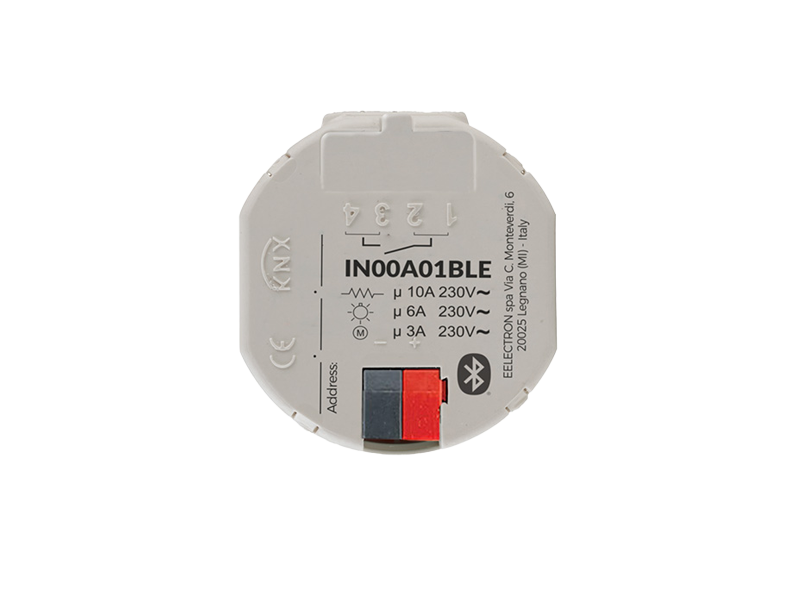

Otomo-KNX gateway is a flush-mounted KNX Wireless device that has the function of a two-way gateway between the KNX bus and the OTOMO Bluetooth® mesh network.
Contact our team to get all your questions answered
The communication between the two systems makes it possible to introduce the advantages of the typical functions of an OTOMO system into KNX installations, such as the recognition of the presence of a user in an environment via Mobile App and Beacon or the exchange of information, commands, statuses between the two installations.
It includes 2 analog inputs for connecting a temperature and brightness probe BT01A01OTO and a 10A – 230V dry contact relay. The device includes a thermostat capable of managing 2 stages with integrated PI controller for driving heating and cooling equipment, valves, 2 and 4-pipe fan coils, etc.
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| IN00A01BLE |
|
-
|
-
|
- |
