SO08A01KNX
The switches SO08A01KNX of the OL-U® KNX series for wall installation for 2 and 3 modules (502-503), are equipped with 4/8 mechanical buttons (8/16 channels) for managing on/off commands, dimmers, rolling shutters and venetian blinds, or other programmable command and control functions.
The device integrates a two-stage thermostat with integrated PI controller for driving heating, cooling, valves, 6-way valves, 2-pipe and 4-pipe fan coils. On the front of the SO08A01KNX device there is a capacitive bar with swipe function for the implementation of programmable KNX functions. A freely configurable RGB LED bar is also available for displaying statuses or other quantities available on the KNX bus.
The device has 32 logic blocks with which to create simple expressions with logical or threshold operator, or complex expressions with conditional algebraic operators and use predefined algorithms such as proportional temperature and humidity controls or dew point calculation. The device also integrates the “Virtual Holder Logic”. The field of application is the hotel room: by means of a magnetic sensor installed on the door and connected to a digital input, accurate presence information is managed. The presence detection solution can infer the presence of people in the room using one or more dedicated sensors. It also detects an accidental presence and is able to differentiate multiple behaviors.
The OL-U® KNX series is available in various colors and can be installed on a 2 or 3 module (502-503) and is compatible with the main standards (Italian, German, British, Swiss). The device can be configured via the ETS application program and can communicate with the KNX Data Secure protocol. KNX communication interface is included.
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| SO08A01KNX |
|
HARDWARE |
-
|
8/16 |
| FO71A01-2M |
|
FRAME DI MONTAGGIO
|
-
|
- |
| FO71A01-3M |
|
FRAME DI MONTAGGIO
|
-
|
- |
| FOXXA01-7171 |
|
FRAME DI MONTAGGIO
|
-
|
- |
| FOXXA01-7171S |
|
FRAME DI MONTAGGIO
|
-
|
- |
| BK08PLR |
|
KIT TASTI
|
-
|
- |
| BK04PLL-1 |
|
KIT TASTI
|
BIANCO
|
- |
| BK04PLL-3 |
|
KIT TASTI
|
NERO
|
- |
| BK04PLL-4 |
|
KIT TASTI
|
BIANCO HELVETIA
|
- |
| BK24PLL-1 |
|
KIT TASTI
|
BIANCO
|
- |
| BK24PLL-3 |
|
KIT TASTI
|
NERO
|
- |
| BK24PLL-4 |
|
KIT TASTI
|
BIANCO HELVETIA
|
- |
| BK42PLL-1 |
|
KIT TASTI
|
BIANCO
|
- |
| BK42PLL-3 |
|
KIT TASTI
|
NERO
|
- |
| BK42PLL-4 |
|
KIT TASTI
|
BIANCO HELVETIA
|
- |
| BK08PLL-1 |
|
KIT TASTI
|
BIANCO
|
- |
| BK08PLL-3 |
|
KIT TASTI
|
NERO
|
- |
| BK08PLL-4 |
|
KIT TASTI
|
BIANCO HELVETIA
|
- |
| BK04PL0-1 |
|
KIT TASTI
|
BIANCO
|
- |
| BK04PL0-3 |
|
KIT TASTI
|
NERO
|
- |
| BK24PL0-1 |
|
KIT TASTI
|
BIANCO
|
- |
| BK24PL0-3 |
|
KIT TASTI
|
BIANCO
|
- |
| BK42PL0-1 |
|
KIT TASTI
|
BIANCO
|
- |

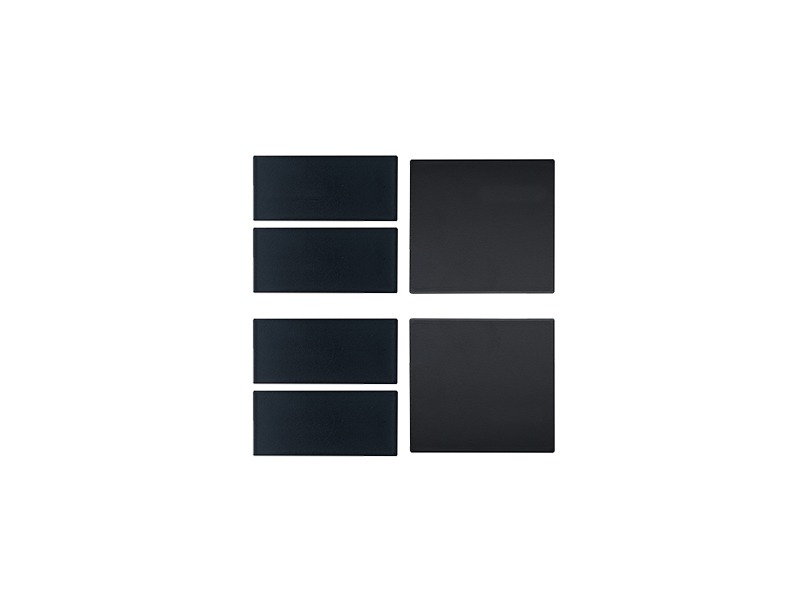

| BK42PL0-3 |
|
KIT TASTI
|
NERO
|
- |
| BK08PL0-1 |
|
KIT TASTI
|
BIANCO
|
- |
| BK08PL0-3 |
|
KIT TASTI
|
BIANCO
|
- |
| PO71A01PL-1 |
|
PLACCHE
|
BIANCO
|
- |
| PO71A01PL-3 |
|
PLACCHE
|
NERO
|
- |
| PO71A01PL-4 |
|
PLACCHE
|
BIANCO HELVETIA
|
- |
| PO71A03PL-1 |
|
PLACCHE
|
BIANCO
|
- |
| PO71A03PL-3 |
|
PLACCHE
|
NERO
|
- |
| PO71S01PL-1 |
|
PLACCHE
|
BIANCO
|
- |
| PO71S01PL-3 |
|
PLACCHE
|
NERO
|
- |
| PO71S01PL-4 |
|
PLACCHE
|
BIANCO HELVETIA
|
- |
| PO71A71PL-1 |
|
PLACCHE
|
BIANCO
|
- |
| PO71A71PL-3 |
|
PLACCHE
|
NERO
|
- |
| PO71A71PL-4 |
|
PLACCHE
|
BIANCO HELVETIA
|
- |
| SFBOA17-1 |
|
ACCESSORIO
|
BIANCO
|
- |
| SFBOA17-3 |
|
ACCESSORIO
|
NERO
|
- |
| SFBOA17-4 |
|
ACCESSORIO
|
BIANCO HELVETIA
|
- |
| SFBOA25-1 |
|
ACCESSORIO
|
BIANCO
|
- |
| SFBOA25-3 |
|
ACCESSORIO
|
NERO
|
- |
| SFBOA25-4 |
|
ACCESSORIO
|
BIANCO HELVETIA
|
- |
