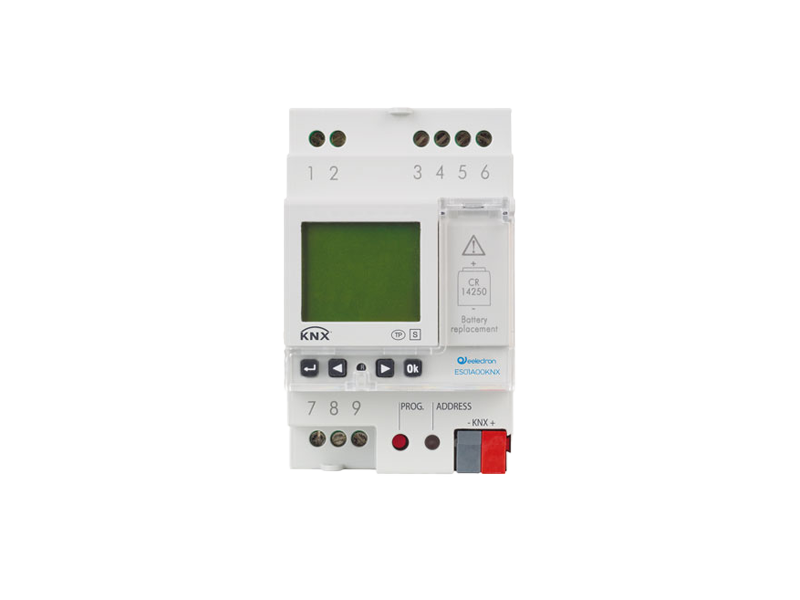

ES01A00KNX

KNX time/Astronomical Master

ES01A00KNX is a digital electronic clock for the time management of electrical utilities.

Technical highlights & Configuration

Core Features

It allows hourly (periodicity: daily, weekly or annual) or astronomical programming. The KNX ES01A00KNX time/astronomical clock is able to drive 9 different channels on KNX buses. Channel 1 programming is also replicated on the relay located on board the device. Each channel can be associated with a different programming (hourly or astronomical). It also offers the possibility of connecting via BUS a GPS module, ES01A00ACC (available as an accessory), which allows the acquisition of the time and position through the satellite system, ensuring greater accuracy over time.

Technical Data

– Hourly (daily, weekly, monthly or annual) or astronomical programming
– Available programs: on/off, pulse, holiday, casual, night (astronomical)
– 9 different channels on KNX bus (the behavior of the first channel is reproduced on the on-board relay)
– Maximum number of programs that can be stored: 450 (900 events) that can be divided into 9 channels
– Ability to automatically capture date, time and geographical location by connecting the additional GPS module ES01A00ACC
– Automatic Daylight Saving Time Update
– Correction of calculated sunrise and sunset time: ± 120 minutes
– Random switching function of the outputs
– Manual forcing of channel status (temporary or permanent)
– Possibility to copy the programs of one channel to other channels
– Menu in five languages: Italian, English, Spanish, German, French
– Keypad lock via password
– Backup battery (type CR 14250) replaceable without disassembling the device

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

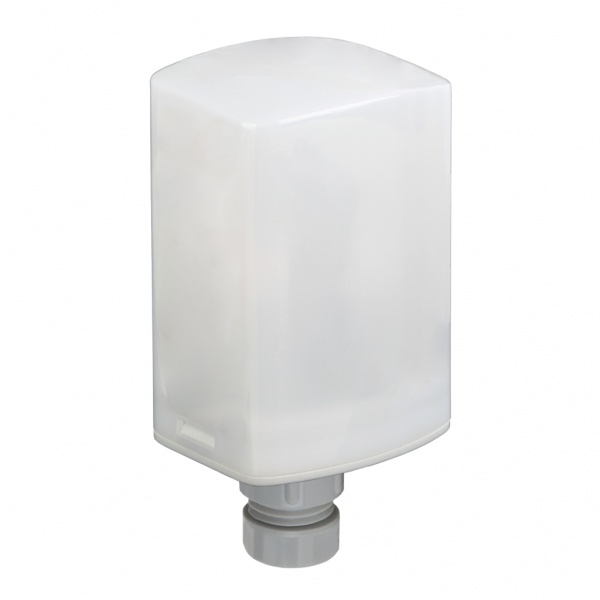

ES01A00ACC
ACCESSORY
-
-
