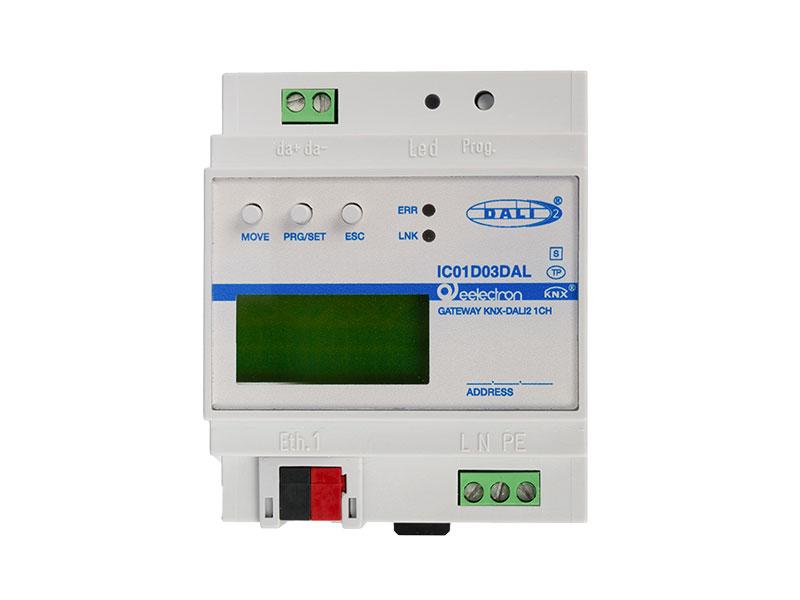

IC01D03DAL

KNX DALI GATEWAY – 1 CHANNEL – Multi Master Application Controller, MQTT

The Gateway IC01D03DAL is a multi-master application controller for the control of electronic ballasts with DALI interface via the KNX installation bus.

Technical highlights & Configuration

Core Features

The device converts switch-on and control commands from the connected KNX bus into DALI telegrams or status information and events from the DALI bus into KNX telegrams.
With the Dali Gateway, it is also possible to implement constant light control via the connected DALI-2 sensors.

Technical Data

With constant light monitoring, the brightness value measured by the sensor is compared with the setpoint value and the degree of illumination is automatically adjusted to the setpoint value.
The IC01D03DAL has a DALI output that can control up to 64 ECGs. ECGs can be checked in 16 groups.
In addition, it is possible to connect up to 8 DALI2 motion detectors or light sensors, up to a maximum of 8 DALI buttons (4 channels per device) and integrate up to a maximum of 8 generic DALI inputs (physical quantities) as per IEC 62386 standard. Multi-master operation is permitted in accordance with EN 62386-103 ed2.

Mounting & Compatibility

It supports DALI1, DALI2 ballasts, DALI2 motion sensors, and light sensors. With constant light monitoring, the brightness value measured by the sensor is compared with the setpoint value and the degree of illumination is automatically adjusted to the setpoint value.
The IC01D03DAL has a DALI output that can control up to 64 ECGs. ECGs can be checked in 16 groups.
In addition, it is possible to connect up to 8 DALI2 motion detectors or light sensors, up to a maximum of 8 DALI buttons (4 channels per device) and integrate up to a maximum of 8 generic DALI inputs (physical quantities) as per IEC 62386 standard. Multi-master operation is permitted in accordance with EN 62386-103 ed2.

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

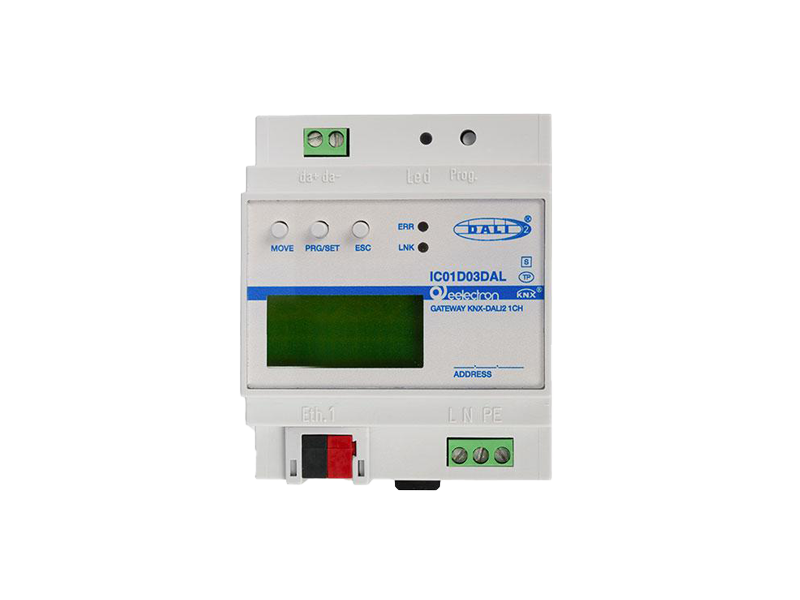

IC01D03DAL
-
-
-
