Key features:
• Control and monitoring of KNX devices
• Simple and intuitive navigation through floor plans and zones
• Up to 512 configurable pages, with up to 8 control functions per page (more than 4000 functions)
• Customizable background images
• User-editable scenes
• Weekly hours
• Alarm monitoring with event log
• Simulation of presence with day and night schedules
• Logic functions (logic gates, comparators, timers, etc.)
• Four independent thermostats
• Touch gestures: 4 directional gestures + multitouch gesture
• Video door entry function, with full duplex audio and echo cancellation (**)
• IP Camera Monitoring (**)
• Remote control from smartphones, tablets and PCs
• Built-in stereo speakers and digital microphone
• Four multifunction inputs, individually configurable as binary inputs or temperature probes (see probe code TS01I01ACC)
• Real-time clock (RTC) with battery backup
• Integrated KNX bus coupling unit
• Very low power consumption
Available in GLASS (all-glass front) and CLASSIC (interchangeable front frames) models.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| TP70I01ACC |
|
ASSEMBLY BOX
|
-
|
- |
| TP70I12KNX-GL-1 |
|

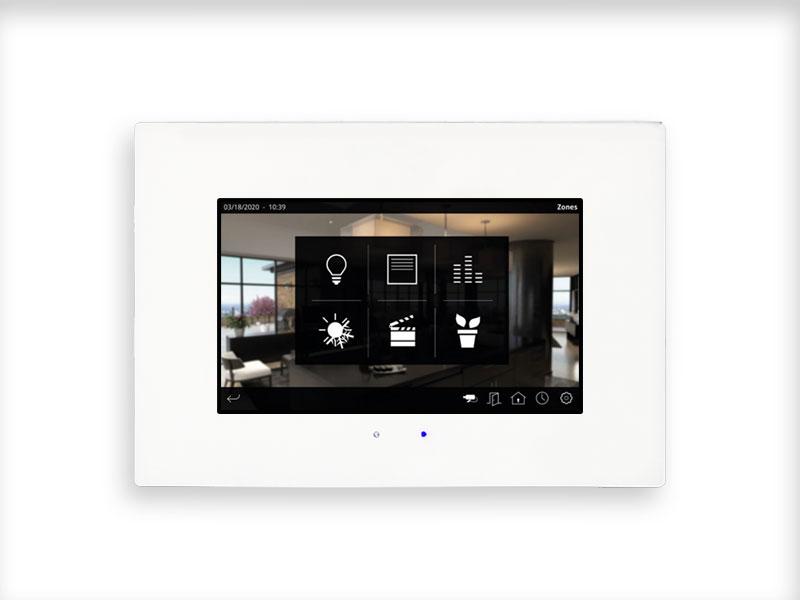

TOUCH PANEL
|
WHITE
|
- |
| TP70I12KNX-GL-3 |
|

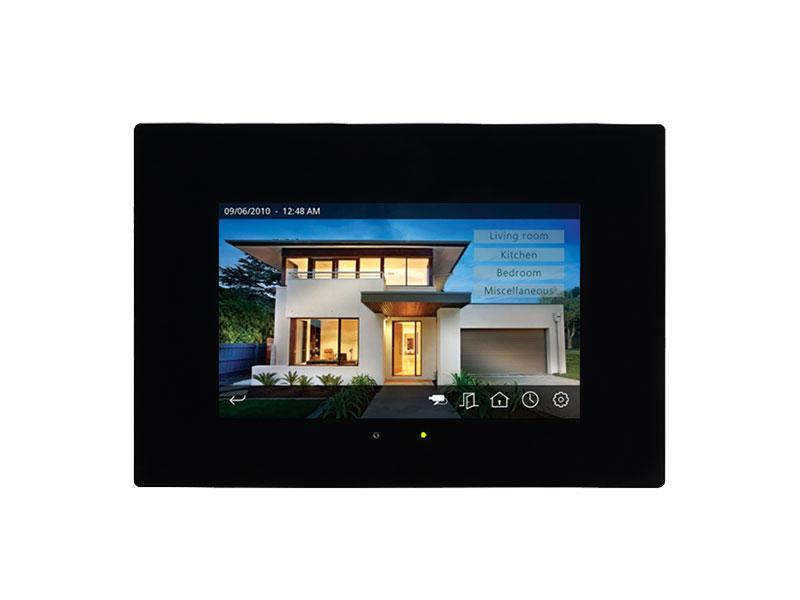

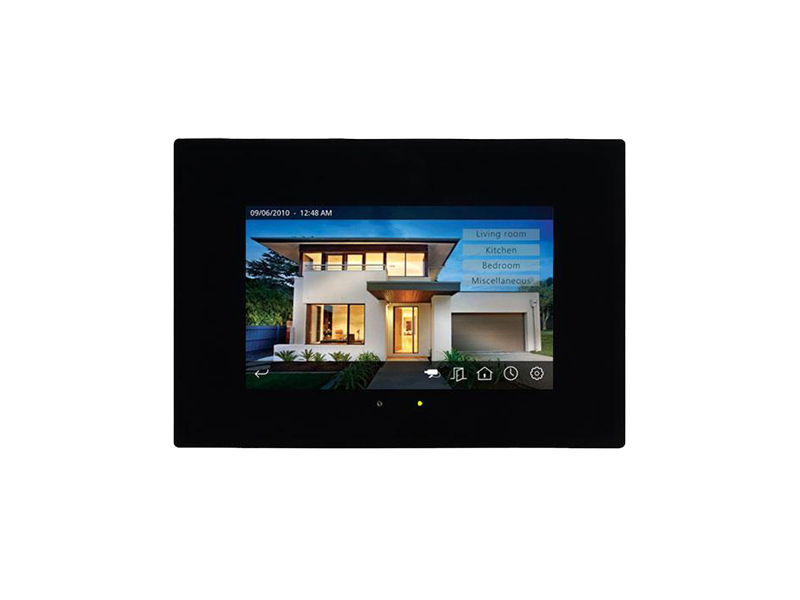

TOUCH PANEL
|
BLACK
|
- |
| TP70I12KNX-PL-1 |
|
TOUCH PANEL
|
WHITE
|
- |
| TP70I12KNX-PL-3 |
|
TOUCH PANEL
|
BLACK
|
- |
