TP43M11KNX-GL-X

KNX 4.3″ Capacitive Touch Panel – IP Connectivity

The touch panel is equipped with a 4.3-inch display for viewing and controlling KNX systems. Available in a white or black glass finish, it can be installed in portrait or landscape mode.

Technical highlights & Configuration

Core Features

Main functions:
• Up to 48 control functions, organized in 6 configurable
pages• User-editable
favorites page• Configurable
background images• Weekly schedules (up to 48 channels, 4 programs/channel)
• Alarm monitoring (up to 48 alarms) with event
log• Touch performance: up to 5 quick actions without leaving the energy-saving
mode• Built-in
scenario module• Two independent
thermostats• Four multi-function inputs, individually configurable as binary inputs or temperature
probes• Integrated
temperature sensor• Internal clock (RTC) with battery backup
• Integrated
KNX bus coupling unit• Extremely low power consumption

Mounting & Compatibility

The device is equipped with an Ethernet connector and supports remote control from smartphones and tablets via eTouch-App, available for both iOS and Android

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

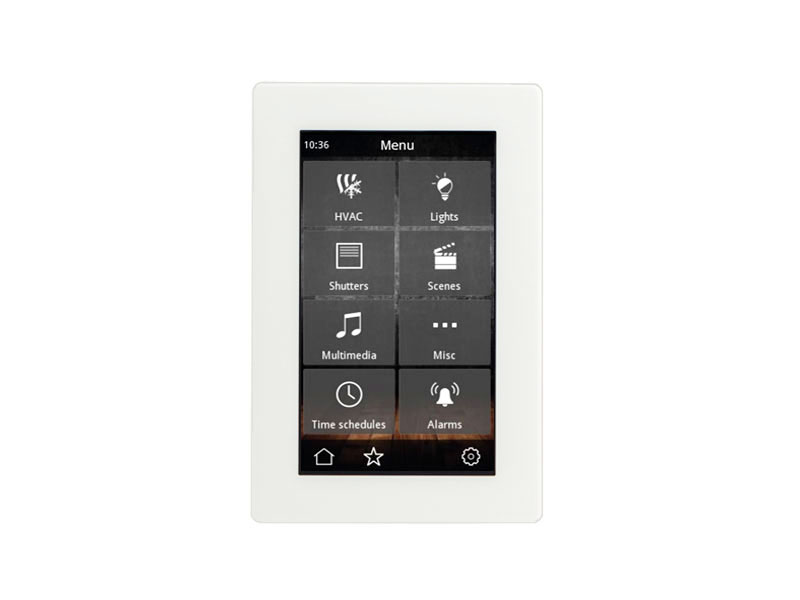

TP43I11KNX-1
TOUCH PANEL
WHITE
-

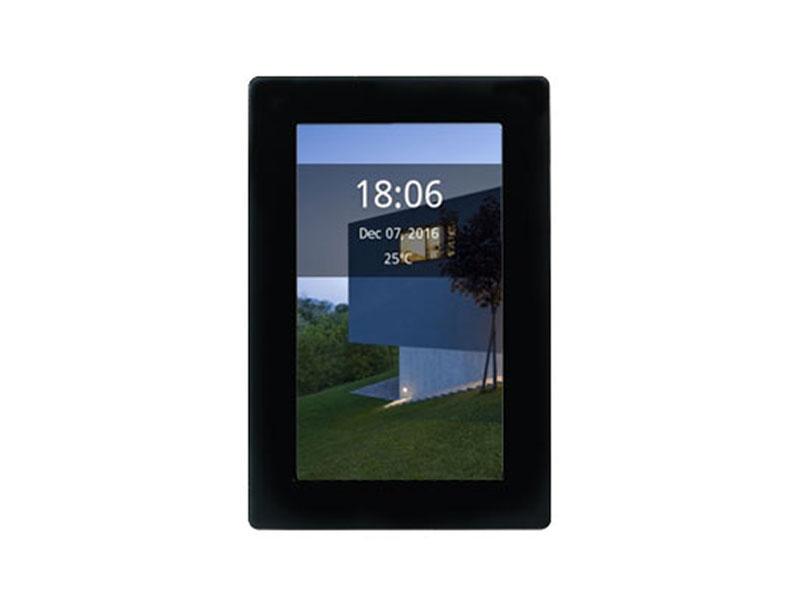

TP43I11KNX-3
TOUCH PANEL
BLACK
-
