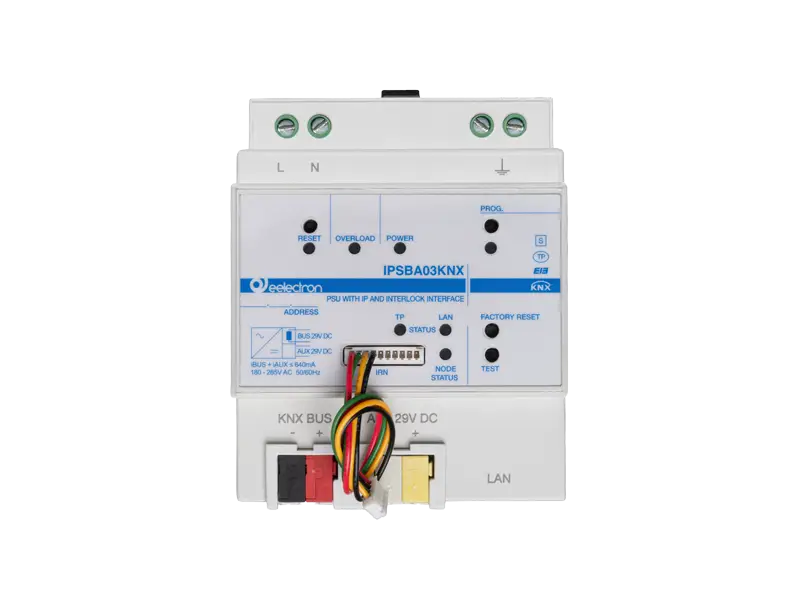

IPSBA03KNX
The IPSBA03KNX device integrates a KNX power supply with auxiliary output capable of delivering a total of 640mA, and an IP interface, allowing KNX installations to be implemented quickly and efficiently.
The device works in accordance with KNXnet/IP specifications; up to 5 different IP addresses can be assigned. The device is also a KNX bus node, with its own application program and can be configured with ETS® to communicate with the KNX Data Secure protocol. By enabling the “Other power supplies on the BUS line” parameter of ETS, it is possible to install two devices on the same bus line, at a minimum distance of 200 meters. There is also the control logic called “Surveillance” which monitors that the KNX TP devices (up to 128) of the subnet connected to the power supply are operational “Online” by alerting the backbone if one of these passes into the “Offline” state. On the device there are buttons and signal LEDs for bus reset operations as well as for Factory Reset or for viewing the activity on the KNX bus and on the IP backbone. There is also a test button for simulating the opening/closing of the locks.
The voltage of the bus output as well as that of the auxiliary output is 29V DC.
The IPSBA03KNX device integrates a KNX power supply with auxiliary output capable of delivering a total of 640mA, and an IP interface, allowing KNX installations to be implemented quickly and efficiently.
The voltage of the bus output as well as that of the auxiliary output is 29V DC.
The IP address can be obtained via DHCP server or configured manually via ETS®.
The device works in accordance with KNXnet/IP specifications; up to 5 different IP addresses can be assigned. The device is also a KNX bus node, with its own application program and can be configured with ETS® to communicate with the KNX Data Secure protocol.
By enabling the “Other power supplies on the BUS line” parameter of ETS, it is possible to install two devices on the same bus line, at a minimum distance of 200 meters.
The bridge also has an input for wiring an inRoom Node (IRN) module for wireless control of SALTO® locks.
There are also 48 logic blocks with which to create simple expressions with logical or threshold operators, or complex expressions with conditional algebraic operators and use predefined algorithms such as proportional temperature and humidity controls or dew point calculation.
The IP address can be obtained via DHCP server or configured manually via ETS®. By enabling the “Other power supplies on the BUS line” parameter of ETS, it is possible to install two devices on the same bus line, at a minimum distance of 200 meters. The bridge also has an input for wiring an inRoom Node (IRN) module for wireless control of SALTO® locks. The device also integrates the “Virtual Holder Logic”. The field of application is the hotel room: by means of a magnetic sensor installed on the door and connected to a digital input, accurate presence information is managed. The presence detection solution can infer the presence of people in the room using one or more dedicated sensors. It also detects an accidental presence and is able to differentiate multiple behaviors.
