Multifunction inwall Mounted Module 4 IN / 2 OUT, BLE BEACON, KNX SECURE

KNX

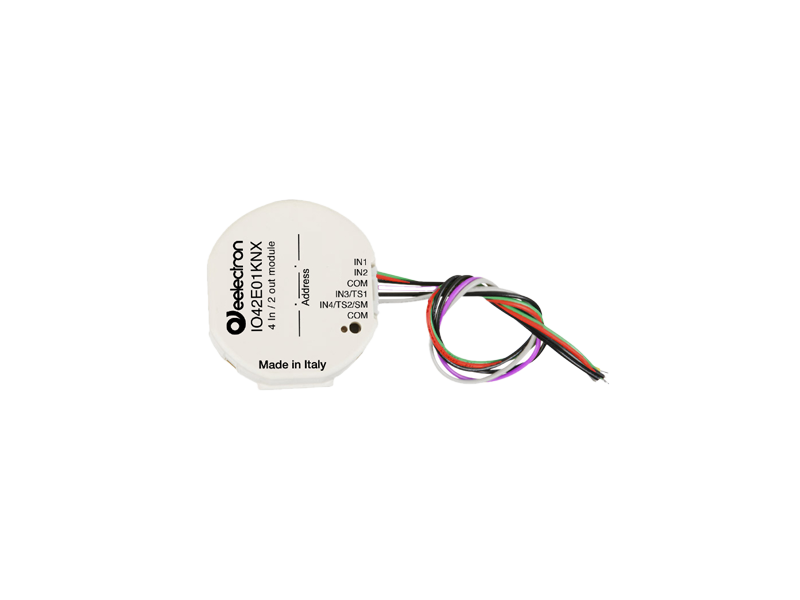

The IO42E01KNX module is an input and output interface device and can be configured with ETS® to communicate with the KNX Data Secure protocol.

Download Resources

Download Datasheet

Technical highlights & Configuration

Core Features

The module includes:
• 2 digital
inputs• 1 digital / analog
input• 1 digital / analog / smart sensor
input• 2 relay outputs (bistable)

Technical Data

The digital inputs can be connected to dry contacts and interface sensors, traditional buttons, etc. They can be configured to send on/off commands on the bus, for dimmers or shutters, scenarios and sending sequences of 3 telegrams.
Inputs 3 and 4 can be configured as analog to manage NTC temperature probes (see eelectron probes code TS01A01ACC/ TS01B01ACC/ TS01D01ACC) with which to send the temperature measurement on the bus or manage a complete thermostat module. The thermostat manages 2 stages with integrated PI controller for driving heating and cooling equipment, including valves, 2 and 4-pipe fan coils.
Input 4 can be configured as a “smart sensor” for the connection of plug-in sensors: SM03E01ACC which includes a temperature sensor (range from -5°C to +50°C) and a CO2 sensor (range from 10 ppm to 1000 ppm) and SM03E02ACC which includes a temperature sensor (range from -5°C to +50°C) and a VOC sensor for the measurement of Indoor Air Quality (IAQ) and CO2 equivalent (eCO2).

Mounting & Compatibility

The device provides that the 2 outputs can be configured in the following ways:
• For the control of general loads (2 independent channels).
• For the control of roller shutters, in coupled mode (1 channel consisting of both relays).
• For the control of a servo motor, in coupled mode.
• For control with logic interlock.

The device integrates an antenna with BEACON BLE (Bluetooth Low Energy) function. Data format compatible with iBeacon® and Eddystone®.
The device allows you to set the transmission frequency and signal strength.
BLE technology allows messages to be sent to mobile devices. These devices must be equipped with an app that allows them to receive information from BLE beacons.
