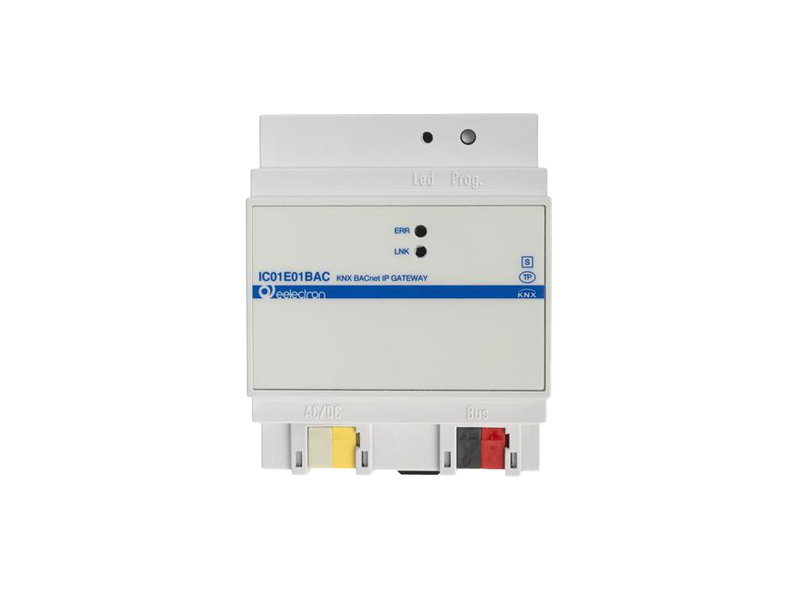

IC01E01BAC

KNX-BACnet GATEWAY

The IC01E01BAC gateway acts as an interface between KNX and BACnet.

Technical highlights & Configuration

Core Features

Parameterized KNX communication objects are translated as BACnet objects and can therefore communicate in the BACnet world. A BACnet client can register via a so-called COV-Subscription and be automatically informed about KNX events or use the read property service to request the status of objects as required.

Technical Data

Diagnostic functions to support supervisory management.

250 items available.

Off/on objects are translated as binary, while others become analog objects (Input, Output, Value).

Web Server to view the configuration and status of objects.

Additional low safety voltage of 24VDC required

Mounting & Compatibility

The module is supplied in a 4-gang DIN rail housing and can be installed in a standard distribution board. The configuration and commissioning of the device require the use of the ETS® (Engineering Tool Software) program V4 or later.

KNX communication interface is included.

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

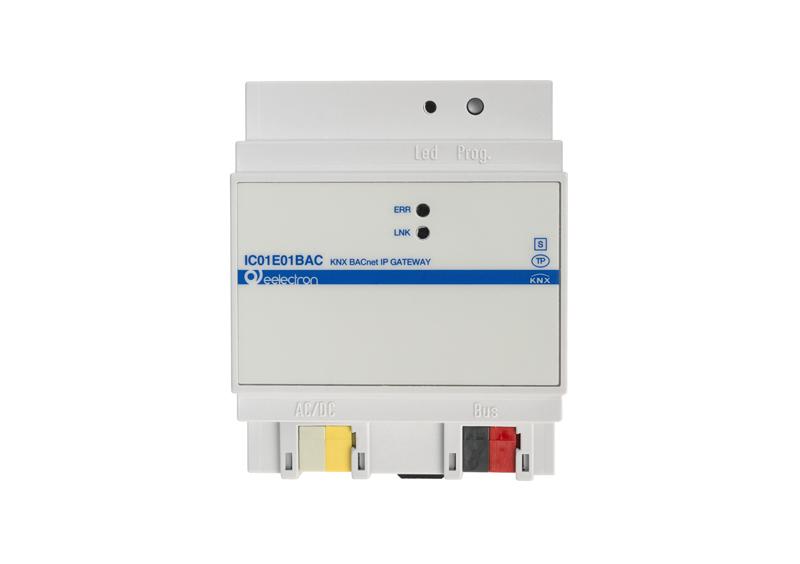

IC01E01BAC
-
-
-
