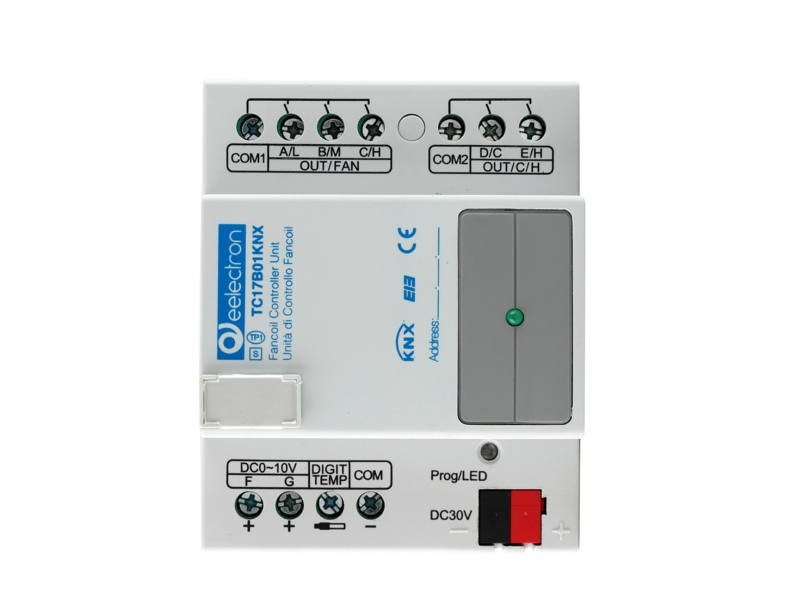

TC17B01KNX

0-10 V Fan Coil Controller

The Fan Coil Unit Controller is used to control fan coil units, floor heating or switch actuators

Technical highlights & Configuration

Core Features

Depending on the configuration of the device, the Fancoil control unit is used for 2 or 4-pipe systems, fans up to 3 speeds (relays or analog outputs 0-10V) for both heating and cooling (proportionally or electrothermal valve).

Technical Data

Depending on the design of the device, fan coil units are used in 2-pipe or 4pipe systems. It controls up to 3 fan speeds (Relay or 010V ±5% outputs) as well as heating or cooling valves (Proportional or electrothermal valve) respectively. The mode of control is based on two-step control or a timediscrete PI controller with setpoint/actual value comparison. The valves and the fan can be regulated directly by devices via the closed loop of this controller. When the Fan Coil Unit Controller is used in floor heating, it can control up to seven channel. All of the floor heating channel control is used a time-discrete PI controller with setpoint / actual value comparison.

Mounting & Compatibility

Device is intended to be installed on DIN rail in cabinet for low voltage distribution.

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

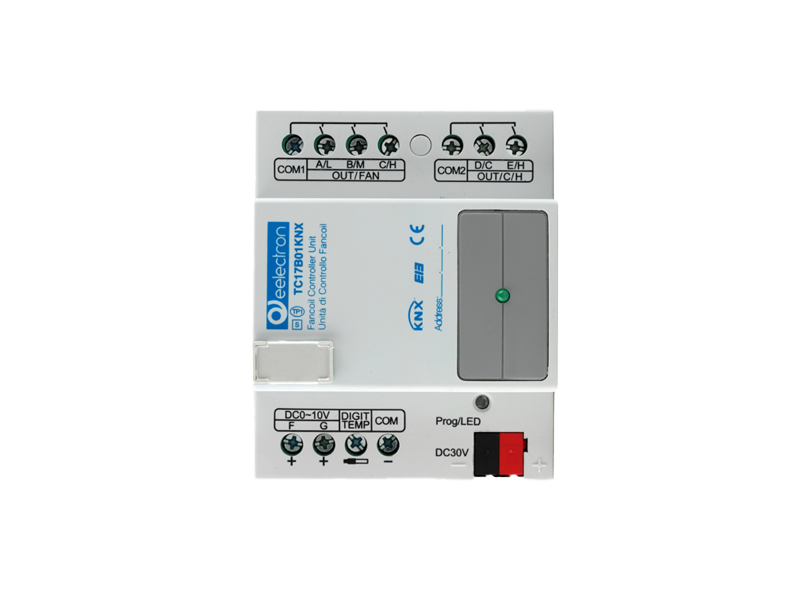

TC17B01KNX
-
-
-
