The Eelecta® HomePad KNX series of push-button panels consists of 5 models based on the number of buttons available, the presence of inputs on the back and the presence of the temperature sensor.
Contact our team to get all your questions answered
Eelecta® range of push-button panels:

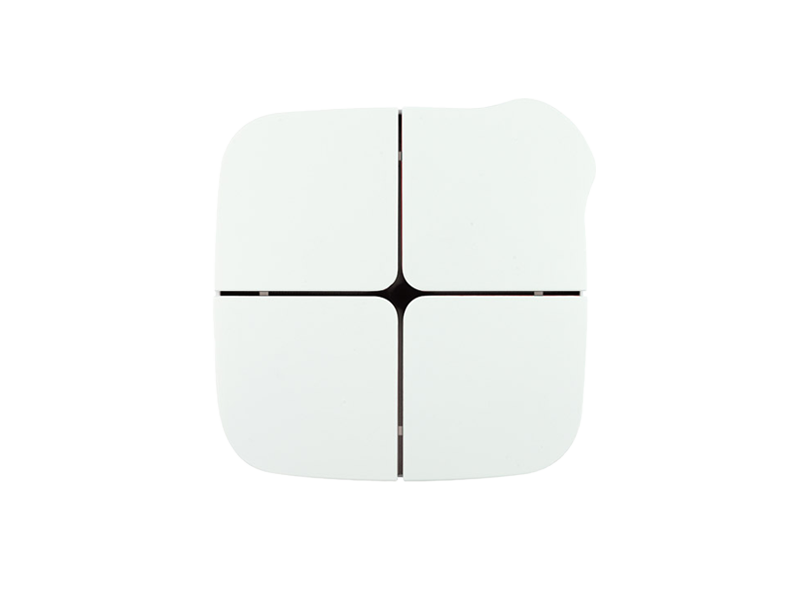

PB40AxxCON – 4 CONVENTIONAL CHANNELS
PB40BxxKNX – 4 KNX
CHANNELS PB40CxxKNX – 4 KNX CHANNELS + 4 INPUTS + TEMPERATURE
SENSOR PB80AxxKNX – 8 KNX CHANNELS + PB80CxxKNX TEMPERATURE
PROBE – 8 KNX CHANNELS + TEMPERATURE PROBE + CIRCULAR FUNCTION
The product is equipped with 4 (8) buttons that can be configured to manage lights, shutters, dimmers, etc. , as well as 4 inputs (in the versions that provide it) located at the rear and dedicated to interfacing potential-free contacts (clean – for example sensors, traditional buttons, etc.)
There are also 5 white LEDs, each freely configurable with ETS. Two versions include a temperature sensor that can also be configured as a thermostat.
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| 1A - WH |
|
HARDWARE |
WHITE CERAMIC - WHITE CROSS
|
- |
| 1C - WH |
|
HARDWARE |
WHITE CERAMIC - BLACK CROSS
|
- |
| 2C - CR |
|
HARDWARE |
CHROMO - BLACK CROSS
|
- |
| 3C - BL |
|
HARDWARE |
MATT BLACK - BLACK CROSS
|
- |
| 3D - BL |
|
HARDWARE |
MATT BLACK - RED CROSS
|
- |
