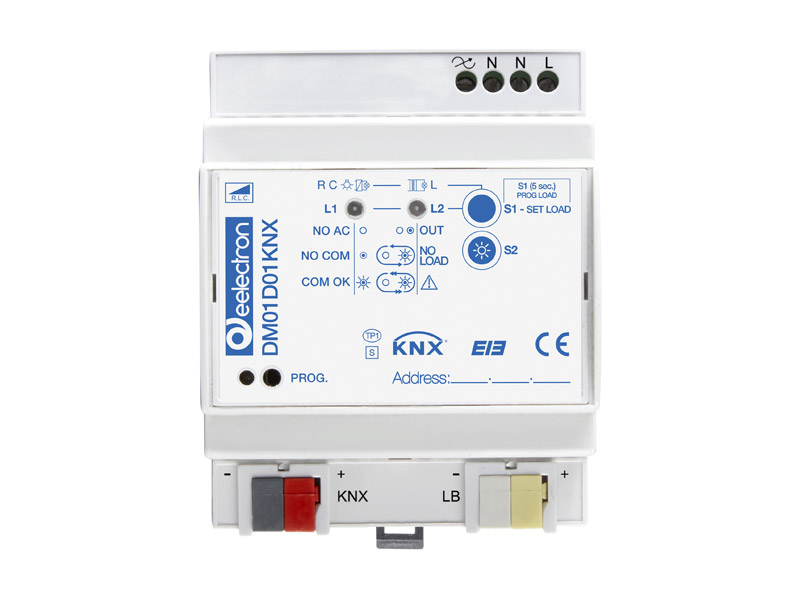

DM01D01KNX

Universal DIN Dimmer 1 OUT – Master – 700W

Universal dimmer KNX 1 channel

Technical highlights & Configuration

Core Features

DM01D01KNX is a KNX power dimmer 1-channel acting as a Master Dimmer to which you can connect up to two Slave Modules (cod. DM01D01ACC) with identical characteristics to the Master power dimmer and connected to it by a local two wires bus.

Technical Data

Each output channel can be used in the following configurations:
• Trailing Edge [RC]: The dimmer turns off part of the final part of the waveform of the input voltage resulting in reduced lamp output. This load regulation is used for resistive or capacitive loads (typically halogen lamps with electronic transformer or incandescent lamps)

• Leading Edge [L]: The dimmer turns off part of the initial part of the waveform of the input voltage, resulting in reduced lamp output. This load regulation is used for inductive loads (typically ferromagnetic transformers or toroidal) The three channels are independent and can therefore operate on different phases of the same three phase systems respecting the limit of 230Vac between phase and neutral.

Mounting & Compatibility

The product is intended for installation on DIN rail in electrical distribution cabinets.

Model Variants

For a better experience, rotate the screen horizontally.

Code Image Type Color Channels

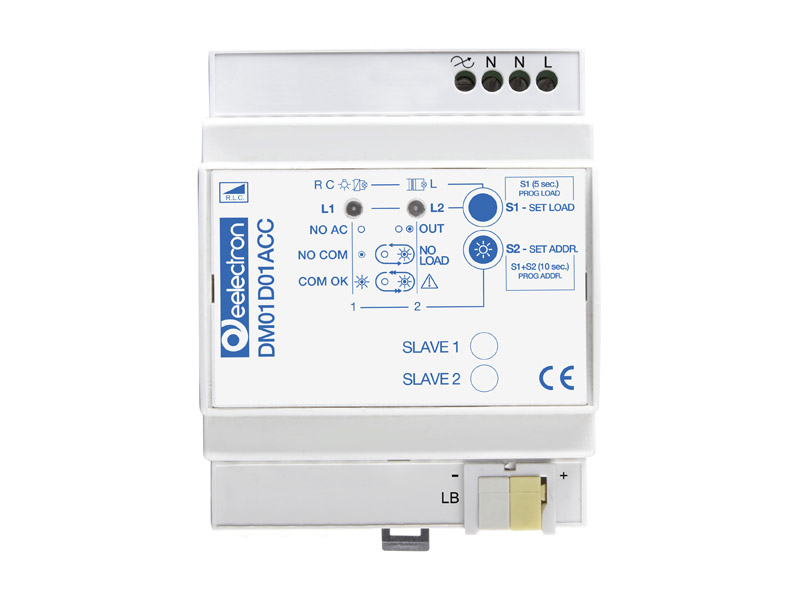

DM01D01ACC
ACCESSORY
-
-

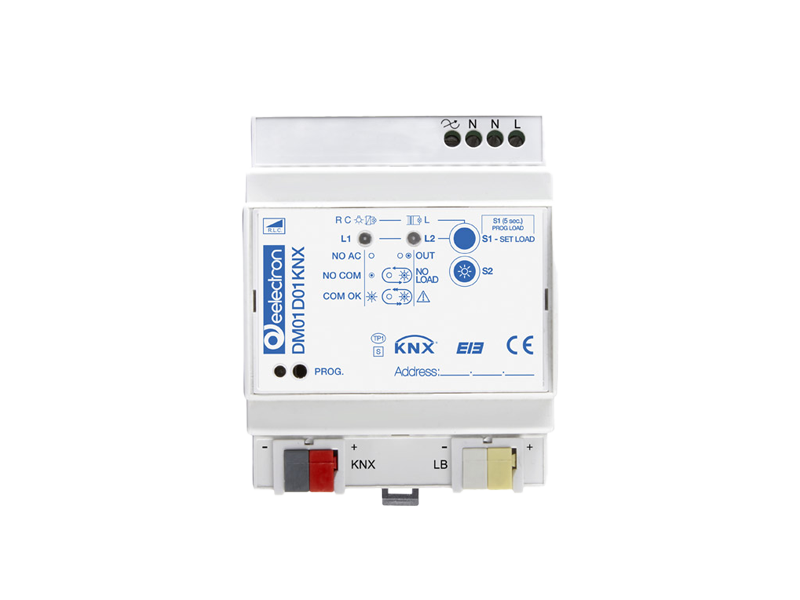

DM01D01KNX
ACCESSORY
-
-
