Dimmer is an actuator for DC powered LEDs with constant voltage (CV) control
Contact our team to get all your questions answered

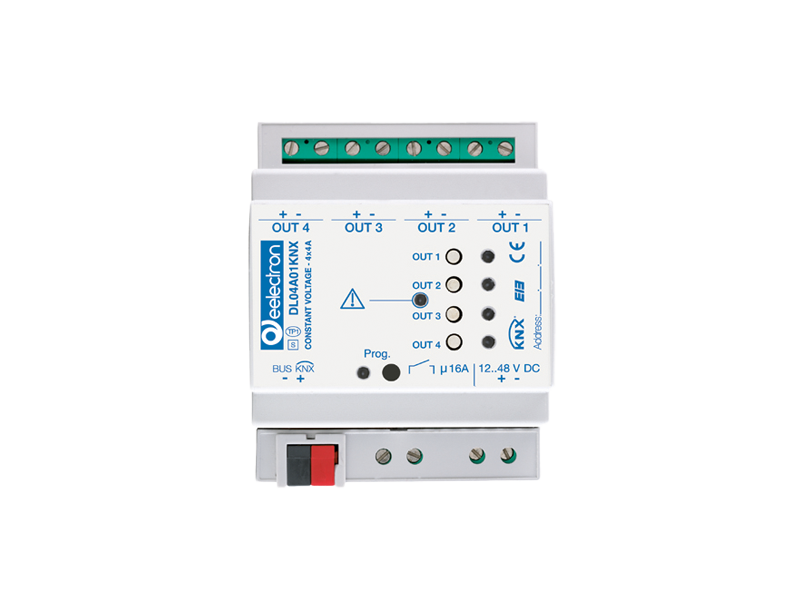

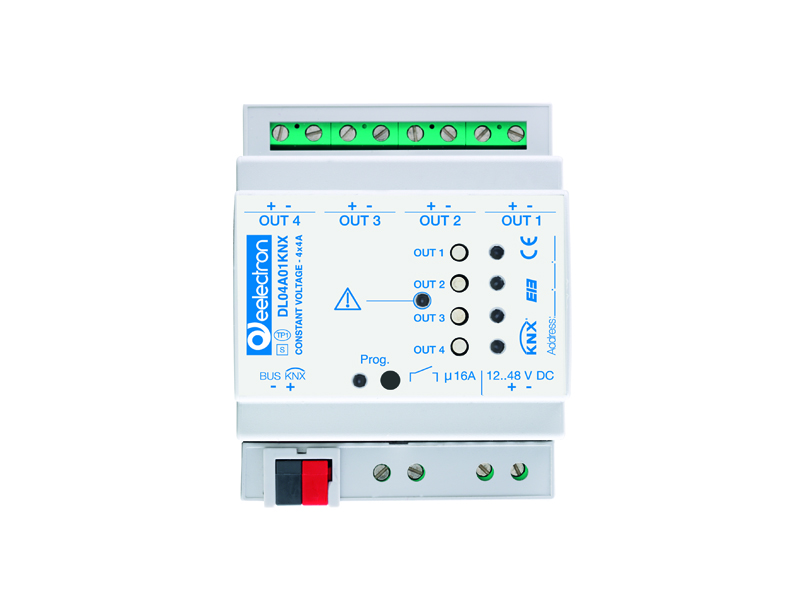

DL04A01KNX is a dimmer actuator allows to drive 4 independent channels or 1 RGB channel and 1 single color channel or 1 channel RGBW.
Module can be powered from 12 to 48V DC and consequently can manage the outputs (LED strips) with voltage from 12 to 48 V DC. The maximum current for each channel is 4A; The device includes a 16A relay, suitable for switching capacitive loads, that allows a complete shutdown of the external power supply when all loads are switched off (for example at night) ensuring the maximization of the energy saving. On the front panel of DL04A01KNX there are 4 local switching buttons with corresponding status LED and a LED for signalling faults: short circuit on the output, over-temperature, power connection with reversed polarity, insufficient auxiliary power supply voltage. Device is equipped with KNX communication interface.
Device must be installed keeping a minimum distance of 4 mm between electrical power line (not SELV, for example: mains) and input cables or red / black bus cable. The device may be used for permanent indoor installations in dry locations within wall box mounts.
For a better experience, rotate the screen horizontally.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| DL04A01KNX |
|
-
|
-
|
- |
