The product is an out-of-door transponder reader that can be installed with the supplied glass covers that can be customized on request.
Contact our team to get all your questions answered

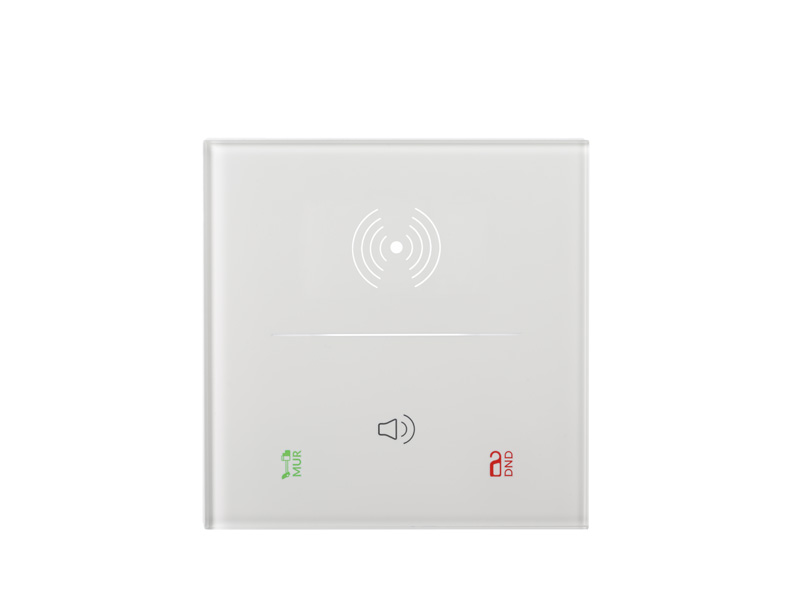

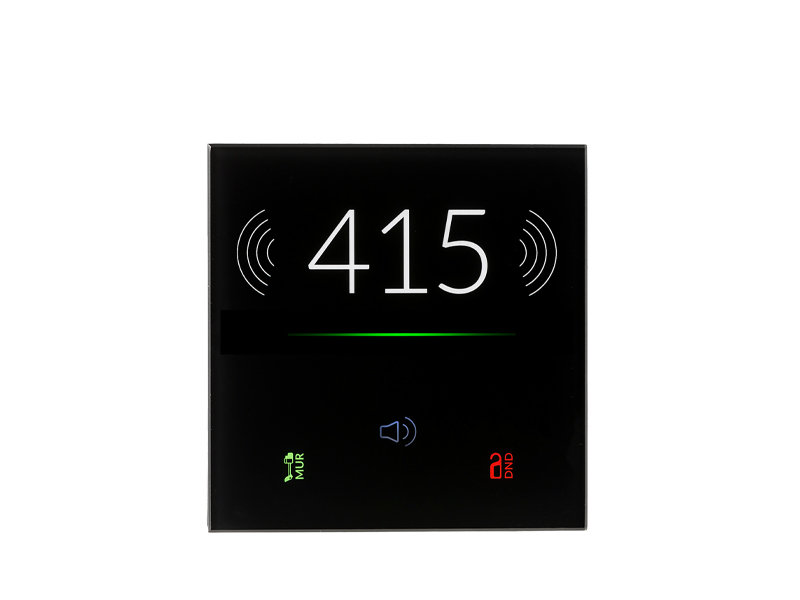

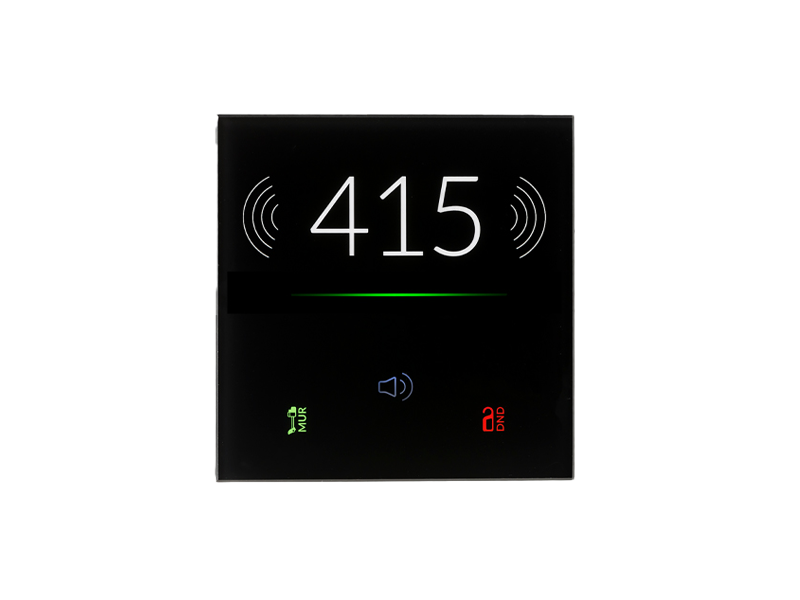

The upper part of the glass is backlit (to be able to illuminate the room number or a logo – both customizations on request); in the lower part there is 1 button (typically with a bell function) and 2 LEDs displaying the MUR and DND statuses.
The transponder is read by positioning it in front of the reader, at a maximum distance of 30 mm, The color of the RGB bar of the reader indicates the recognition of the card and shows different colors (configurable) for the signaling of statuses or anomalies such as:
Recognized card (welcome): default color Green, Wrong system code: default color Orange, Card ID not recognized: default color Red, etc. The reader also integrates a buzzer (which can be activated with the ETS parameter) for the sound signaling of anomalies.
The 9025 KNX® series can be installed on a 2 or 3 module box and is compatible with the main standards (Italian, German, English, etc.).
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|
| 9025GTR03L01 |
|
COVER |
WHITE
|
3 |
| 9025GTR03L03 |
|
COVER |
BLACK
|
3 |
| 9025PTR03L01 |
|
COVER |
WHITE
|
3 |
| 9025PTR03L03 |
|
COVER |
BLACK
|
3 |

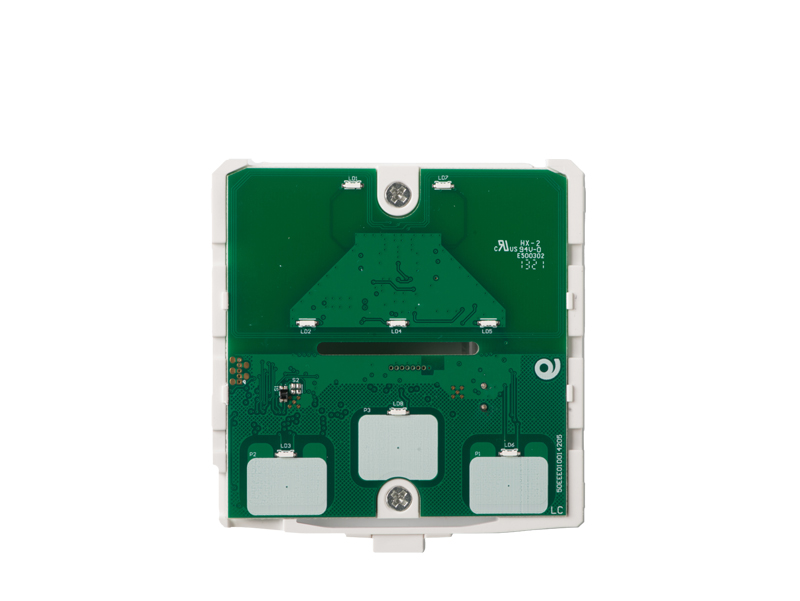

| TR00C01KNX-1 |
|
HARDWARE |
WHITE
|
- |

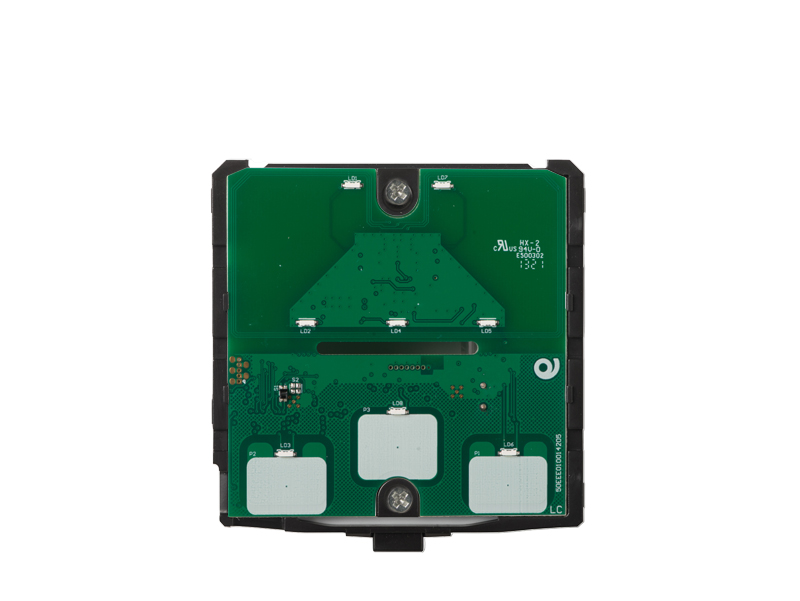

| TR00C01KNX-3 |
|
HARDWARE |
BLACK
|
- |
