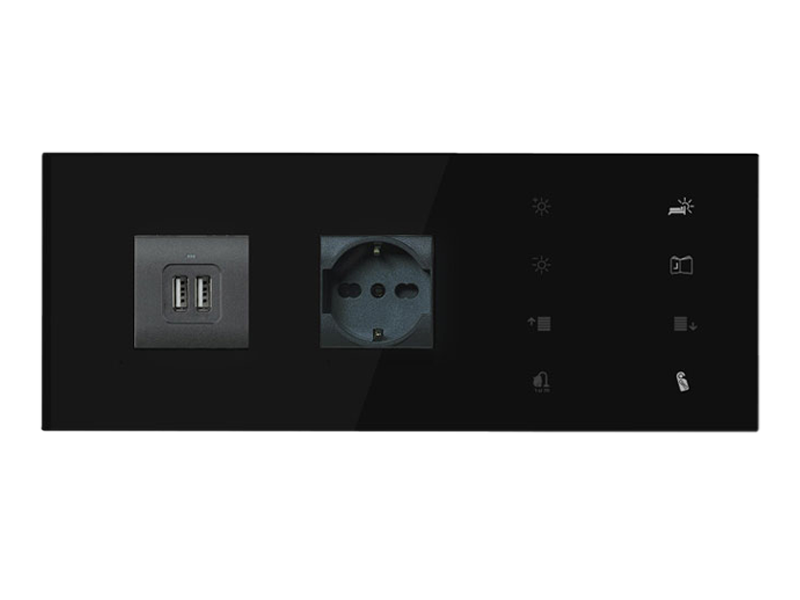

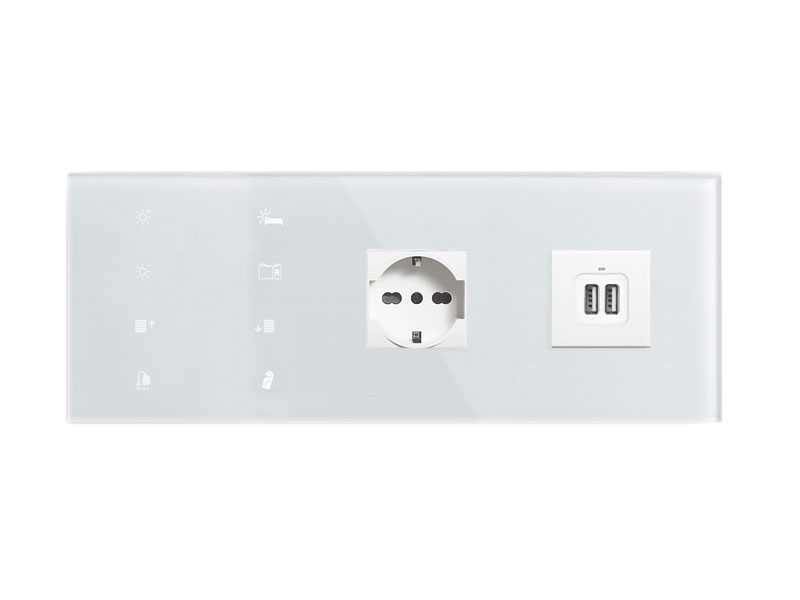

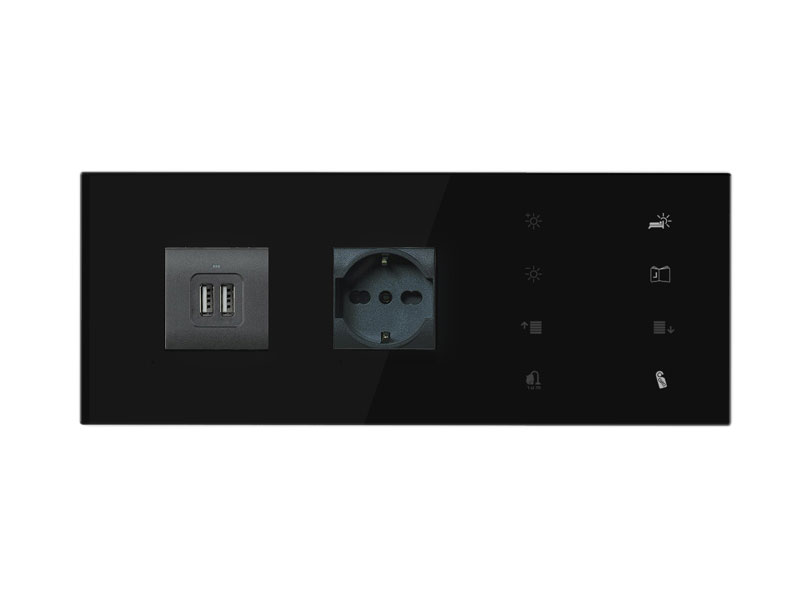

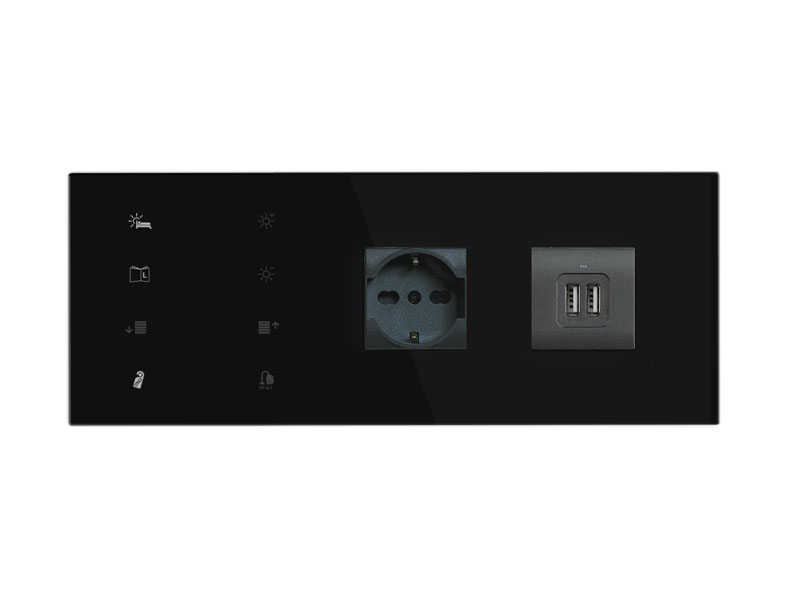

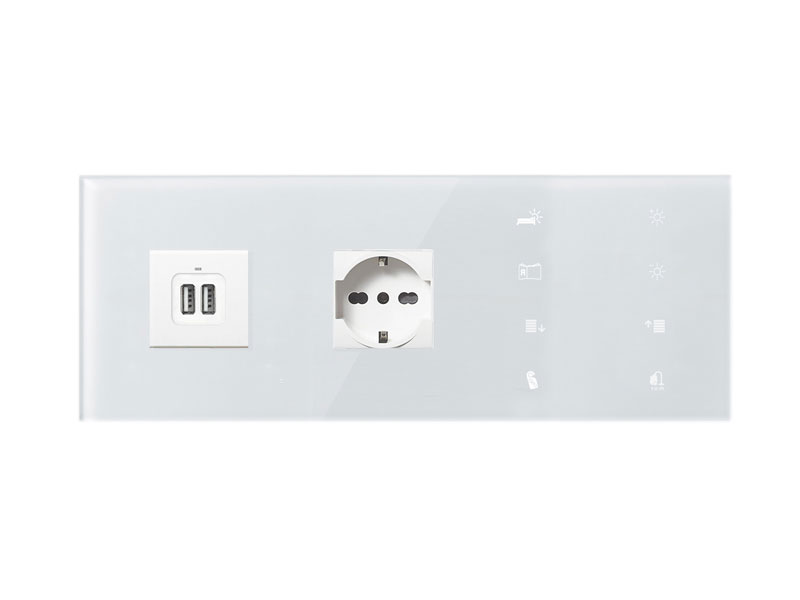

9025 Custom Bedside Frame – 2 Sockets

The Bedside 9025 KNX® is a control interface designed for hospitality environments, designed to offer the guest simple and intuitive control of the main functions of the room.

Integrated in the 9025 series, the device allows the management of lighting, scenarios, blinds and shutters, service functions (Do Not Disturb / Make Up Room) and other customizable logics, ensuring maximum configuration flexibility through ETS.

Thanks to capacitive technology and the design coordinated with the glass plates of the 9025 series, the bedside combines aesthetic elegance and functional reliability, ensuring harmonious integration with the architecture of the room.

Designed for hotels, resorts, residences and hospitality environments in general, the Bedside 9025 helps to improve the guest experience, while simplifying operational management for staff.

A solution dedicated to comfort, efficiency and quality of service.

Download Resources

Download Datasheet

Contact

Technical highlights & Configuration

Core Features

The button can be configured to manage on/off commands, dimmers, shutters and blinds, execution and learning of scenarios, sequences of objects, etc.
The device includes a 2-stage thermostat with integrated PI controller for driving heating and cooling appliances, valves, 2 and 4-pipe fan coils, etc.
The device has a temperature probe on board and is equipped with an input on the rear side that can be configured as digital or analog; in fact, it is possible to connect an additional NTC probe (eelectron code TS01A01ACC or TS01B01ACC – not included) to the rear 2-way connector to obtain a second temperature measurement.

Mounting & Compatibility

The KNX glass front plate, as in the CUSTOM version of the 9025 series, has the possibility of backlighting customized and interchangeable icons to be associated with the configured function. The product was created to provide a complete solution to the hotel sector by giving the possibility to customize the device through dedicated icon sets, 4 sockets (2+2) – not included – and a minimal design according to the standards of the application.

Model Variants

For a better experience, rotate the screen horizontally.

Type Color Channels

Code	Type	Color	Channels

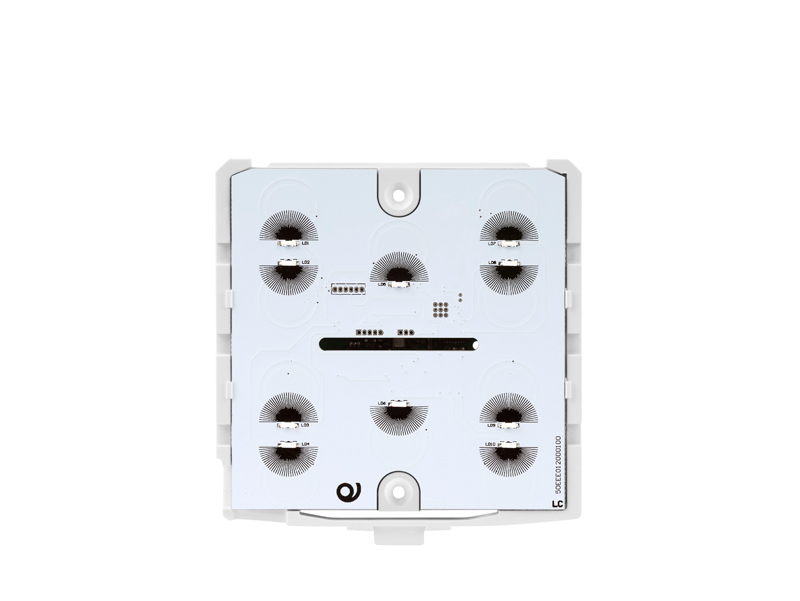

CS10A01KNX-1	HARDWARE	BIANCO	5

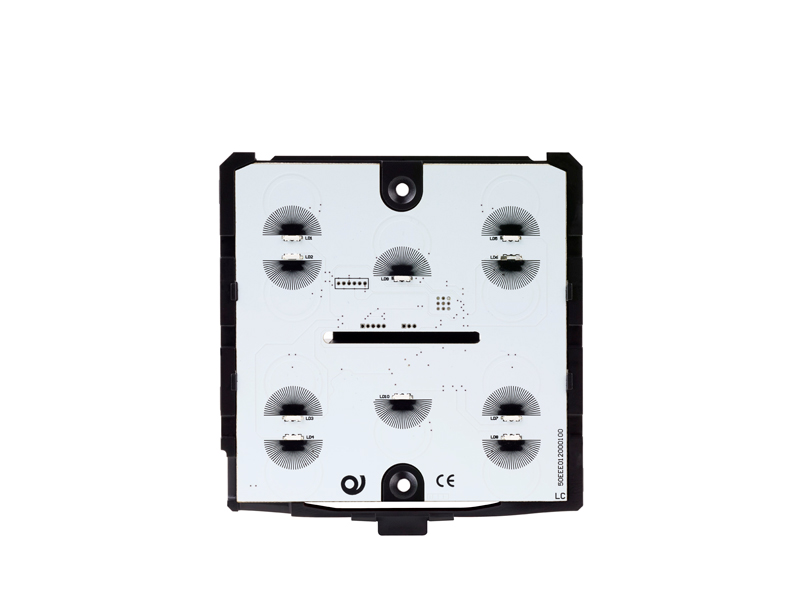

CS10A01KNX-3	HARDWARE	NERO	5
9025GL10C01-B2L	COVER	BIANCO	2-4-6-8-10
9025GL10C01-B2R	COVER	BIANCO	2-4-6-8-10
9025GL10C03-B2L	COVER	NERO	2-4-6-8-10
9025GL10C03-B2R	COVER	NERO	2-4-6-8-10
