SB40AxxKNX is a 4-channel KNX® push button that can be configured to manage on/off commands, dimmers, shutters and blinds, execution and learning of scenarios, sequences of objects.
Contact our team to get all your questions answered
The device includes a 2-stage thermostat with integrated PI controller for driving heating and cooling equipment, valves, 2-pipe and 4-pipe fan coils.
The device has a 2-way connector on the back that can be configured as a digital or analog input; in fact, it is possible to connect an NTC probe (eelectron code TS01A01ACC or TS01B01ACC – not included) to the device to obtain the temperature measurement directly. The device includes an RGB LED bar on the front side for displaying statuses or other quantities available on the KNX bus.
SB40AxxKNX can be installed on an Italian 2-module box, on a German or English box.
The device includes the KNX communication interface.
| Code | Image | Type | Color | Channels |
|---|---|---|---|---|

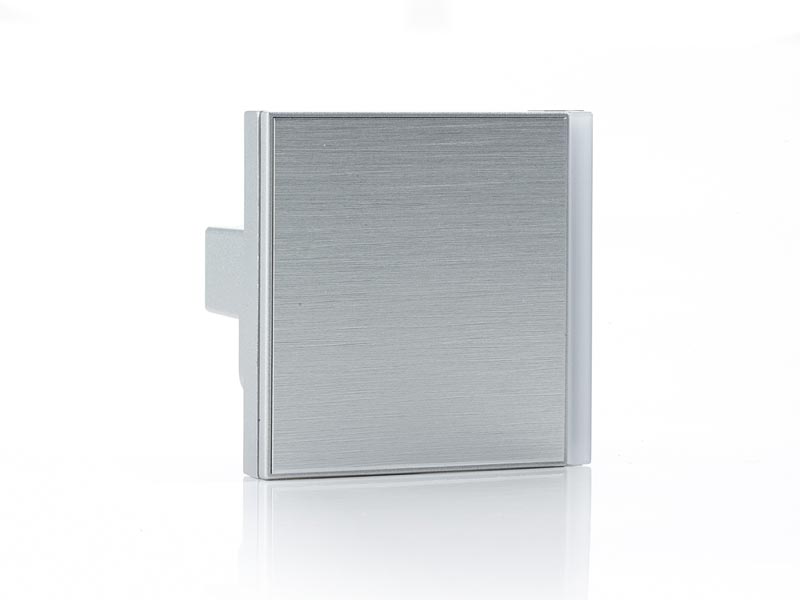

| SB40A01KNX-MT60 |
|
BUTTONS
|
CHROMO
|
- |

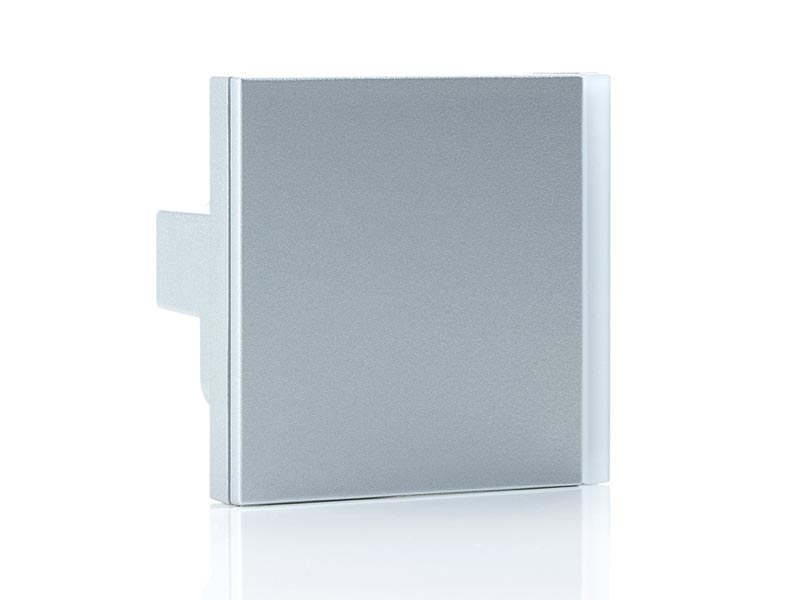

| SB40A01KNX-PLCR |
|
BUTTONS
|
CHROMO
|
- |

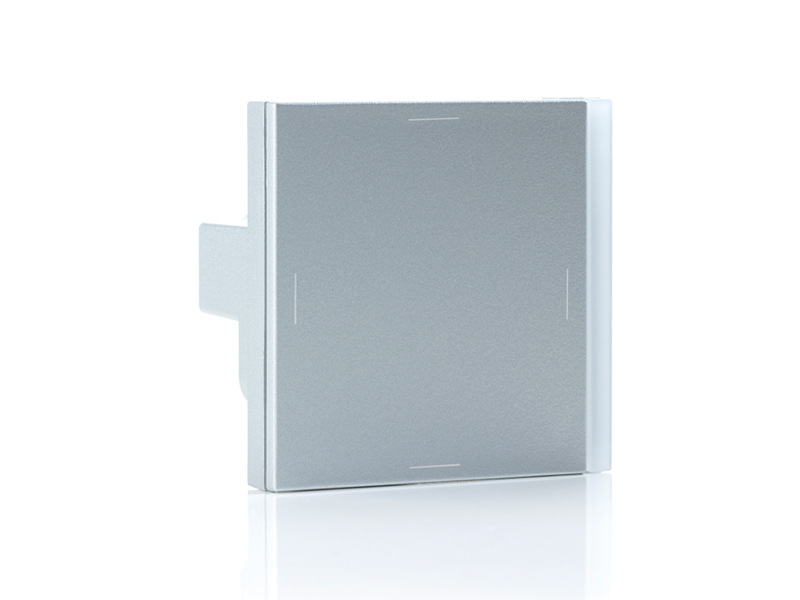

| SB40A09KNX-PLCR |
|
BUTTONS
|
CHROMO LINEMARKED
|
- |

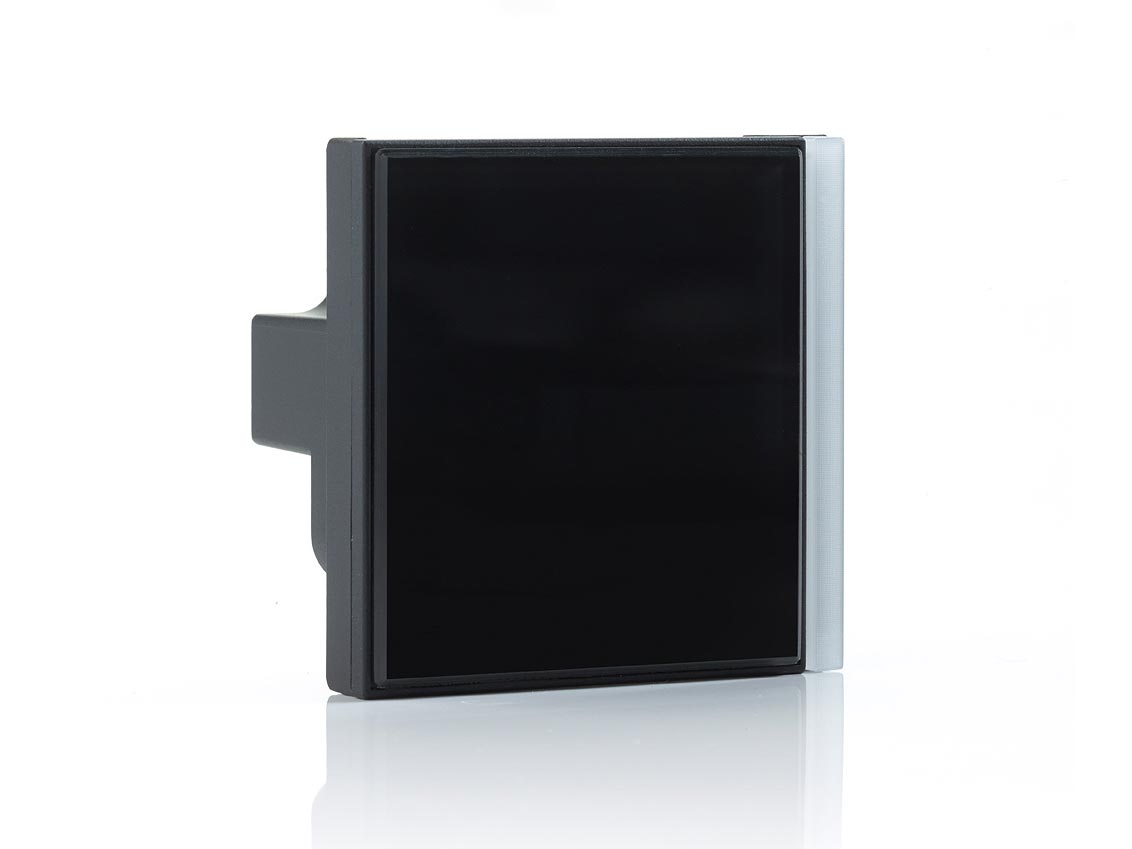

| SB40A11KNX-PLBL |
|
BUTTONS
|
BLACK
|
- |

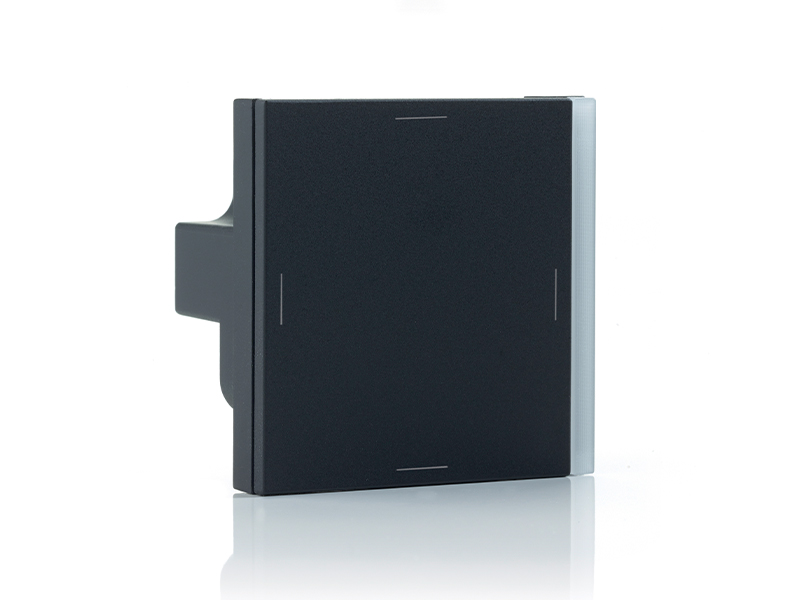

| SB40A19KNX-PLBL |
|
BUTTONS
|
BLACK LINEMARKED
|
- |

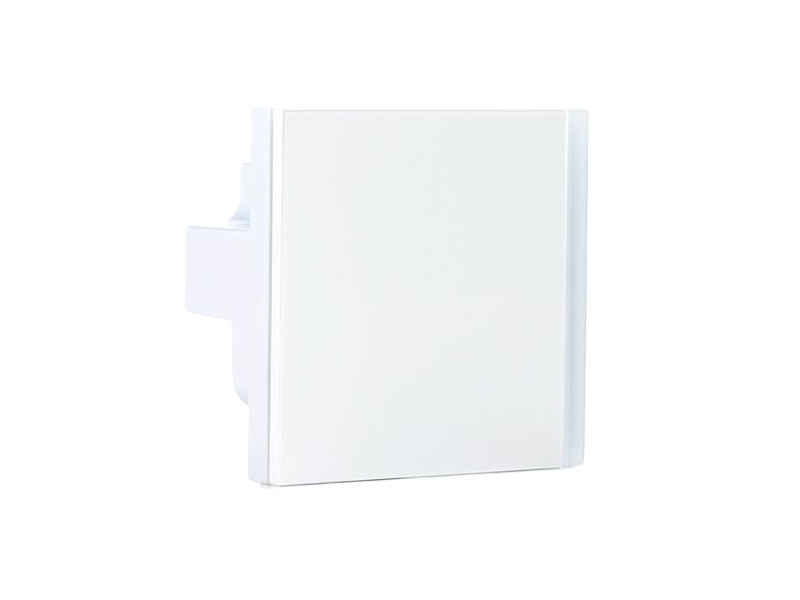

| SB40A21KNX-PLWH |
|
BUTTONS
|
WHITE
|
- |

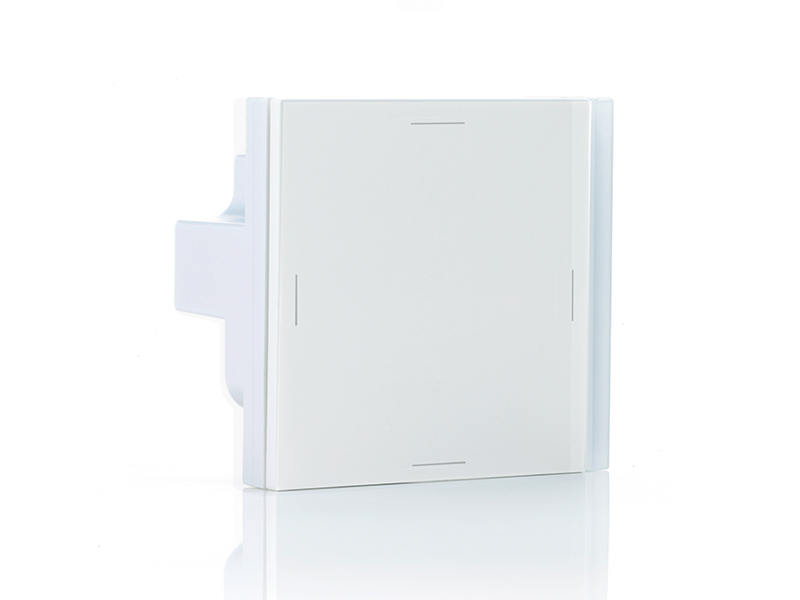

| SB40A29KNX-PLWH |
|
BUTTONS
|
WHITE LINEMARKED
|
- |
